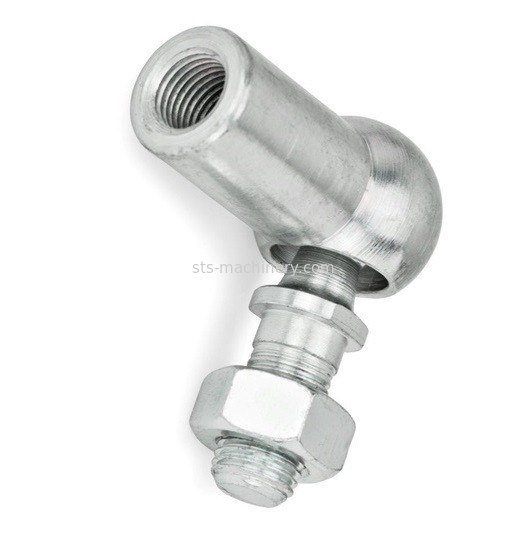

Ball Joint Bearing DIN 71802 CS8 CS10 CS13 CS16

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN 71802
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

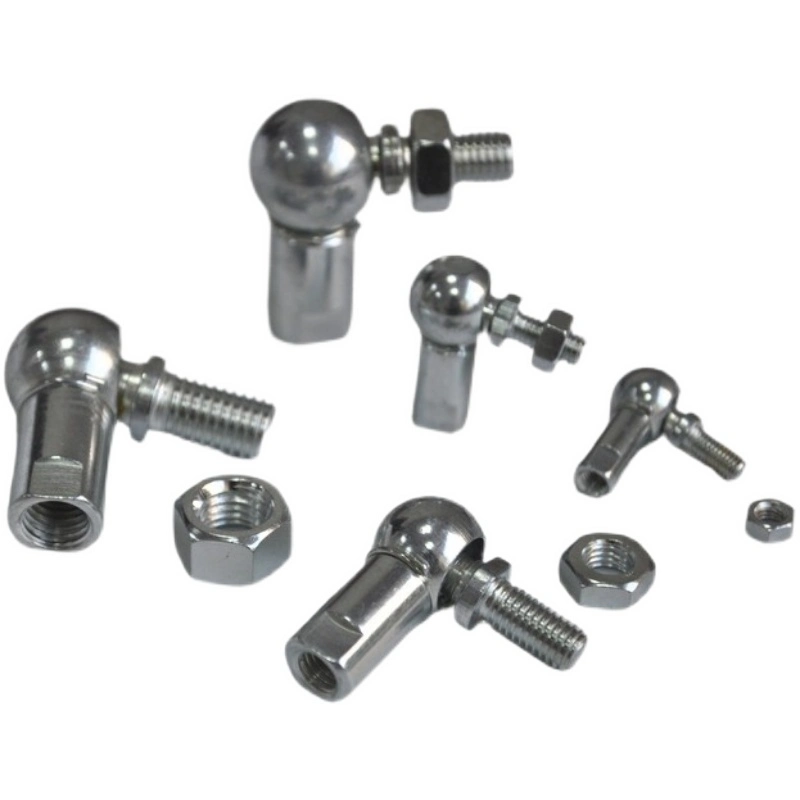

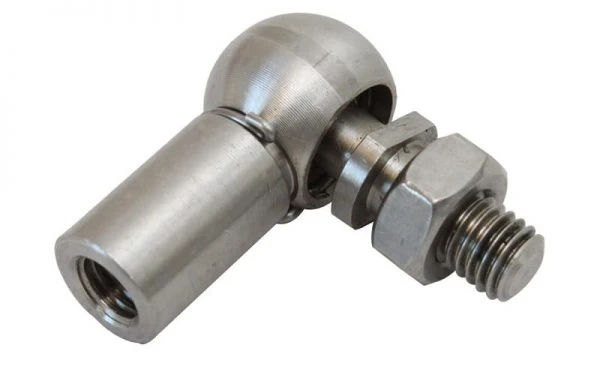

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16



Product Parameters

1.Circle swing agilely without any blocked.
2..Work on -40~120°C,excellent performance.
3..Material:
Ball Socket & Ball Stud------Carbon Steel
Circlip & Snap Ring------Spring Steel
4.Surface treatmenet:White zinc plated.
Alternative:Yellow zinc plated; Phosphatized and oiled.
5.Wrench flats on the ball socket is alternative.
6.-Ball socket may be left-hand thread,for left-hand thread suffix"L" is added to part number as thread sign,e.g.

Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16
Part NO. D1 D2 D3 D4 L1 L2 L3 T SW min.Separation Force(N)
±0.3 ±0.3 ±0.3 min. h14
CS8M5 8 M5X0.8 M5X0.8 8 22 10.2 9 10.2 7 30
CS10M6 10 M6X1 M6X1 10 25 12.5 11 11.5 8 40
CS13M8 13 M8X1.25 M8X1.25 13 30 16.5 13 14 11 60
CS16M10 16 M10X1.5 M10X1.5 16 35 20 16 15.5 13 80
CS16M12 16 M12X1.75 M12X1.75 16 35 20 16 15.5 13 80
CS19M14 19 M14X2 M14X2 22 45 28 20 21.5 16 100
CS19M14X1.5 19 M14X1.5 M14X1.5 22 45 28 20 21.5 16 100
Packaging & Shipping


Ball Joint Bearing DIN 71802  CS8 CS10 CS13 CS16




Our Advantages


1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
