Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14

Basic Information
Place of Origin: China
Certification: ISO
Model Number: DIN 71805
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

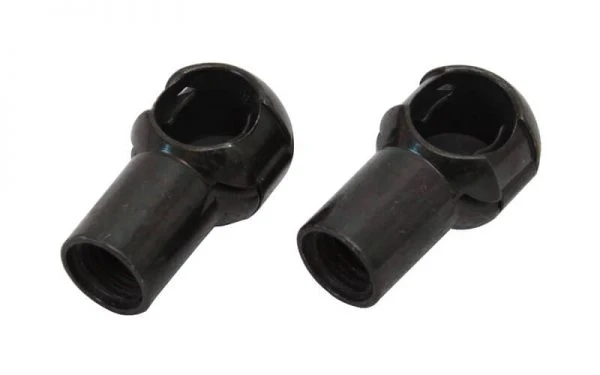

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14



Product Parameters
Material, low carbon steel.
Alternative, stainless steel 304 or 316
Surface protection, zinc plate, withe/white-blue or yellow passivated.
The manufacturer reserves the right to supply the ball socket with or without spanner surface.
left hand thread in the housing are available.
Special versions upon request.

Dimensions are in mm.
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
d1 d2 a d3 d4 e l1 l2 Weight
Kg/1000pcs for type
    ±0.3 ±0.5 ±0.5 min. max. ±0.4 A B
8 M5 22 8 12.8 10.2 15 6.3 9 8.8
10 M6 25 10 14.8 11.5 17 7 14.2 14.1
13 M8 30 13 19.3 14 20 9.1 29 28.8
16 M10 35 16 24 15.5 22 11.4 57 56.8
M12
19 M14 45 22 30 21.5 28 12.5 125 124.8
Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14
Packaging & Shipping



Ball Seats For Ball Joints DIN 71805 M5 M6 M8 M10 M12 M14




Our Advantages


1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
