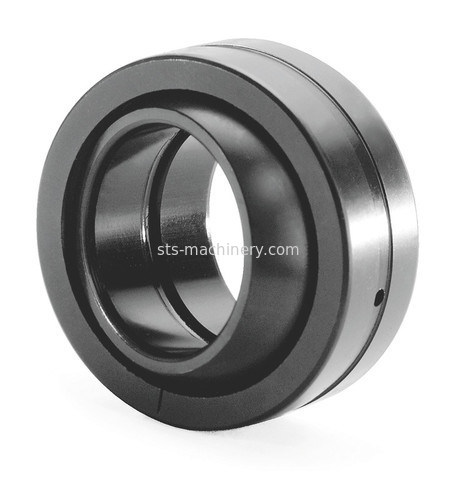

Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GEZ...FO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills



Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)
Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)
Product Parameters

Technical specification

GEZ…FO:As series GE…FO,but with inch dimensions.

Here is the comparison between each standard organization:

ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Heavy duty, good wearability, corrosion resistance, self-alignment.
Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)



Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)

Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D B C dk r1
min
r2
min
α C Co kg
GEZ 31 FO 31.750 61.913 35.306 28.575 54.7 0.6 1 15 125 375 0.454
GEZ 38 FO 38.100 71.438 40.132 33.325 63.9 0.6 1 14 170 510 0.726
GEZ 44 FO 44.450 80.963 46.228 38.100 73.0 0.6 1 14 224 670 1.140
GEZ 50 FO 50.800 90.488 52.578 42.850 82.0 0.6 1 14 280 850 1.680
GEZ 57 FO 57.150 100.013 58.877 47.625 92.0 0.6 1 14 355 1060 2.010
GEZ 63 FO 63.500 111.125 64.643 52.375 100.0 1.0 1 14 415 1250 2.950
GEZ 69 FO 69.850 120.650 70.866 57.150 109.5 1.0 1 14 500 1500 3.630
GEZ 76 FO 76.200 130.175 76.759 61.900 119.0 1.0 1 14 585 1760 4.360
GEZ 82 FO 82.550 139.700 82.931 66.675 128.0 1.0 1 14 680 2040 5.310
GEZ 88 FO 88.900 149.225 90.424 71.425 137.0 1.0 1 14 780 2360 6.810
GEZ 95 FO 95.250 158.750 94.945 76.200 146.0 1.0 1 14 900 2650 8.850
GEZ 101 FO 101.600 177.800 107.315 85.725 164.5 1.0 1 10 1120 3400 10.200
GEZ 114 FO 114.300 196.850 119.126 95.250 183.0 1.0 1 10 1400 4150 13.600
GEZ 139 FO 139.700 222.250 125.730 104.775 207.0 1.0 1 9 1730 5200 20.400
Packaging & Shipping



Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO GEZ76FO GEZ82FO GEZ88FO GEZ95FO GEZ101FO)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
