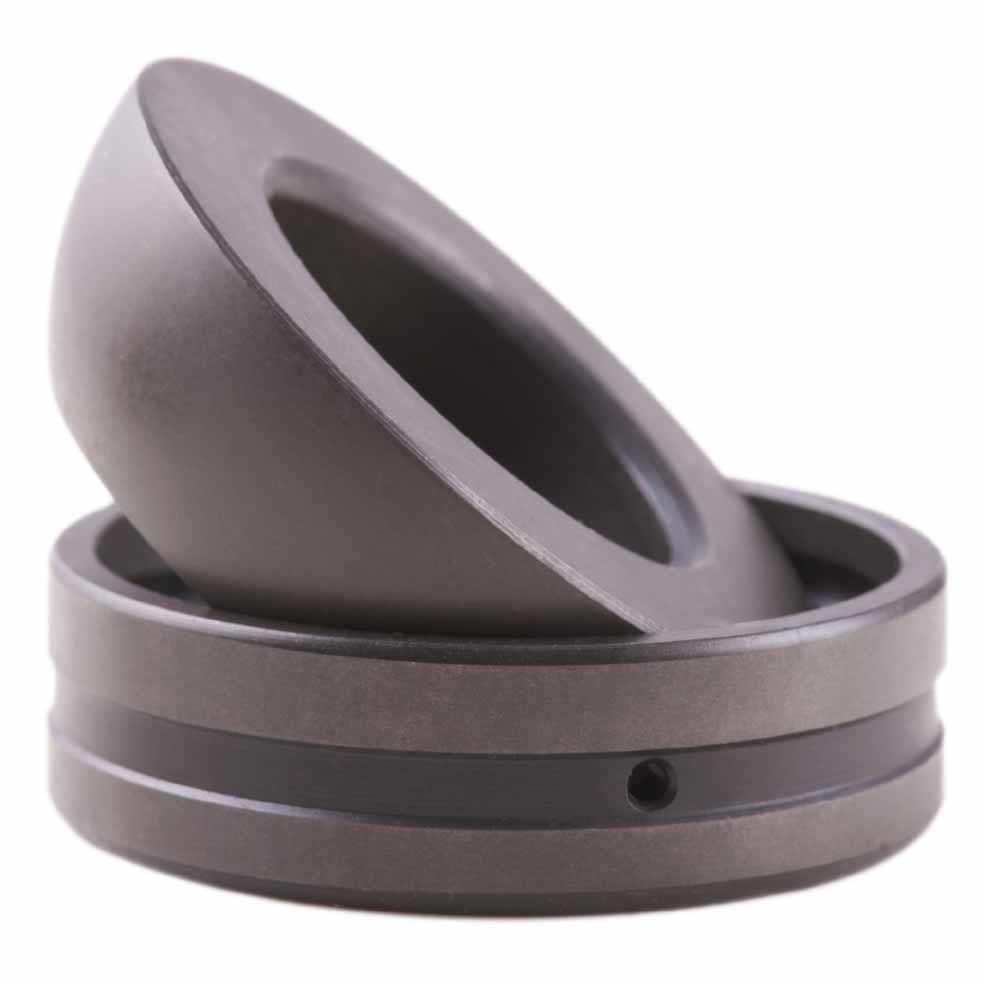

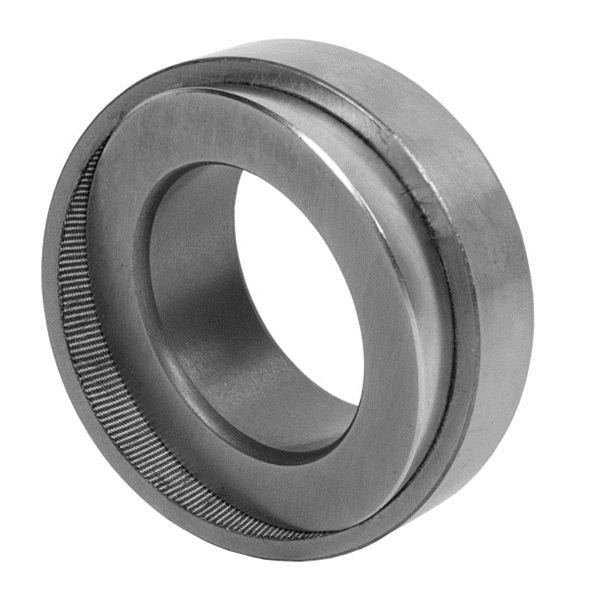

Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GAC
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )
Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )
Product Parameters

Technical specification

Inch Size Angular Contact Spherical Plain Bearings GACZ..S,same characteristics with GAC..S.

Here is the comparison between each standard organization:

ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.
Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )

Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )
Bearing No. Dimensions (mm) Mass
d D T B C dK kg
GACZ12S 12.7 22.225 6.86 4.83 7.62 18.26 0.013
GACZ15S 15.875 26.988 8.64 6.35 9.4 22.83 0.025
GACZ19S 19.05 31.75 10.41 7.87 11.18 27.43 0.038
GACZ22S 22.225 36.512 12.19 9.65 13.21 31.95 0.049
GACZ25S 25.4 41.275 13.97 11.18 15.24 36.5 0.085
GACZ31S 31.75 50.8 17.78 13.97 18.8 45.59 0.159
GACZ34S 34.925 55.562 19.56 15.24 21.34 49.2 0.213
GACZ38S 38.1 61.912 21.34 16.76 23.11 54.75 0.301
GACZ44S 44.45 71.438 24.89 20.07 27.18 63.88 0.458
GACZ50S 50.8 80.962 28.7 13.37 31.24 73.02 0.671
GACZ57S 57.15 90.488 32.26 26.67 35.31 82.17 0.948
GACZ63S 63.5 100.013 36.07 29.97 39.12 91.19 1.13
GACZ69S 69.85 111.125 39.62 32.38 43.18 100.33 1.75
GACZ76S 76.2 120.65 43.43 35.69 47.24 109.52 2.28
GACZ82S 82.55 130.175 47.24 39.24 51.56 118.74 2.89
GACZ88S 88.9 139.7 50.8 42.54 55.37 128.02 3.57
GACZ95S 95.25 149.225 54.61 45.85 59.44 136.91 4.35
GACZ101S 101.6 158.75 58.42 49.15 63.5 146.05 5.26
GACZ114S 114.3 177.8 65.79 55.75 71.12 164.46 7.76
GACZ127S 127 196.85 73.15 62.36 79.5 182.63 11.07
GACZ152S 152.4 222.25 78.74 66.42 85.72 207.16 17.3
Packaging & Shipping



Inch Size Angular Contact Spherical Plain Bearings(GACZ76S GACZ82S GACZ88S GACZ95S GACZ101S GACZ114S GACZ127S GACZ152S )

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
