Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GEG...N
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills

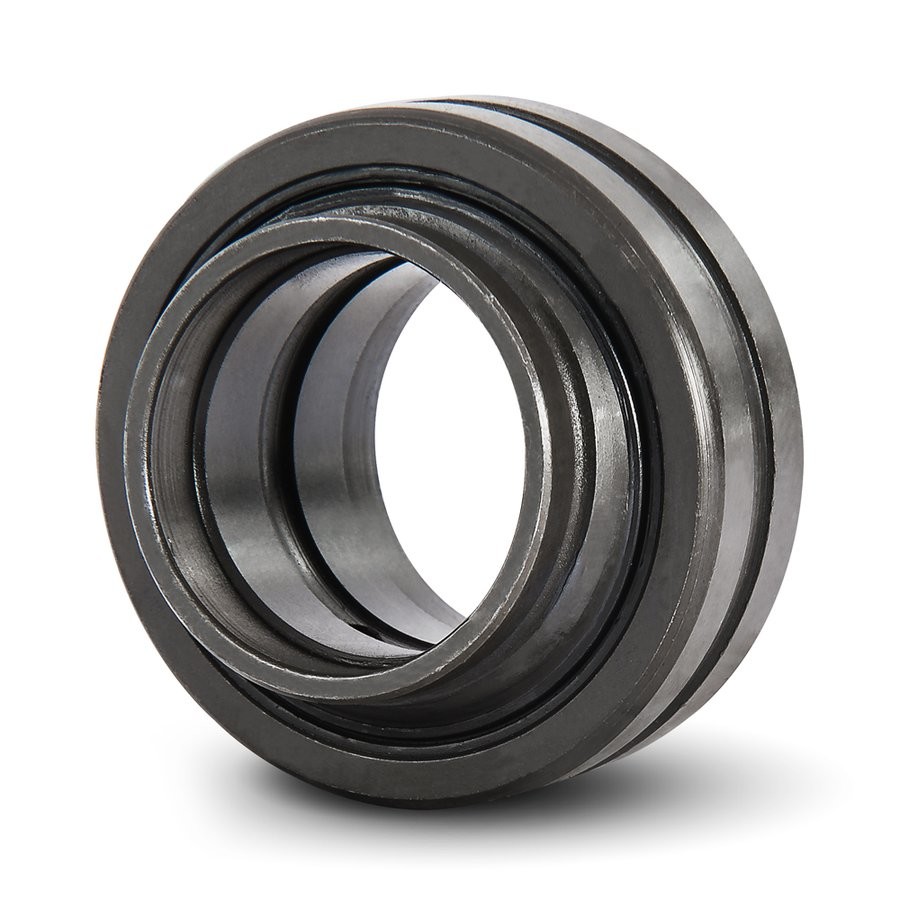

Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )

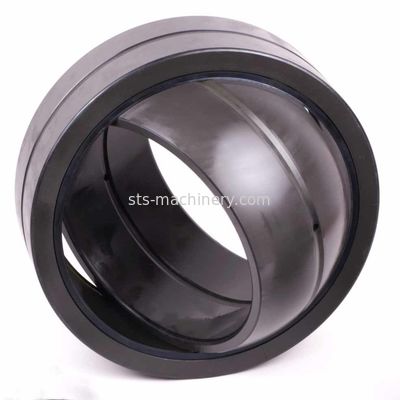

Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications
--Outer ring: 52100 bearing steel,hardened and ground,lined with PTFE plastic
-- Liner: PTFE plastic
--Ball: 52100 bearing steel,hardened and ground,harde chromium plated
--Temperature Range: -40°C to +75°C
--ELV & RoHS compliant
Same dimension of GE series
Sliding contact surface: Hard chromium/PTFE plastic





Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )
Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )
Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )


Bearing No. Dimensions (mm) Mass
d D B C dk kg
GE 10 N 10 19 9 6 16 0.011
GE 12 N 12 22 10 7 18 0.016
GE 15 N 15 26 12 9 22 0.026
GE 17 N 17 30 14 10 25 0.043
GE 20 N 20 35 16 12 29 0.061
GE 25 N 25 42 20 16 35.5 0.11
GE 30 N 30 47 22 18 40.7 0.14
GE 35 N 35 55 25 20 47 0.22
GE 40 N 40 62 28 22 53 0.3
GE 45 N 45 68 32 25 60 0.41
GE 50 N 50 75 35 28 66 0.53
GE 60 N 60 90 44 36 80 1

GEG 8 N 8 19 11 6 16 0.014
GEG10 N 10 22 12 7 18 0.02
GEG 12 N 12 26 15 9 22 0.034
GEG 15 N 15 30 16 10 25 0.046
GEG 17 N 17 35 20 12 29 0.077
GEG 20 N 20 42 25 16 35.5 0.15
GEG 25 N 25 47 28 18 40.7 0.19
GEG 30 N 30 55 32 20 47 0.29
GEG 35 N 35 62 35 22 53 0.38
GEG 40 N 40 68 40 25 60 0.54
GEG 45 N 45 75 43 28 66 0.68
GEG 50 N 50 90 56 36 80 1.14
Packaging & Shipping



Steel On PTFE Plastic Material Spherical Plain Bearing(GEG10N GEG12N GEG15N GEG17N GEG20N GEG25N GEG30N GEG35N GEG40N GEG45N GEG50N )

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
