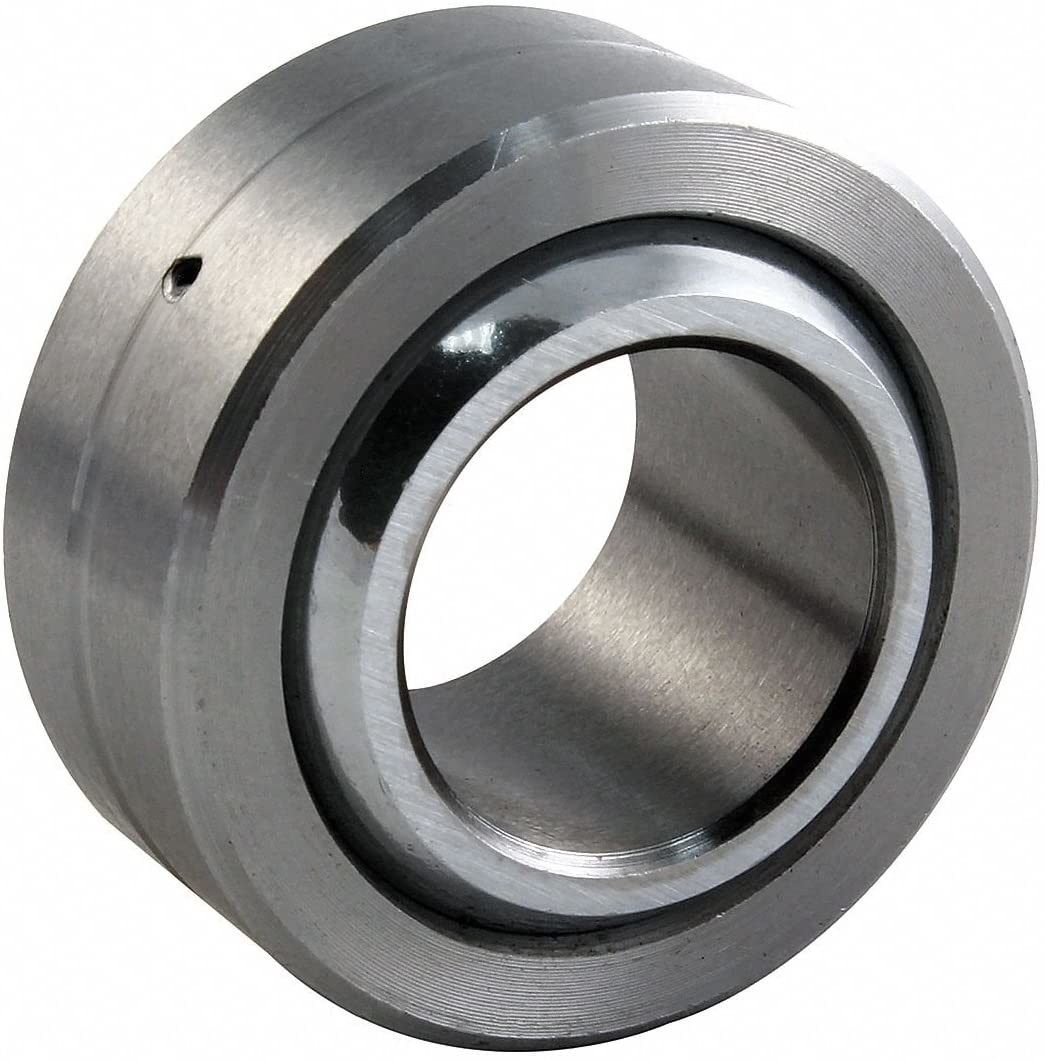

Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SCOM...T
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )
Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Material: both inside and outside the circle of stainless steel.
2) Inner quenching, heat treatment.
3) Structure of products: extrusion; no oil groove oil hole.
4)Both inside and outside the circle of the middle layer of PTFE sintered copper network.
5)Performance characteristic:with corrosion resistance, self lubrication, self-aligning features, suitable for low speed, heavy load, moisture-proof anticorrosive mechanism.
Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )


Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )
Bearing No. Dimensions(mm) Mass
d D B C dK kg
SCOM3T 4.826 14.29 7.14 5.54 10.31 0.006
SCOM4T 6.35 16.67 8.71 6.35 12.7 0.01
SCOM5T 7.938 19.05 9.53 7.14 14.27 0.014
SCOM6T 9.525 20.64 10.31 7.92 16.66 0.017
SCOM7T 11.113 23.02 11.1 8.71 17.45 0.021
SCOM8T 12.7 25.4 12.7 9.91 20.65 0.029
SCOM9T 14.288 27.78 14.27 11.1 23.01 0.039
SCOM10T 15.875 30.16 15.88 12.7 25.4 0.05
SCOM12T 19.05 36.51 19.05 15.06 30.15 0.093
SCOM14T 22.225 39.69 22.23 17.86 33.32 0.119
SCOM16T 25.4 44.45 25.4 20.24 38.1 0.175
Packaging & Shipping



Stainless Steel Spherical Plain Bearings, Maintenance Free( SCOM3T SCOM4T SCOM5T SCOM6T SCOM7T SCOM8T SCOM9T SCOM10T SCOM12T SCOM14T SCOM16T )

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
