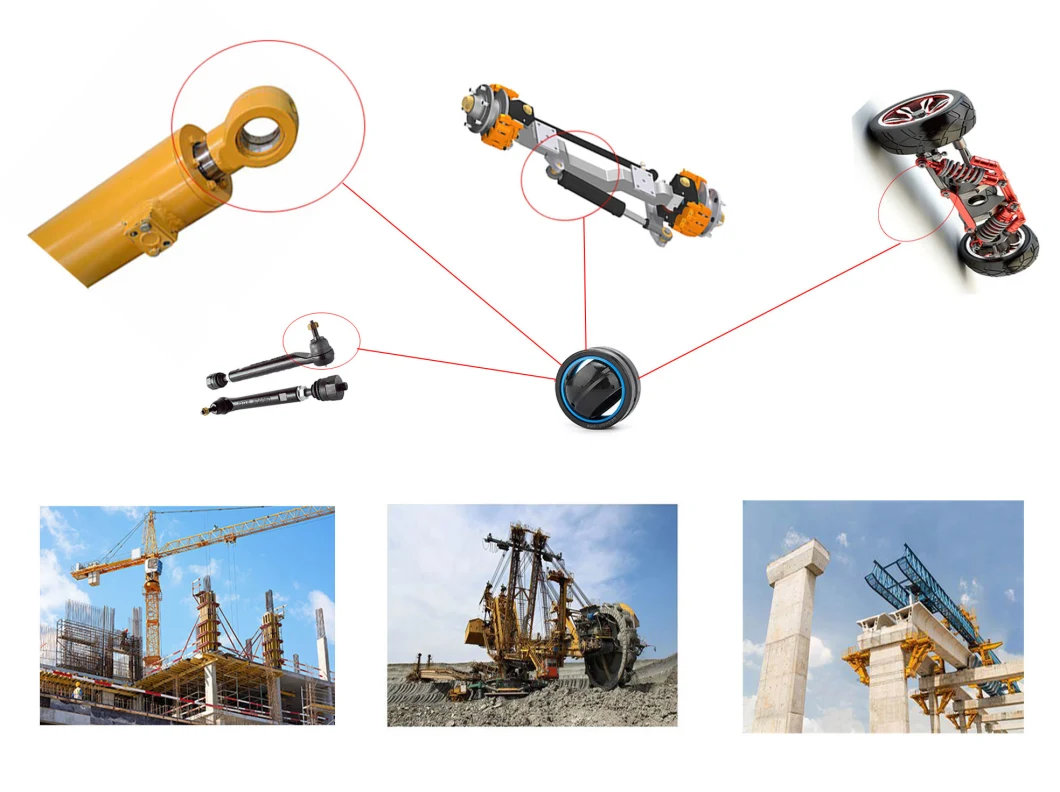

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
Technical specification
Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* | DIN 620* | ISO 492* |
ABEC 1 | P0 | Class Normal |
ABEC 3 | P6 | Class 6 |
ABEC 5 | P5 | Class 5 |
ABEC 7 | P4 | Class 4 |
ABEC 9 | P2 | Class 2 |
Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||
d | D | B | C | dk | r1 min | r2 min | α | C | Co | kg | |
GEF 20 ES 2RS | 20 | 32 | 16 | 14 | 28 | 0.5 | 0.5 | 4 | 33 | 166 | 0.053 |
GEF 22 ES 2RS | 22 | 37 | 19 | 16 | 32 | 0.5 | 0.5 | 6 | 43 | 217 | 0.085 |
GEF 25 ES 2RS | 25 | 42 | 21 | 18 | 36 | 0.5 | 0.5 | 5 | 55 | 275 | 0.116 |
GEF 30 ES 2RS | 30 | 50 | 27 | 23 | 45 | 1.0 | 1.0 | 6 | 87 | 439 | 0.225 |
GEF 35 ES 2RS | 35 | 55 | 30 | 26 | 50 | 1.0 | 1.0 | 5 | 110 | 552 | 0.302 |
GEF 40 ES 2RS | 40 | 62 | 33 | 28 | 55 | 1.0 | 1.0 | 6 | 130 | 654 | 0.375 |
GEF 45 ES 2RS | 45 | 72 | 36 | 31 | 62 | 1.0 | 1.0 | 5 | 163 | 816 | 0.598 |
GEF 50 ES 2RS | 50 | 80 | 42 | 36 | 72 | 1.0 | 1.0 | 5 | 220 | 1100 | 0.869 |
GEF 55 ES 2RS | 55 | 90 | 47 | 40 | 80 | 1.0 | 1.0 | 6 | 272 | 1360 | 1.260 |
GEF 60 ES 2RS | 60 | 100 | 53 | 45 | 90 | 1.0 | 1.0 | 6 | 344 | 1720 | 1.720 |
GEF 65 ES 2RS | 65 | 105 | 55 | 47 | 94 | 1.0 | 1.0 | 5 | 375 | 1870 | 2.050 |
GEF 70 ES 2RS | 70 | 110 | 58 | 50 | 100 | 1.0 | 1.0 | 5 | 425 | 2125 | 2.230 |
GEF 75 ES 2RS | 75 | 120 | 64 | 55 | 110 | 1.0 | 1.0 | 5 | 510 | 2570 | 3.010 |
GEF 80 ES 2RS | 80 | 130 | 70 | 60 | 120 | 1.0 | 1.0 | 5 | 610 | 3060 | 3.980 |
GEF 85 ES 2RS | 85 | 135 | 74 | 63 | 125 | 1.0 | 1.0 | 6 | 669 | 3340 | 4.310 |
GEF 90 ES 2RS | 90 | 140 | 76 | 65 | 130 | 1.0 | 1.0 | 5 | 718 | 3590 | 4.720 |
GEF 95 ES 2RS | 95 | 150 | 82 | 70 | 140 | 1.0 | 1.0 | 5 | 833 | 4165 | 6.050 |
GEF 100 ES 2RS | 100 | 160 | 88 | 75 | 150 | 1.5 | 1.5 | 5 | 956 | 4780 | 7.430 |
GEF 110 ES 2RS | 110 | 170 | 93 | 80 | 160 | 1.5 | 1.5 | 5 | 1080 | 5440 | 8.540 |
GEF 115 ES 2RS | 115 | 180 | 98 | 85 | 165 | 1.5 | 1.5 | 5 | 1190 | 5960 | 10.300 |
GEF 120 ES 2RS | 120 | 190 | 105 | 90 | 175 | 1.5 | 1.5 | 6 | 1330 | 6690 | 12.400 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
