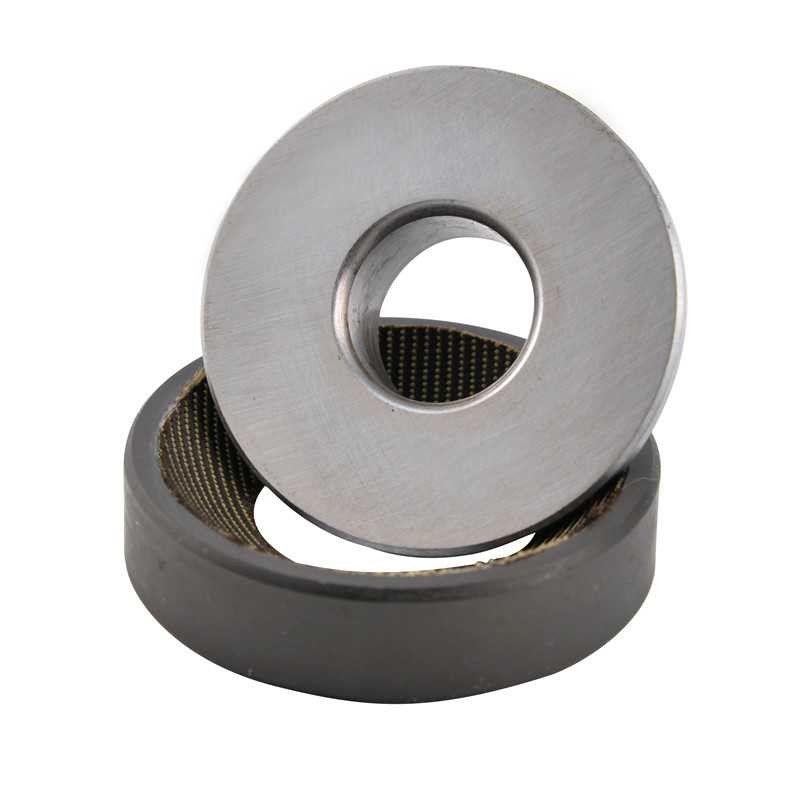

GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GX...T / GE...AW
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

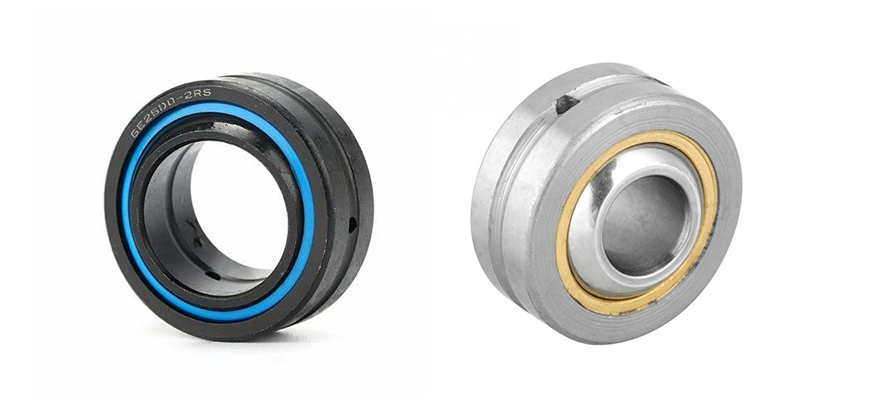

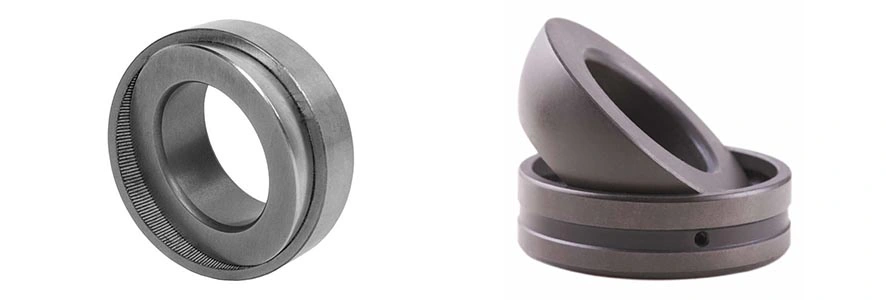

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings

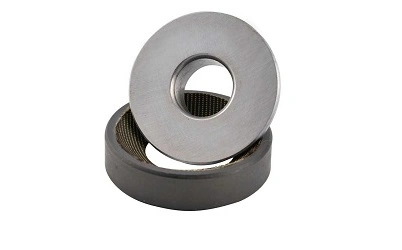

  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

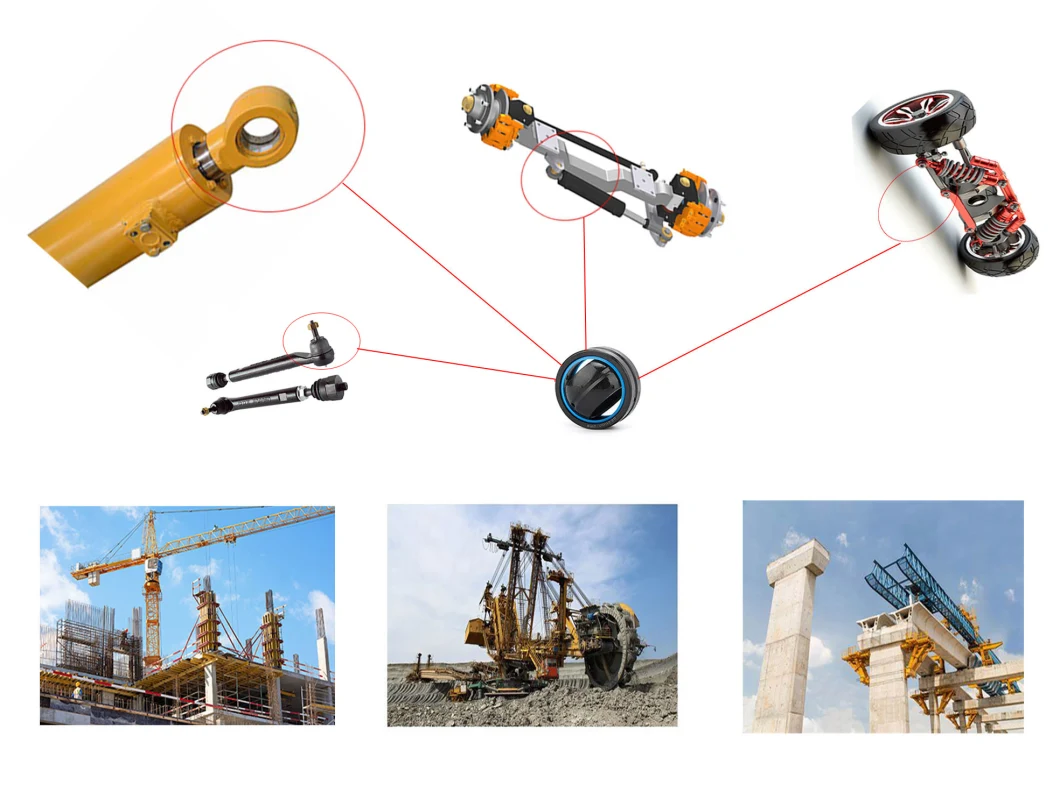

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )
GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. PTFE fabric.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), outer race surfaces are phosphorized, inner race surfaces are plated with chrome.
4) Features of structure: Without oil groove or oil hole.Sticked with a piece of PTFE fabric on inner surface of outer race.
5) Properties: Good wearability, low friction, corrosion resistance, self-alignment.
GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )


GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )

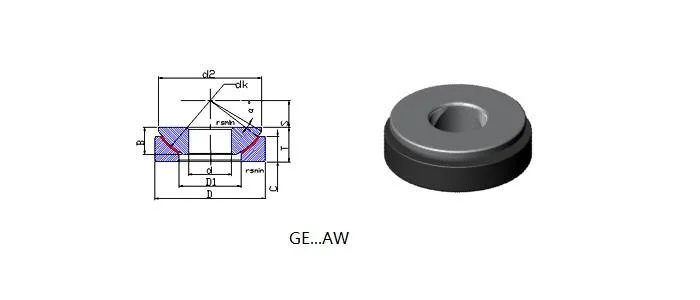

Bearing No. Dimensions (mm) Mass
d D T B C dK kg
GE10AW 10 30 9.5 7.9 6 32 0.04
GE12AW 12 35 13 9.3 9 37 0.07
GE15AW 15 42 15 10.7 11 45 0.12
GE17AW 17 47 16 11.5 11.5 50 0.16
GE20AW 20 55 20 14.3 13 60 0.25
GE25AW 25 62 22.5 16 17 66 0.38
GE30AW 30 75 26 18 19.5 80 0.65
GE35AW 35 90 28 22 20 98 1
GE40AW 40 105 32 27 22 114 1.6
GE45AW 45 120 36.5 31 25 130 2.4
GE50AW 50 130 42.5 33.5 32 140 3.3
GE60AW 60 150 45 37 33 160 4.5
GE70AW 70 160 50 40 36 170 5.5
GE80AW 80 180 50 42 36 194 7
GE100AW 100 210 59 50 42 220 10.5
GE120AW 120 230 64 52 45 245 13
GE140AW 140 260 72 61 50 272 18
GE160AW 160 290 77 65 52 310 23
GE180AW 180 320 86 70 60 335 31
GE200AW 200 340 87 74 60 358 34
GE220AW 220 370 97 82 67 388 44.5
GE240AW 240 400 103 87 73 420 55
GE260AW 260 430 115 95 80 449 69
GE280AW 280 460 110 100 85 480 82
GE300AW 300 480 110 100 90 490 87
GE320AW 320 520 116 105 91 540 109
GE340AW 340 540 116 105 91 550 114
GE360AW 360 560 125 115 95 575 129
Packaging & Shipping



GX...T / GE...AW Maintenance Free Thrust Spherical Plain Bearing(GE220AW GE240AW GE260AW GE280AW GE300AW GE320AW GE340AW GE360AW )

Our Advantages

1. We have over 10 years' experience.

2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
