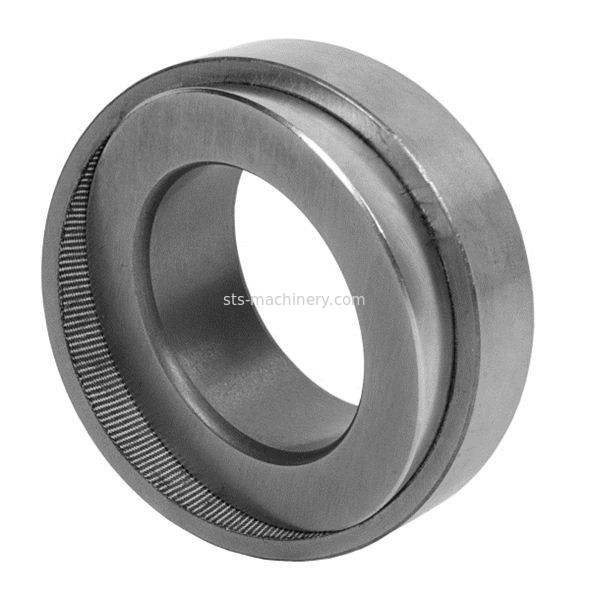

Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GAC...T
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

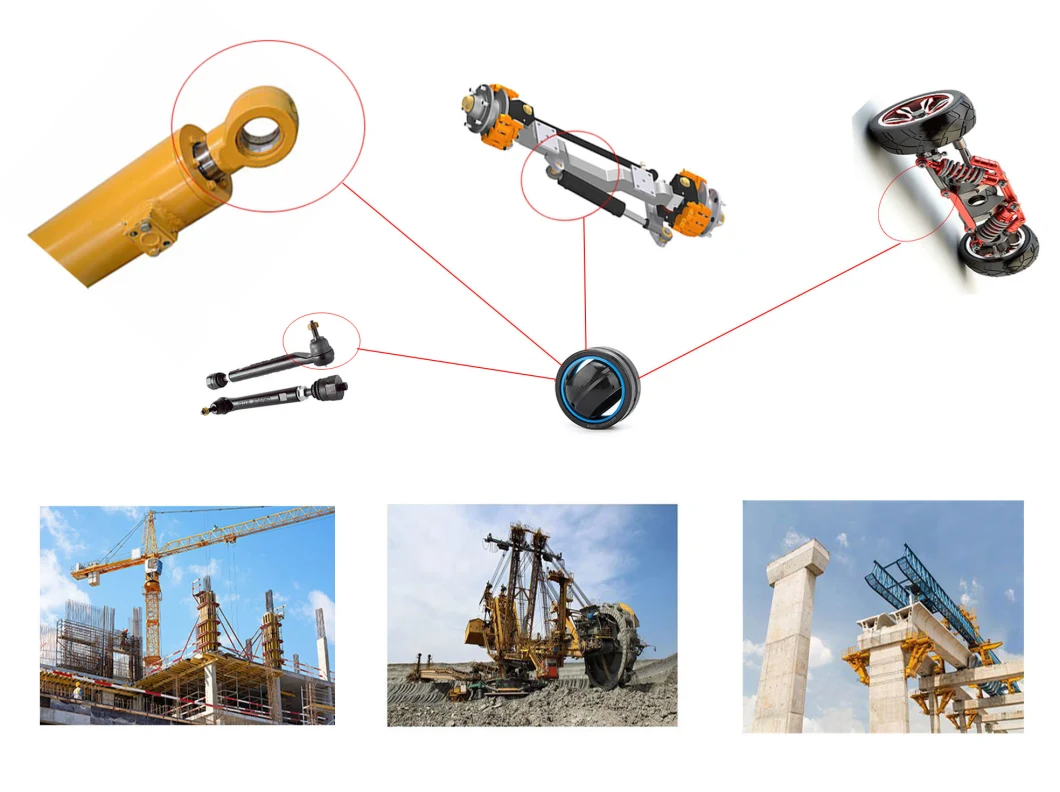

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)
Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. PTFE fabric.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), outer race surfaces are phosphorized, inner race surfaces are plated with chrome.
4) Features of structure: Without oil groove or oil hole.Sticked with a piece of PTFE fabric on inner surface of outer race.
5) Properties: Good wearability, low friction, corrosion resistance, self-alignment.
Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)



Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)

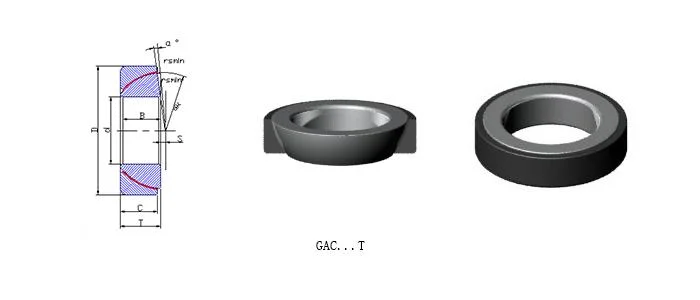

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C T dk S rs
min
α C Co kg
GAC 25 T 25 47 15 14.0 15 42.0 0.6 1.0 2.5 75 149 0.148
GAC 28 T 28 52 16 15.0 16 47.0 1.0 1.0 2.0 90 179 0.186
GAC 30 T 30 55 17 15.0 17 49.5 1.3 1.0 4.5 95 188 0.208
GAC 32 T 32 58 17 16.0 17 52.0 2.0 1.0 2.0 106 211 0.241
GAC 35 T 35 62 18 16.0 18 55.5 2.1 1.0 4.0 117 234 0.268
GAC 40 T 40 68 19 17.0 19 62.0 2.8 1.0 3.5 139 277 0.327
GAC 45 T 45 75 20 18.0 20 68.5 3.5 1.0 3.0 162 324 0.416
GAC 50 T 50 80 20 19.0 20 74.0 4.3 1.0 1.5 185 370 0.455
GAC 55 T 55 90 23 20.0 23 82.0 5.0 1.1 4.0 216 432 0.645
GAC 60 T 60 95 23 21.0 23 88.5 5.7 1.1 2.5 245 489 0.714
GAC 65 T 65 100 23 22.0 23 93.5 6.5 1.1 1.0 271 542 0.759
GAC 70 T 70 110 25 23.0 25 102.0 7.2 1.1 2.0 309 618 1.040
GAC 75 T 75 115 25 24.0 25 107.0 7.9 1.1 1.0 339 676 1.120
GAC 80 T 80 125 29 25.5 29 115.0 8.6 1.1 3.5 387 772 1.540
GAC 85 T 85 130 29 26.5 29 122.0 9.4 1.1 2.0 426 851 1.610
GAC 90 T 90 140 32 28.0 32 128.5 10.1 1.5 3.5 474 948 2.090
GAC 95 T 95 145 32 29.5 32 135.0 10.8 1.5 2.0 525 1049 2.220
GAC 100 T 100 150 32 31.0 32 141.0 11.6 1.5 0.5 577 1151 2.340
GAC 105 T 105 160 35 32.5 35 148.0 12.3 2.0 2.0 634 1267 2.930
GAC 110 T 110 170 38 34.0 38 155.0 13.0 2.0 3.0 695 1380 3.680
GAC 120 T 120 180 38 37.0 38 168.0 14.5 2.0 0.5 820 1630 3.970
Packaging & Shipping



Maintenance-free Angular Contact Spherical Plain Bearings (GAC25T GAC28T GAC30T GAC32T GAC35T GAC40T GAC45T GAC50T GAC55T GAC60T GAC65T)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
