GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GEF...ES
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills

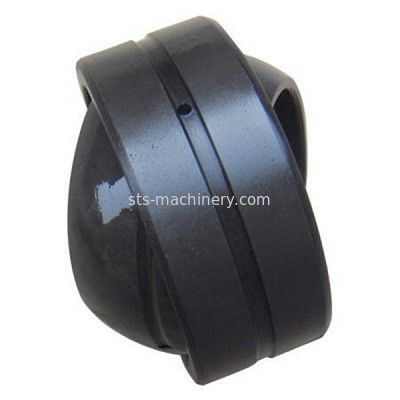

GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)

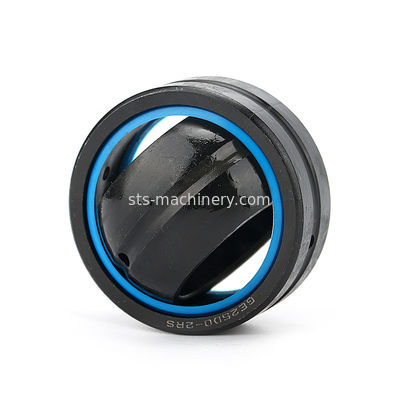

GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil hole, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.
GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)


GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)

Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D B C dk r1
min
r2
min
α C Co kg
GEF 12 ES 12 22 11 9 18 0.5 0.5 7 13 68 0.019
GEF 15 ES 15 26 13 11 22 0.5 0.5 6 20 105 0.028
GEF 20 ES 20 32 16 14 28 0.5 0.5 4 33 166 0.053
GEF 22 ES 22 37 19 16 32 0.5 0.5 6 43 217 0.085
GEF 25 ES 25 42 21 18 36 0.5 0.5 5 55 275 0.116
GEF 30 ES 30 50 27 23 45 1.0 1.0 6 87 439 0.225
GEF 35 ES 35 55 30 26 50 1.0 1.0 5 110 552 0.302
GEF 40 ES 40 62 33 28 55 1.0 1.0 6 130 654 0.375
GEF 45 ES 45 72 36 31 62 1.0 1.0 5 163 816 0.598
GEF 50 ES 50 80 42 36 72 1.0 1.0 5 220 1100 0.869
GEF 55 ES 55 90 47 40 80 1.0 1.0 6 272 1360 1.260
GEF 60 ES 60 100 53 45 90 1.0 1.0 6 344 1720 1.720
GEF 65 ES 65 105 55 47 94 1.0 1.0 5 375 1870 2.050
GEF 70 ES 70 110 58 50 100 1.0 1.0 5 425 2125 2.230
GEF 75 ES 75 120 64 55 110 1.0 1.0 5 510 2570 3.010
GEF 80 ES 80 130 70 60 120 1.0 1.0 5 610 3060 3.980
GEF 85 ES 85 135 74 63 125 1.0 1.0 6 669 3340 4.310
GEF 90 ES 90 140 76 65 130 1.0 1.0 5 718 3590 4.720
GEF 95 ES 95 150 82 70 140 1.0 1.0 5 833 4165 6.050
GEF 100 ES 100 160 88 75 150 1.5 1.5 5 956 4780 7.430
GEF 110 ES 110 170 93 80 160 1.5 1.5 5 1080 5440 8.540
GEF 115 ES 115 180 98 85 165 1.5 1.5 5 1190 5960 10.300
GEF 120 ES 120 190 105 90 175 1.5 1.5 6 1330 6690 12.400
Packaging & Shipping



GEF...EF Series Radial Spherical Plain Bearings (GEF12ES GEF15ES GEF20ES GEF22ES GEF25ES GEF30 ES GEF35ES GEF40ES GEF45ES GEF50ES GEF55ES)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
