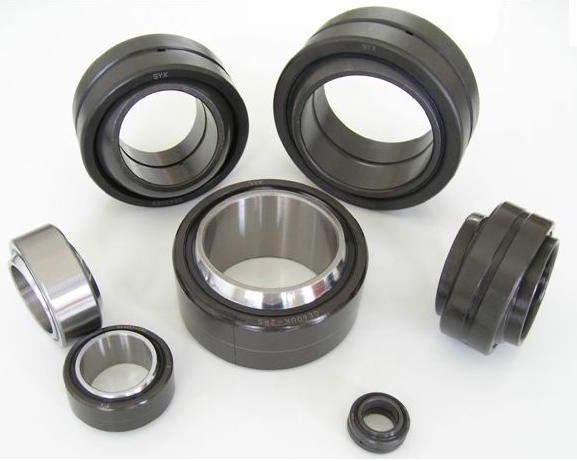

Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS )

Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS )
Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS ) Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS ) Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS ) Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS )
Basic Information
Place of Origin: China
Certification: ISO
Model Number: GEZ..ES2RS
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal
Contact Now

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS GEZ95ES 2RS GEZ101ES 2RS GEZ107ES 2RS GEZ114ES 2RS)
Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS GEZ95ES 2RS GEZ101ES 2RS GEZ107ES 2RS GEZ114ES 2RS)Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS GEZ95ES 2RS GEZ101ES 2RS GEZ107ES 2RS GEZ114ES 2RS)
Product Parameters

Technical specification

GEZ…ES-2RS:As series GE…ES-2RS,but with inch dimensions.

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.
Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS GEZ95ES 2RS GEZ101ES 2RS GEZ107ES 2RS GEZ114ES 2RS)


Inch Size GEZ..ES2RS Series Radial Spherical Plain Bearings (GEZ69ES 2RS GEZ76ES 2RS GEZ82ES 2RS GEZ88ES 2RS GEZ95ES 2RS GEZ101ES 2RS GEZ107ES 2RS GEZ114ES 2RS)

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C dk r1
min		 r2
min		 α C C0 kg
GEZ 19 ES 2RS 19.050 31.750 16.662 14.275 27.5 0.3 0.6 6 31 95 0.053
GEZ 22 ES 2RS 22.225 36.513 19.431 16.662 32.0 0.3 0.6 6 42 127 0.085
GEZ 25 ES 2RS 25.400 41.275 22.225 19.050 36.5 0.3 0.6 6 56 166 0.121
GEZ 31 ES 2RS 31.750 50.800 27.762 23.800 45.5 0.6 0.6 6 86 260 0.230
GEZ 34 ES 2RS 34.925 55.563 30.150 26.187 49.0 0.6 1.0 6 102 310 0.350
GEZ 38 ES 2RS 38.100 61.913 33.325 28.575 54.7 0.6 1.0 6 125 375 0.420
GEZ 44 ES 2RS 44.450 71.438 38.887 33.325 63.9 0.6 1.0 6 170 510 0.640
GEZ 50 ES 2RS 50.800 80.963 44.450 38.100 73.0 0.6 1.0 6 224 670 0.930
GEZ 57 ES 2RS 57.150 90.488 50.013 42.850 82.0 0.6 1.0 6 280 850 1.300
GEZ 63 ES 2RS 63.500 100.013 55.550 47.625 92.0 1.0 1.0 6 355 1060 1.850
GEZ 69 ES 2RS 69.850 111.125 61.112 52.375 100.0 1.0 1.0 6 415 1250 2.400
GEZ 76 ES 2RS 76.200 120.650 66.675 57.150 109.5 1.0 1.0 6 500 1500 3.100
GEZ 82 ES 2RS 82.550 130.175 72.238 61.900 119.0 1.0 1.0 6 585 1760 3.800
GEZ 88 ES 2RS 88.900 139.700 77.775 66.675 128.0 1.0 1.0 6 680 2040 4.800
GEZ 95 ES 2RS 95.250 149.225 83.337 71.425 137.0 1.0 1.0 6 780 2360 5.800
GEZ 101 ES 2RS 101.600 158.750 88.900 76.200 146.0 1.0 1.0 6 900 2650 7.000
GEZ 107 ES 2RS 107.950 168.275 94.463 80.950 155.0 1.0 1.0 6 1000 3000 8.410
GEZ 114 ES 2RS 114.300 177.800 100.013 85.725 164.5 1.0 1.0 6 1120 3400 9.800
GEZ 120 ES 2RS 120.650 187.325 105.562 90.475 173.5 1.0 1.0 6 1250 3750 11.500
GEZ 127 ES 2RS 127.000 196.850 111.125 95.250 183.0 1.0 1.0 6 1400 4150 13.500
GEZ 152 ES 2RS 152.400 222.250 120.650 104.775 207.0 1.0 1.0 5 1730 5200 17.500
