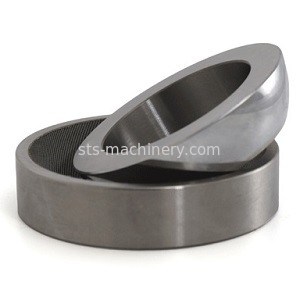

GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GAC
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)
GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.
GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)



GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C T dk S A rs
min
α C Co kg
GAC 25 S 25 47 15 14.0 15 42.0 0.6 7.5 1.0 2.5 50 250 0.148
GAC 28 S 28 52 16 15.0 16 47.0 1.0 8.0 1.0 2.0 60 300 0.186
GAC 30 S 30 55 17 15.0 17 49.5 1.3 8.5 1.0 4.5 63 315 0.208
GAC 32 S 32 58 17 16.0 17 52.0 2.0 8.5 1.0 2.0 71 354 0.241
GAC 35 S 35 62 18 16.0 18 55.5 2.1 9.0 1.0 4.0 78 390 0.268
GAC 40 S 40 68 19 17.0 19 62.0 2.8 9.5 1.0 3.5 92 463 0.327
GAC 45 S 45 75 20 18.0 20 68.5 3.5 10.0 1.0 3.0 108 540 0.416
GAC 50 S 50 80 20 19.0 20 74.0 4.3 10.0 1.0 1.5 123 618 0.455
GAC 55 S 55 90 23 20.0 23 82.0 5.0 11.5 1.1 4.0 144 721 0.645
GAC 60 S 60 95 23 21.0 23 88.5 5.7 11.5 1.1 2.5 163 817 0.714
GAC 65 S 65 100 23 22.0 23 93.5 6.5 11.5 1.1 1.0 180 905 0.759
GAC 70 S 70 110 25 23.0 25 102.0 7.2 12.5 1.1 2.0 206 1030 1.040
GAC 75 S 75 115 25 24.0 25 107.0 7.9 12.5 1.1 1.0 220 1129 1.120
GAC 80 S 80 125 29 25.5 29 115.0 8.6 14.5 1.1 3.5 258 1290 1.540
GAC 85 S 85 130 29 26.5 29 122.0 9.4 14.5 1.1 2.0 284 1422 1.610
GAC 90 S 90 140 32 28.0 32 128.5 10.1 16.0 1.5 3.5 316 1580 2.090
GAC 95 S 95 145 32 29.5 32 135.0 10.8 16.0 1.5 2.0 350 1750 2.220
GAC 100 S 100 150 32 31.0 32 141.0 11.6 16.0 1.5 0.5 384 1923 2.340
GAC 105 S 105 160 35 32.5 35 148.0 12.3 17.5 2.0 2.0 423 2116 2.930
GAC 110 S 110 170 38 34.0 38 155.0 13.0 19.0 2.0 3.0 463 2318 3.680
GAC 120 S 120 180 38 37.0 38 168.0 14.5 19.0 2.0 0.5 547 2735 3.970



Packaging & Shipping



GAC Series Angular Contact Spherical Plain Bearings (GAC25S GAC28S GAC30S GAC32S GAC35S GAC40S GAC45S GAC50S)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
