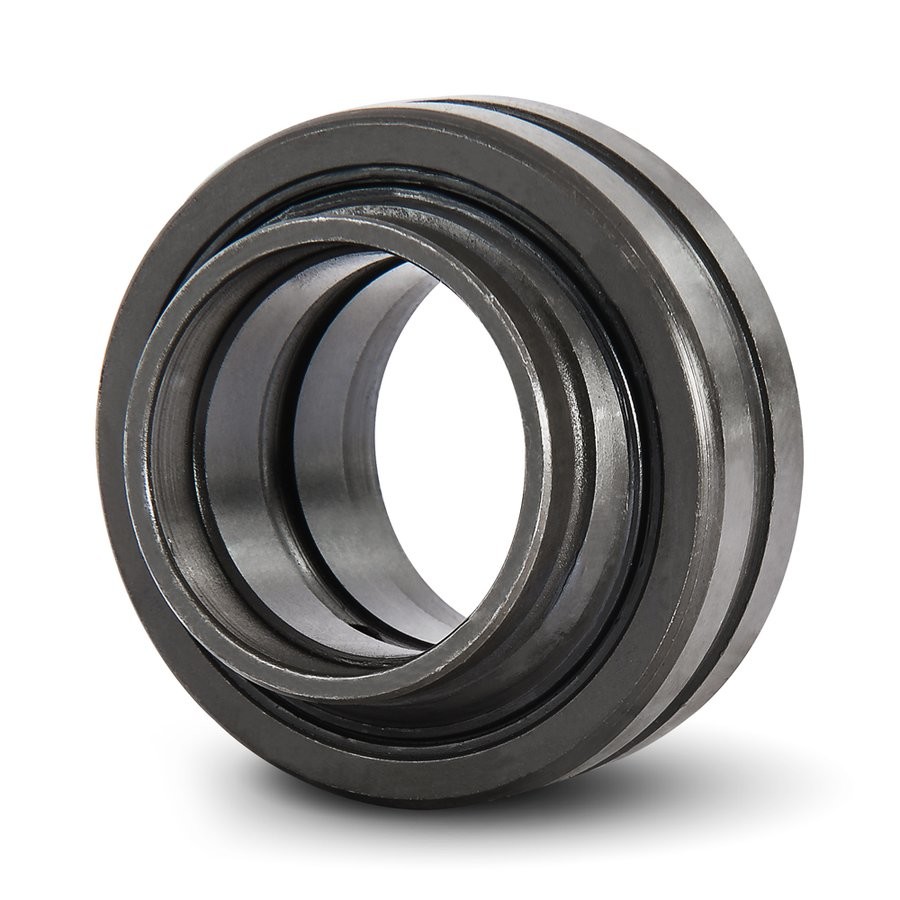

GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GEF...ES 2RS
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)
GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.

ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race. With dual seals.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment, dust proof.
GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)




GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C dk r1 min r2 min α C Co kg
GEF 20 ES 2RS 20 32 16 14 28 0.5 0.5 4 33 166 0.053
GEF 22 ES 2RS 22 37 19 16 32 0.5 0.5 6 43 217 0.085
GEF 25 ES 2RS 25 42 21 18 36 0.5 0.5 5 55 275 0.116
GEF 30 ES 2RS 30 50 27 23 45 1.0 1.0 6 87 439 0.225
GEF 35 ES 2RS 35 55 30 26 50 1.0 1.0 5 110 552 0.302
GEF 40 ES 2RS 40 62 33 28 55 1.0 1.0 6 130 654 0.375
GEF 45 ES 2RS 45 72 36 31 62 1.0 1.0 5 163 816 0.598
GEF 50 ES 2RS 50 80 42 36 72 1.0 1.0 5 220 1100 0.869
GEF 55 ES 2RS 55 90 47 40 80 1.0 1.0 6 272 1360 1.260
GEF 60 ES 2RS 60 100 53 45 90 1.0 1.0 6 344 1720 1.720
GEF 65 ES 2RS 65 105 55 47 94 1.0 1.0 5 375 1870 2.050
GEF 70 ES 2RS 70 110 58 50 100 1.0 1.0 5 425 2125 2.230
GEF 75 ES 2RS 75 120 64 55 110 1.0 1.0 5 510 2570 3.010
GEF 80 ES 2RS 80 130 70 60 120 1.0 1.0 5 610 3060 3.980
GEF 85 ES 2RS 85 135 74 63 125 1.0 1.0 6 669 3340 4.310
GEF 90 ES 2RS 90 140 76 65 130 1.0 1.0 5 718 3590 4.720
GEF 95 ES 2RS 95 150 82 70 140 1.0 1.0 5 833 4165 6.050
GEF 100 ES 2RS 100 160 88 75 150 1.5 1.5 5 956 4780 7.430
GEF 110 ES 2RS 110 170 93 80 160 1.5 1.5 5 1080 5440 8.540
GEF 115 ES 2RS 115 180 98 85 165 1.5 1.5 5 1190 5960 10.300
GEF 120 ES 2RS 120 190 105 90 175 1.5 1.5 6 1330 6690 12.400
Packaging & Shipping



GEF...ES 2RS Series Radial Spherical Plain Bearings (GEF75ES 2RS GEF80ES 2RS GEF85ES 2RS GEF90ES 2RS GEF95ES 2RS GEF100ES 2RS GEF110ES 2RS GEF115ES 2RS)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
