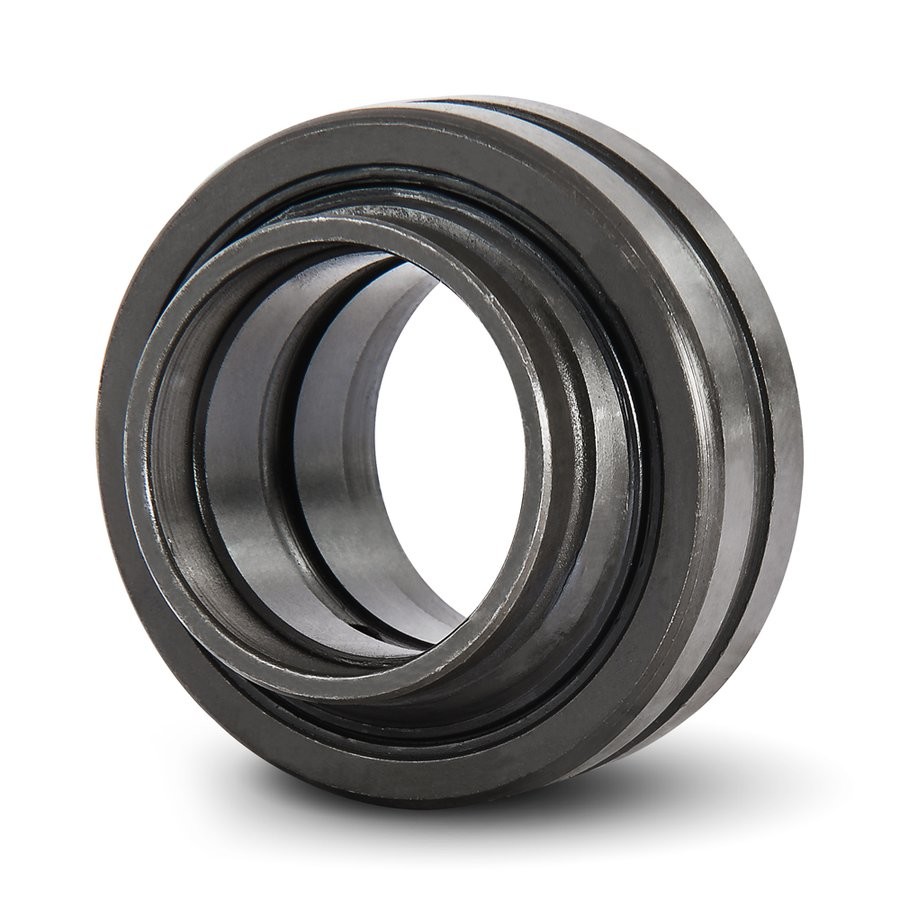

Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GE...ES
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills

Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)
Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)
Product Parameters

Technical specification

Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)
Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)




Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)
Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d D B C dk r1
min
r2
min
α C C0 kg
GE4E 4 12 5 3 8 0.3 0.3 16 2.0 10 0.003
GE5E 5 14 6 4 10 0.3 0.3 13 3.4 17 0.005
GE6E 6 14 6 4 10 0.3 0.3 13 3.4 17 0.004
GE8E 8 16 8 5 13 0.3 0.3 15 5.5 27 0.008
GE10E 10 19 9 6 16 0.3 0.3 12 8.1 40 0.011
GE12E 12 22 10 7 18 0.3 0.3 10 10.0 53 0.015
Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C dk r1
min
r2
min
α C C0 kg
GE15ES 15 26 12 9 22.0 0.3 0.3 8 16 84 0.027
GE17ES 17 30 14 10 25.0 0.3 0.3 10 21 106 0.041
GE20ES 20 35 16 12 29.0 0.3 0.3 9 30 146 0.066
GE25ES 25 42 20 16 35.5 0.6 0.6 7 48 240 0.119
GE30ES 30 47 22 18 40.7 0.6 0.6 6 62 310 0.153
GE35ES 35 55 25 20 47.0 0.6 1.0 6 79 399 0.233
GE40ES 40 62 28 22 53.0 0.6 1.0 7 99 495 0.306
GE45ES 45 68 32 25 60.0 0.6 1.0 7 127 637 0.427
GE50ES 50 75 35 28 66.0 0.6 1.0 6 156 780 0.546
GE60ES 60 90 44 36 80.0 1.0 1.0 6 245 1220 1.040
GE70ES 70 105 49 40 92.0 1.0 1.0 6 313 1560 1.550
GE80ES 80 120 55 45 105.0 1.0 1.0 6 400 2000 2.310
GE90ES 90 130 60 50 115.0 1.0 1.0 5 488 2440 2.750
GE100ES 100 150 70 55 130.0 1.0 1.0 7 607 3030 4.450
GE110ES 110 160 70 55 140.0 1.0 1.0 6 654 3270 4.820
GE120ES 120 180 85 70 160.0 1.0 1.0 6 950 4750 8.050
GE140ES 140 210 90 70 180.0 1.0 1.0 7 1070 5350 11.020
GE160ES 160 230 105 80 200.0 1.0 1.0 8 1360 6800 14.010
GE180ES 180 260 105 80 225.0 1.1 1.1 6 1530 7650 18.650
GE200ES 200 290 130 100 250.0 1.1 1.1 7 2120 10600 28.030
GE220ES 220 320 135 100 275.0 1.1 1.1 8 2320 11600 35.510
GE240ES 240 340 140 100 300.0 1.1 1.1 8 2550 12700 39.910
Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C dk r1
min
r2
min
α C C0 kg
GE 15 ES 2RS 15 26 12 9 22.0 0.3 0.3 8 16 84 0.027
GE 17 ES 2RS 17 30 14 10 25.0 0.3 0.3 10 21 106 0.041
GE 20 ES 2RS 20 35 16 12 29.0 0.3 0.3 9 30 146 0.066
GE 25 ES 2RS 25 42 20 16 35.5 0.6 0.6 7 48 240 0.119
GE 30 ES 2RS 30 47 22 18 40.7 0.6 0.6 6 62 310 0.153
GE 35 ES 2RS 35 55 25 20 47.0 0.6 1.0 6 79 399 0.233
GE 40 ES 2RS 40 62 28 22 53.0 0.6 1.0 7 99 495 0.306
GE 45 ES 2RS 45 68 32 25 60.0 0.6 1.0 7 127 637 0.427
GE 50 ES 2RS 50 75 35 28 66.0 0.6 1.0 6 156 780 0.546
GE 60 ES 2RS 60 90 44 36 80.0 1.0 1.0 6 245 1220 1.040
GE 70 ES 2RS 70 105 49 40 92.0 1.0 1.0 6 313 1560 1.550
GE 80 ES 2RS 80 120 55 45 105.0 1.0 1.0 6 400 2000 2.310
GE 90 ES 2RS 90 130 60 50 115.0 1.0 1.0 5 488 2440 2.750
GE 100 ES 2RS 100 150 70 55 130.0 1.0 1.0 7 607 3030 4.450
GE 110 ES 2RS 110 160 70 55 140.0 1.0 1.0 6 654 3270 4.820
GE 120 ES 2RS 120 180 85 70 160.0 1.0 1.0 6 950 4750 8.050
GE 140 ES 2RS 140 210 90 70 180.0 1.0 1.0 7 1070 5350 11.020
GE 160 ES 2RS 160 230 105 80 200.0 1.0 1.0 8 1360 6800 14.010
GE 180 ES 2RS 180 260 105 80 225.0 1.1 1.1 6 1530 7650 18.650
GE 200 ES 2RS 200 290 130 100 250.0 1.1 1.1 7 2120 10600 28.030
GE 220 ES 2RS 220 320 135 100 275.0 1.1 1.1 8 2320 11600 35.510
GE 240 ES 2RS 240 340 140 100 300.0 1.1 1.1 8 2550 12700 39.910
Packaging & Shipping



Radial Spherical Plain Bearing (GE15ES GE17ES GE20ES GE25ES GE30ES GE35ES GE40ES GE45ES GE50ES GE60ES)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
