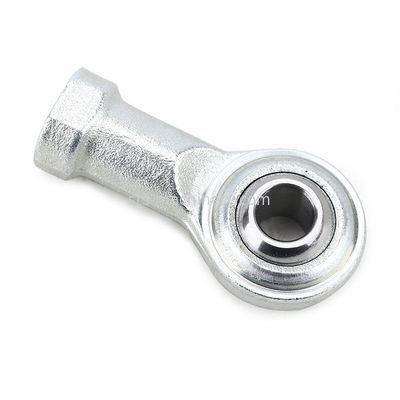

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.
Technical specification
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | |||||||||||||
| d | d3 7H |
B | C1 | L3 min |
W | d2 | h1 | L4 | L5 | d4 | d5 | α ≈ |
C | C0 | kg | |
| SI5PK | 5 | M5x0.8 | 8 | 6.0 | 10 | 9 | 19 | 27 | 36.5 | 4.0 | 9.0 | 11 | 12 | 5.7 | 6.0 | 0.018 |
| SI6PK | 6 | M6x1.0 | 9 | 6.7 | 12 | 11 | 21 | 30 | 40.5 | 5.0 | 10.0 | 13 | 11 | 7.2 | 7.65 | 0.026 |
| SI8PK | 8 | M8x1.25 | 12 | 9.0 | 16 | 14 | 25 | 36 | 48.5 | 5.0 | 12.5 | 16 | 12 | 11.6 | 12.9 | 0.047 |
| SI10PK | 10 | M10x1.5 | 14 | 11.0 | 20 | 17 | 29 | 43 | 57.5 | 6.5 | 15.0 | 19 | 12 | 14.5 | 18.0 | 0.077 |
| SI10-1PK | 10 | M10x1.25 | 14 | 11.0 | 20 | 17 | 29 | 43 | 57.5 | 6.5 | 15.0 | 19 | 12 | 14.5 | 18.0 | 0.077 |
| SI12PK | 12 | M12x1.75 | 16 | 12.0 | 22 | 19 | 33 | 50 | 66.5 | 6.5 | 17.5 | 22 | 13 | 17.0 | 24.0 | 0.100 |
| SI12-1PK | 12 | M12x1.25 | 16 | 12.0 | 22 | 19 | 33 | 50 | 66.5 | 6.5 | 17.5 | 22 | 13 | 17.0 | 24.0 | 0.100 |
| SI14PK | 14 | M14x2.0 | 19 | 14.0 | 25 | 22 | 37 | 57 | 75.5 | 8.0 | 20.0 | 25 | 14 | 24.0 | 31.0 | 0.160 |
| SI16PK | 16 | M16x2.0 | 21 | 15.0 | 28 | 22 | 43 | 64 | 85.5 | 8.0 | 22.0 | 27 | 14 | 28.5 | 39.0 | 0.220 |
| SI16-1PK | 16 | M16x1.5 | 21 | 15.0 | 28 | 22 | 43 | 64 | 85.5 | 8.0 | 22.0 | 27 | 14 | 28.5 | 39.0 | 0.220 |
| SI18PK | 18 | M18x1.5 | 23 | 17.0 | 32 | 27 | 47 | 71 | 94.5 | 10.0 | 25.0 | 31 | 14 | 42.5 | 47.5 | 0.320 |
| SI20PK | 20 | M20x1.5 | 25 | 18.0 | 33 | 30 | 51 | 77 | 102.5 | 10.0 | 27.5 | 34 | 14 | 42.5 | 57.0 | 0.420 |
| SI22PK | 22 | M22x1.5 | 28 | 20.0 | 37 | 32 | 55 | 84 | 111.5 | 12.0 | 30.0 | 38 | 15 | 57.0 | 68.0 | 0.540 |
| SI25PK | 25 | M24x2.0 | 31 | 22.0 | 42 | 36 | 61 | 94 | 124.5 | 12.0 | 33.5 | 42 | 15 | 68.0 | 85.0 | 0.720 |
