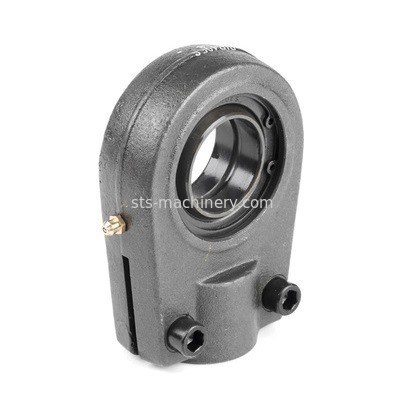

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.
Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.
Technical specification
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||||||||
| d | d3 6H |
d4 | L3 min |
B | C1 | d2 | L7 min |
h1 | L4 | d5 | d1 | dk | a ≈ |
C | C0 | kg | |
| GIHR 20 DO | 20 | M16x1.5 | 25 | 17 | 16 | 19 | 56 | 25 | 50 | 80.0 | 46 | 24.2 | 29.0 | 9 | 30 | 72 | 0.43 |
| GIHR 25 DO | 25 | M16x1.5 | 25 | 17 | 20 | 23 | 56 | 28 | 50 | 80.0 | 46 | 29.3 | 35.5 | 7 | 48 | 72 | 0.48 |
| GIHR 30 DO | 30 | M22x1.5 | 32 | 23 | 22 | 28 | 64 | 30 | 60 | 94.0 | 50 | 34.2 | 40.7 | 6 | 62 | 106 | 0.74 |
| GIHR 35 DO | 35 | M28x1.5 | 40 | 29 | 25 | 30 | 78 | 38 | 70 | 112.0 | 66 | 39.8 | 47.0 | 6 | 80 | 153 | 1.20 |
| GIHR 40 DO | 40 | M35x1.5 | 49 | 36 | 28 | 35 | 94 | 45 | 85 | 135.0 | 76 | 45.0 | 53.0 | 7 | 100 | 250 | 2.00 |
| GIHR 50 DO | 50 | M45x1.5 | 61 | 46 | 35 | 40 | 116 | 55 | 105 | 168.0 | 90 | 55.9 | 66.0 | 6 | 156 | 365 | 3.80 |
| GIHR 60 DO | 60 | M58x1.5 | 75 | 59 | 44 | 50 | 130 | 65 | 130 | 200.0 | 120 | 66.8 | 80.0 | 6 | 245 | 400 | 5.40 |
| GIHR 70 DO | 70 | M65x1.5 | 86 | 66 | 49 | 55 | 154 | 75 | 150 | 232.0 | 130 | 77.9 | 92.0 | 6 | 315 | 540 | 8.50 |
| GIHR 80 DO | 80 | M80x2.0 | 105 | 81 | 55 | 60 | 176 | 80 | 170 | 265.0 | 160 | 89.4 | 105.0 | 6 | 400 | 670 | 12.00 |
| GIHR 90 DO | 90 | M100x2.0 | 124 | 101 | 60 | 65 | 206 | 90 | 210 | 323.0 | 180 | 98.1 | 115.0 | 5 | 490 | 980 | 21.50 |
| GIHR 100 DO | 100 | M110x2.0 | 138 | 111 | 70 | 70 | 231 | 105 | 235 | 360.0 | 200 | 109.5 | 130.0 | 7 | 610 | 1120 | 27.50 |
| GIHR 110 DO | 110 | M120x3.0 | 152 | 125 | 70 | 80 | 265 | 115 | 265 | 407.5 | 220 | 121.2 | 140.0 | 6 | 655 | 1700 | 40.50 |
| GIHR 120 DO | 120 | M130x3.0 | 172 | 135 | 85 | 90 | 340 | 140 | 310 | 490.0 | 257 | 135.5 | 160.0 | 6 | 950 | 2900 | 76.00 |
