GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GK..DO
Minimum Order Quantity: 1
Price: 1-20
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)
Product Parameters

Technical specification

GK...DO
Specification:

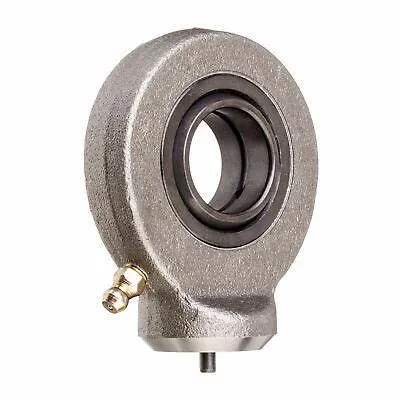

-Rod end housing with weldable base and dowel pin.
-It is made up of a radial spherical plain bearing
GE... ES or GE... ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.



GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)



GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)
GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)
GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)
Bearing No. Dimensions (mm) Load ratings (KN) Mass
d d3 d4 B C1 d2 L7
min
L8 h1 L4 dk d1 D a C C0 kg
GK 10 DO* 10 3 15.0 9 7 29 15.0 1.5 24 38.5 16.0 13.2 19 12 8.2 15.6 0.04
GK 12 DO* 12 3 17.5 10 8 34 18.0 1.5 27 44.0 18.0 15.0 22 11 10.8 21.6 0.07
GK 15 DO 15 4 21.0 12 10 40 20.0 2.0 31 51.0 22.0 18.4 26 8 17.0 32.0 0.12
GK 17 DO 17 4 24.0 14 11 46 23.0 2.0 35 58.0 25.0 20.7 30 10 21.2 40.0 0.19
GK 20 DO 20 4 27.5 16 13 53 27.5 2.0 38 64.5 29.0 24.2 35 9 30.0 54.0 0.23
GK 25 DO 25 4 33.5 20 17 64 33.0 3.0 45 77.0 35.5 29.3 42 7 48.0 72.0 0.43
GK 30 DO 30 4 40.0 22 19 73 37.5 3.0 51 87.5 40.7 34.2 47 6 62.0 95.0 0.64
GK 35 DO 35 4 47.0 25 21 82 43.0 3.0 61 102.0 47.0 39.8 55 6 80.0 125.0 0.96
GK 40 DO 40 4 52.0 28 23 92 48.0 4.0 69 115.0 53.0 45.0 62 7 100.0 156.0 1.30
GK 45 DO 45 6 58.0 32 27 102 52.0 4.0 77 128.0 60.0 50.8 68 7 127.0 208.0 1.80
GK 50 DO 50 6 62.0 35 30 112 59.0 4.0 88 144.0 66.0 55.9 75 6 156.0 250.0 2.50
GK 60 DO 60 6 70.0 44 38 135 72.5 4.0 100 167.5 80.0 66.8 90 6 245.0 390.0 3.90
GK 70 DO 70 6 80.0 49 42 160 86.0 5.0 115 195.0 92.0 77.9 105 6 315.0 510.0 6.60
GK 80 DO 80 6 95.0 55 47 180 98.0 5.0 141 231.0 105.0 89.4 120 6 400.0 620.0 8.70





Packaging & Shipping

GK..DO Series Hydraulic Rod Ends/ Oscillating Bearings(GK10DO GK12DO GK15DO GK17DO GK20DO GK25DO GK30DO GK35DO GK40DO GK45DO GK50DO)



Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
