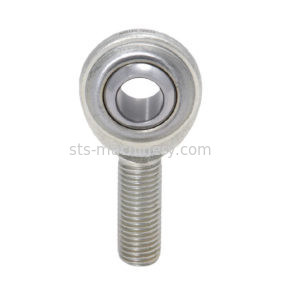

SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SIZJ
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)
Product Parameters

Technical specification

SIZJ
Specification:
- Rod body with right or left-hand female thread.
- Rod body pressed around inner ring.
- Surface of rod body zinc plated.
- In inch dimension series.
SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)



SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)
SIZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings(SIZJ4 SIZJ6 SIZJ7 SIZJ9 SIZJ11 SIZJ12 SIZJ15 SIZJ19)

Bearing
No.
Dimensions (mm) Load ratings
(KN)
Mass
d d3
2B
B C1 d1
min
R1S d2 h1 l3 l4 l5 d4 d5 w α
C C0 kg
SIZJ4 4.83 10-32 7.92 5.94 7.80 0.3 15.88 26.97 12.70 34.93 4.75 7.54 10.31 7.92 10.0 3.6 6.8 0.018
SIZJ6 6.35 1/4-28 9.53 6.35 8.40 0.3 19.05 33.32 15.88 42.85 4.75 9.15 11.91 9.53 13.5 5.4 9.6 0.023
SIZJ7 7.94 5/16-24 11.1 7.92 11.40 0.3 22.23 34.93 15.88 46.02 4.75 10.72 12.70 11.10 11.0 8.5 12.0 0.036
SIZJ9 9.53 3/8-24 12.7 9.12 13.10 0.6 25.40 41.28 19.05 53.98 6.35 13.89 17.45 14.27 11.0 11.0 16.0 0.059
SIZJ11 11.11 7/16-20 14.27 10.31 14.90 0.6 28.58 46.02 22.23 60.33 6.35 15.49 19.05 15.88 10.5 14.0 21.0 0.082
SIZJ12 12.70 1/2-20 15.88 11.50 17.70 0.6 33.32 53.98 25.40 70.64 6.35 18.67 22.23 19.05 10.0 18.0 28.0 0.132
SIZJ15 15.88 5/8-18 19.05 12.29 21.30 0.6 38.10 63.50 31.75 85.55 7.92 21.84 25.40 22.23 13.0 23.0 29.0 0.195
SIZJ19 19.05 3/4-16 22.23 15.06 24.80 0.6 44.45 73.03 34.93 95.25 7.92 25.02 28.58 25.40 12.0 34.0 44.0 0.295
