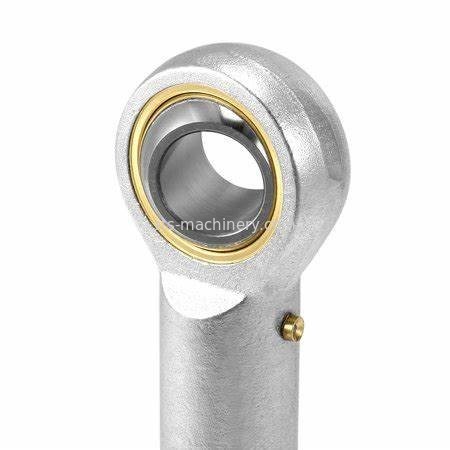

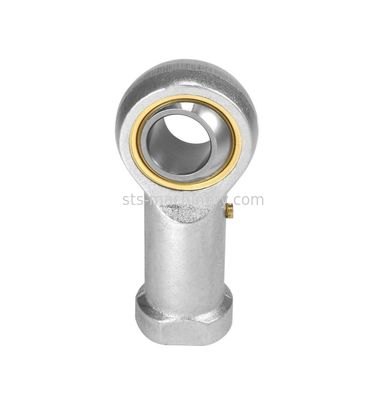

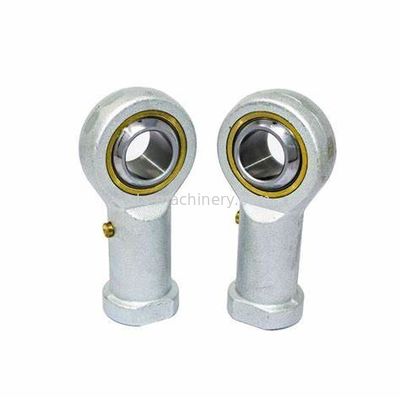

PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: PHSB
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 PHSB16)PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 PHSB16)
Product Parameters

Technical specification

PHSB

As series PHS, but in inch dimensions.

Specification:
- Rod body with right or left-hand female thread.
- Outer race lined with bronze liner.
- Surface of rod body zinc plated, rod body with a lubricating hole or grease nippe.
PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 PHSB16)



PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 PHSB16)
PHSB Series Inch Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(PHSB4 PHSB5 PHSB6 PHSB7 PHSB8 PHSB10 PHSB12 PHSB16)

Bearing
No.
Mass
lb
d d2 C1 B d1 L2 I H1
PHSB 4 .05 .2500
(6.350)
.750
(19.05)
.281
(7.14)
.375
(9.53)
.355
(9.02)
1.687
(42.85)
.187
(4.75)
1.312
(33.32)
PHSB 5 .08 .3125
(7.938)
.875
(22.23)
.344
(8.74)
.437
(11.10)
.447
(11.35)
1.812
(46.02)
.187
(4.75)
1.312
(34.93)
PHSB 6 .13 .3750
(9.525)
.1.000
(25.40)
.406
(10.31)
.500
(12.70)
.517
(13.13)
2.125
(53.98)
.250
(6.35)
1.625
(41.28)
PHSB 7 .18 .4375
(11.112)
1.125
(25.58)
.437
(11.10)
.562
(14.27)
.586
(14.88)
2.375
(60.33)
.250
(6.35)
1.812
(46.02)
PHSB 8 .29 .5000
(12.700)
1.312
(33.32)
.500
(12.70)
.625
(15.88)
.698
(17.73)
2.781
(70.64)
.250
(6.35)
2.125
(53.98)
PHSB 10 .42 .6250
(15.875)
1.500
(38.10)
.562
(14.27)
.750
(19.05)
.839
(21.31)
3.250
(82.55)
.312
(7.92)
2.500
(63.50)
PHSB 12 .63 .7500
(19.050)
1.750
(44.45)
.687
(17.45)
.875
(22.23)
.978
(24.84)
3.750
(95.25)
.312
(7.92)
2.875
(73.03)
PHSB 16 2.20 1.0000
(25.400)
2.750
(69.85)
1.000
(25.40)
1.375
(34.925)
1.269
(32.23)
5.500
(139.70)
.436
(11.07)
4.125
(104.78)
