GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GF...DO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy

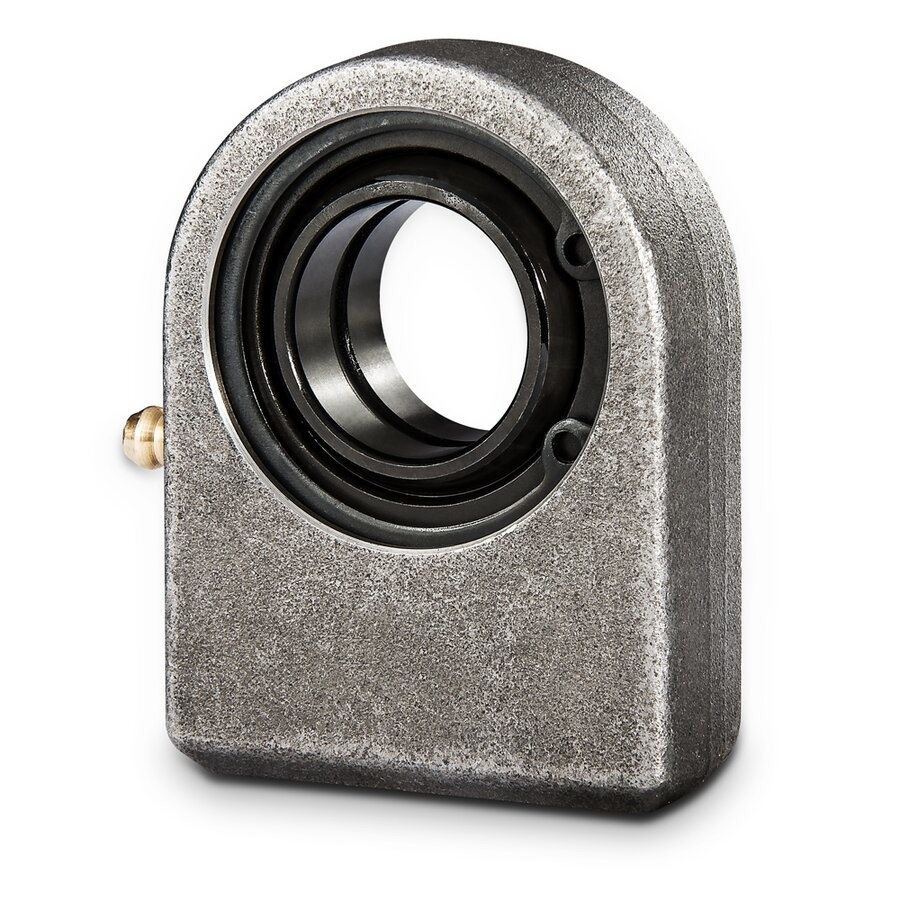

GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)
Product Parameters

Technical specification

GF...DO
Specification:
-Rod end housing with weldable base.
-It is made up of a radial spherical plain bearing
GE... ES or GE... ES 2RS
and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.



GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)



GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)
GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)
GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d B C1 d2 L6 h2 dk d1 D L8 C Co kg
GF 20 DO 20 16 19 50 63.00 38 29.00 24.20 35 2 30 67.00 0.35
GF 25 DO 25 20 23 55 72.50 45 35.50 29.30 42 2 48 69.50 0.53
GF 30 DO 30 22 28 65 83.50 51 40.70 34.20 47 2 62 118.00 0.87
GF 35 DO 35 25 30 83 102.50 61 47.00 39.80 55 2 80 196.00 1.50
GF 40 DO 40 28 35 100 119.00 69 53.00 45.00 62 3 100 300.00 2.40
GF 45 DO 45 32 40 110 132.00 77 60.00 50.80 68 3 127 380.00 3.40
GF 50 DO 50 35 40 123 149.50 88 66.00 55.90 75 3 156 440.00 4.40
GF 60 DO 60 44 50 140 170.00 100 80.00 66.80 90 4 245 570.00 7.10
GF 70 DO 70 49 55 164 197.00 115 92.00 77.90 105 4 315 695.00 10.50
GF 80 DO 80 55 60 180 231.00 141 105.00 89.40 120 4 400 780.00 15.00
GF 90 DO 90 60 65 226 263.00 150 115.00 98.10 130 4 490 1340.00 23.50
GF 100 DO 100 70 70 250 295.00 170 130.00 109.50 150 4 610 1500.00 31.50
GF 110 DO 110 70 80 295 332.50 185 140.00 121.20 160 4 655 2160.00 48.50
GF 120 DO 120 85 90 360 390.00 210 160.00 135.50 180 4 950 3250.00 79.00
Packaging & Shipping

GF...DO Series Hydraulic Rod Ends/ Oscillating Bearings(GF20DO GF25DO GF30DO GF35DO GF40DO GF45DO GF50DO GF60DO GF70DO GF80DO)



Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
