CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: CM..Y
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)
Product Parameters

Technical specification

Sliding contact surfaces: Steel/steel
Inner ring:Carbon steel,Zinc plated
Outer ring:Low carbon steel,Heat treated: HRC57-61
Stub:Carbon steel Zinc plated





CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)
CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)
CM..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CM3Y CM4Y CM5Y CM6Y CM7Y CM8Y CM10Y CM12Y)

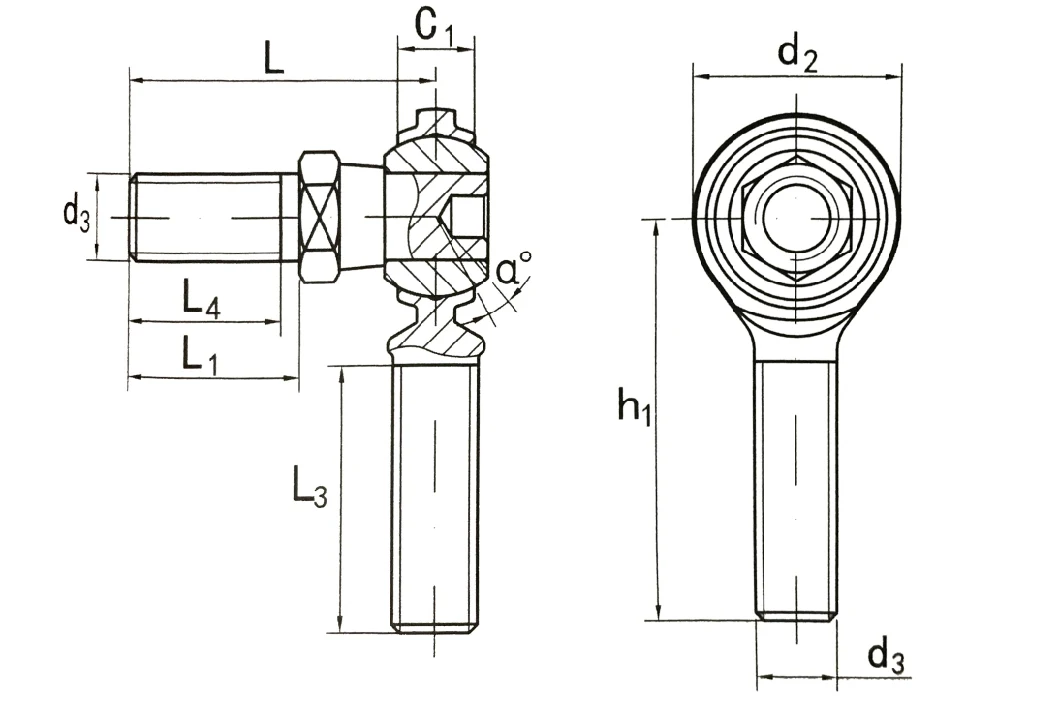

Bearing No. Dimensions (mm) Load ratings kN Mass
kg
Right hand Left hand d3
UNF-3A
C1 d2 h1 L3
min
L L1 L4 α
CM 3 Y CML 3 Y 10-32 5.94 15.88 31.75 19.05 25.4 12.7 11.1 10 5.355 0.018
CM 4 Y CML 4 Y 1/4-28 6.35 19.05 39.67 25.4 26.19 14.27 12.7 13.5 9.839 0.023
CM 5 Y CML 5 Y 5/16-24 7.92 22.23 47.63 31.75 30.96 17.45 15.06 11 15.910 0.045
CM 6 Y CML 6 Y 3/8-24 9.12 25.4 49.23 31.75 39.67 23.01 20.62 11 22.542 0.068
CM 7 Y CML 7 Y 7/16-20 10.31 28.58 53.98 34.93 44.45 26.97 23.8 10.5 28.223 0.109
CM 8 Y CML 8 Y 1/2-20 11.5 33.32 61.93 38.1 50.8 28.58 25.4 10 37.087 0.159
CM 10 Y CML 10 Y 5/8-18 12.29 38.1 66.68 41.28 63.5 38.1 34.93 13 43.023 0.277
CM 12 Y CML 12 Y 3/4-16 15.06 44.45 73.03 44.45 76.2 46.02 41.28 12 63.193 0.467
