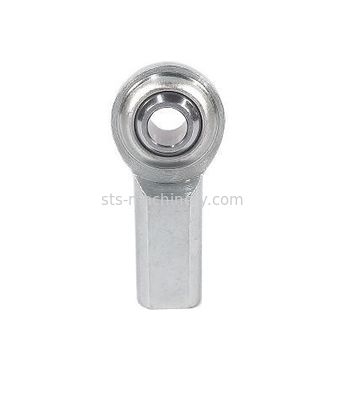

CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: CF..Y
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)
Product Parameters

Technical specification

Sliding contact surfaces: Steel/steel
Inner ring:Carbon steel,Zinc plated
Outer ring:Low carbon steel,Heat treated: HRC55
Stub:Carbon steel Zinc plated





CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)
CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)
CF..Y Series Rod Ends/Heim Joint/ Rose Joint/ Bearings With Stud(CF3Y CF4Y CF5Y CF6Y CF7Y CF8Y CF10Y CF12Y)
Bearing No. Dimensions (mm) Load ratings kN Mass
kg
Right hand Left hand d3
UNF-2B
w C1 d2 h1 L3
min
L L1 L4 d5 α
CF 3 Y CFL 3 Y 10-32 7.92 5.94 15.88 26.97 12.7 25.4 12.7 11.1 10.31 10 9.247 0.023
CF 4 Y CFL 4 Y 1/4-28 9.53 6.35 19.05 33.32 17.45 26.19 14.27 12.7 11.91 13.5 14.269 0.027
CF 5 Y CFL 5 Y 5/16-24 11.10 7.92 22.23 34.93 17.45 30.96 17.45 15.06 12.7 11 17.009 0.050
CF 6 Y CFL 6 Y 3/8-24 14.27 9.12 25.4 41.28 20.62 39.67 23.01 20.62 17.45 11 22.627 0.077
CF 7 Y CFL 7 Y 7/16-20 15.88 10.31 28.58 46.02 23.8 44.45 26.97 23.8 19.05 10.5 28.400 0.122
CF 8 Y CFL 8 Y 1/2-20 19.05 11.5 33.32 53.98 26.97 50.8 28.58 25.4 22.23 10 40.459 0.181
CF 10 Y CFL 10 Y 5/8-18 22.23 12.29 38.1 63.50 34.93 63.5 38.1 34.93 25.4 13 43.203 0.308
CF 12 Y CFL 12 Y 3/4-16 25.40 15.06 44.45 73.03 39.67 76.2 46.02 41.28 28.58 12 63.193 0.504
