SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union


Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.

Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy

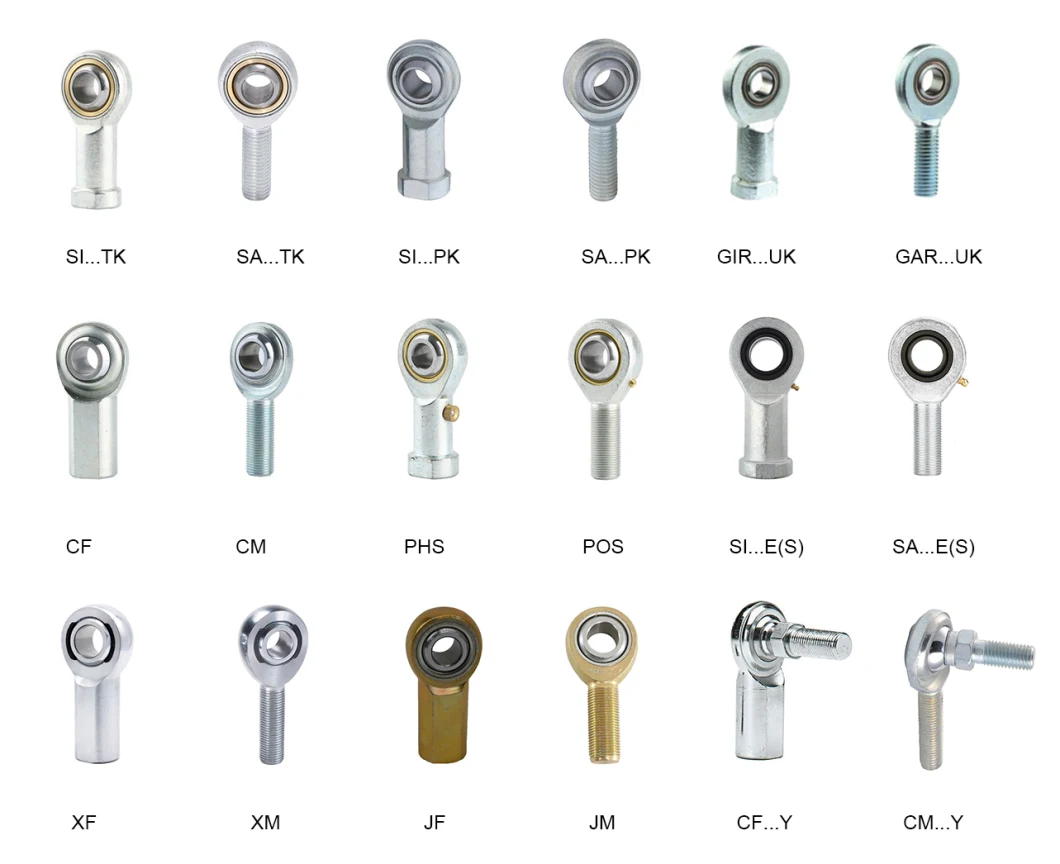

SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES SA20ES SA25ES SA30ES SA35ES SA40ES)SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES SA20ES SA25ES SA30ES SA35ES SA40ES)
Product Parameters

Technical specification

Interchange Series : SAA...ES/ GAR...DO / EA.../GAR...ES

SA...E(S)
Specification:
- Rod body with right or left-hand male thread.
- It is made up of a radial spherical plain bearing GE .. E (S) or GE .. ES 2RS and rod body.
- Surface of rod body zinc plated,housing of SA..ES with a lubricating hole or grease nipple.
SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES SA20ES SA25ES SA30ES SA35ES SA40ES)



SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES SA20ES SA25ES SA30ES SA35ES SA40ES)
SAA...ES/ GAR...DO / EA.../GAR...ES/ SA...ES Series Rod Ends/Rose Joint/ Bearings(SA6E SA8E SA10E SA12E SA15ES SA17ES SA20ES SA25ES SA30ES SA35ES SA40ES)

Bearing No. Dimensions (mm) Load Ratings
(KN)
Mass
d d3
6g
B C1 L1
min
d2 L7
min
h L2 dk R1s α
C C0 kg
SA6E* 6 M6x1.0 6 4.4 18 21 12 36 46.5 10.0 0.3 13 3.40 8.15 0.017
SA8E* 8 M8x1.25 8 6.0 22 24 14 42 54.0 13.0 0.3 15 5.50 12.90 0.029
SA10E* 10 M10x1.5 9 7.0 26 29 15 48 62.5 16.0 0.3 12 8.15 17.60 0.051
SA12E* 12 M12x1.75 10 8.0 28 34 18 54 71.0 18.0 0.3 11 10.80 24.50 0.086
SA15ES 15 M14x2.0 12 10.0 34 40 20 63 83.0 22.0 0.3 8 17.00 36.00 0.140
SA17ES 17 M16x2.0 14 11.0 36 46 23 69 92.0 25.0 0.3 10 21.20 45.00 0.190
SA20ES 20 M20x1.5 16 13.0 43 53 27 78 104.5 29.0 0.6 9 30.00 60.00 0.310
SA25ES 25 M24x2.0 20 17.0 53 64 32 94 126.0 35.5 0.6 7 48.00 83.00 0.560
SA30ES 30 M30x2.0 22 19.0 65 73 37 110 146.5 40.7 0.6 6 62.00 110.00 0.890
SA35ES 35 M36x3.0 25 21.0 82 82 42 140 181.0 47.0 0.6 6 80.00 146.00 1.400
SA40ES 40 M39x3.0 28 23.0 86 92 48 150 196.0 53.0 0.6 7 100.00 180.00 1.800
SA40-1ES 40 M42x3.0 28 23.0 86 92 48 150 196.0 53.0 0.6 7 100.00 180.00 1.850
SA45ES 45 M42x3.0 32 27.0 94 102 52 163 214.0 60.0 0.6 7 127.00 240.00 2.600
SA45-1ES 45 M45x3.0 32 27.0 94 102 52 163 214.0 60.0 0.6 7 127.00 240.00 2.660
SA50ES 50 M45x3.0 35 30.0 107 112 60 185 241.0 66.0 0.6 6 156.00 290.00 3.400
SA50-1ES 50 M52x3.0 35 30.0 107 112 60 185 241.0 66.0 0.6 6 156.00 290.00 3.500
SA60ES 60 M52x3.0 44 38.0 115 135 72 210 277.5 80.0 1.0 6 245.00 450.00 5.900
SA60-1ES 60 M60x4.0 44 38.0 115 135 72 210 277.5 80.0 1.0 6 245.00 450.00 6.020
SA70ES 70 M56x4.0 49 42.0 125 160 87 235 315.0 92.0 1.0 6 315.00 610.00 8.200
SA70-1ES 70 M72x4.0 49 42.0 125 160 87 235 315.0 92.0 1.0 6 315.00 610.00 8.380
SA80ES 80 M64x4.0 55 47.0 140 180 100 270 360.0 105.0 1.0 6 400.00 750.00 12.000
SA80-1ES 80 M80x4.0 55 47.0 140 180 100 270 360.0 105.0 1.0 6 400.00 750.00 12.200
