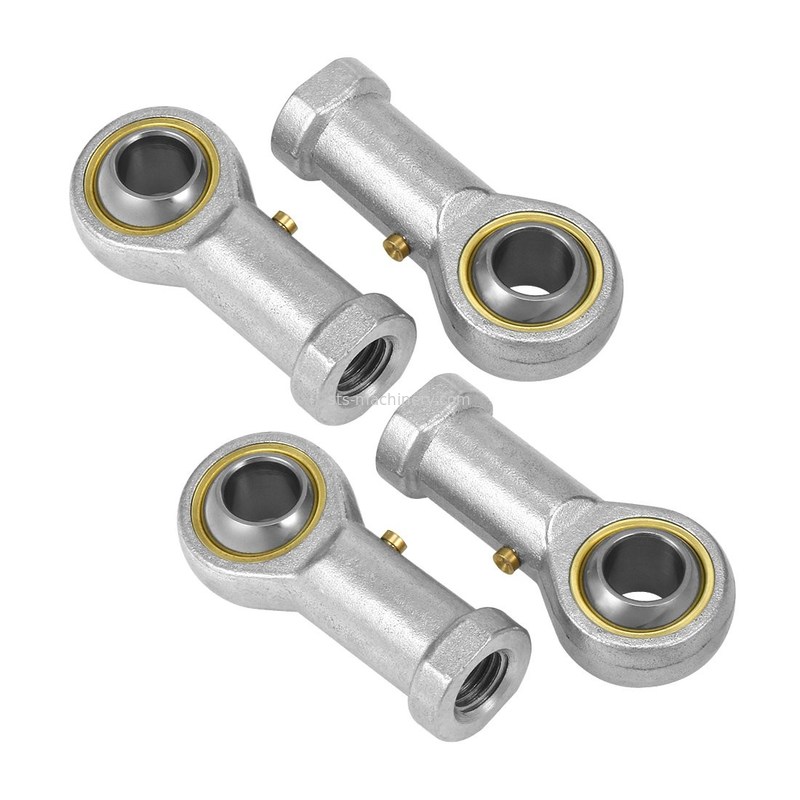

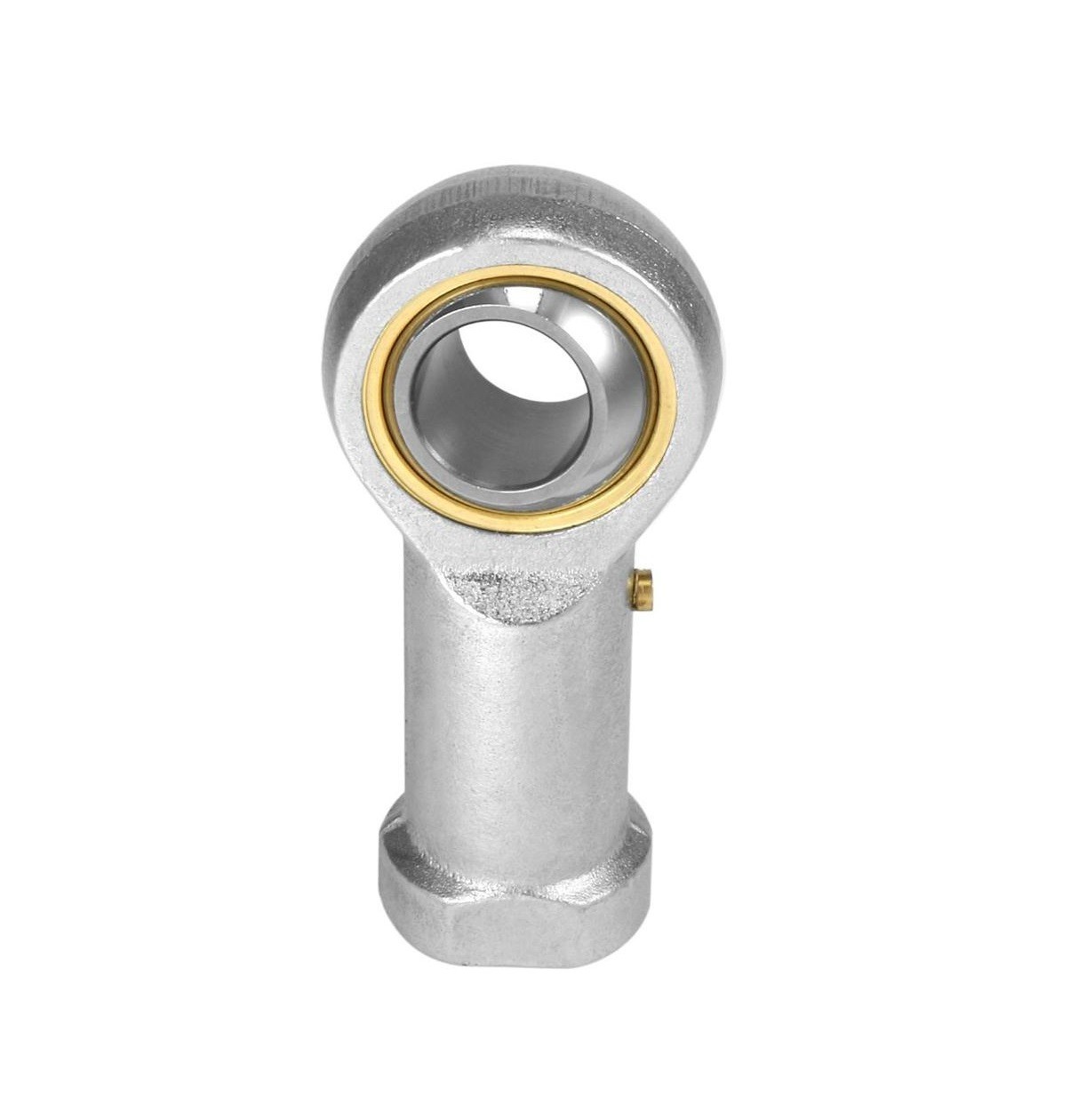

SIZP...S Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SIZP...S
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
SIZP...S  Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S SIZP15S SIZP19S SIZP25S)SIZP...S  Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S SIZP15S SIZP19S SIZP25S)
Product Parameters

Technical specification

SIZP...S
Specification:
- Rod body with right or left-hand female thread.
- Outer race lined with bronze liner.
- Surface of rod body zinc plated.
- In inch dimension series.
SIZP...S  Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S SIZP15S SIZP19S SIZP25S)



SIZP...S  Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S SIZP15S SIZP19S SIZP25S)
SIZP...S  Series Female Thread Rod Ends/Heim Joint /Rose Joint/ Bearings(SIZP4S SIZP6S SIZP7S SIZP9S SIZP11S SIZP12S SIZP15S SIZP19S SIZP25S)

Bearing No. Dimensions (mm) Load ratings
(KN)
Mass
d d3
2B
B C1 d1 R1S d2 h1 L3
min
L4 L5 d4 d5 w α
C C0 kg
SIZP4S 4.83 10-32 7.92 6.35 7.8 0.3 15.88 26.97 14.27 34.91 4.75 7.54 10.31 7.92 10 3.4 4.6 0.015
SIZP6S 6.35 1/4-28 9.53 7.14 8.4 0.3 19.05 33.32 19.05 42.85 4.75 9.15 11.91 9.53 13 4.5 7.7 0.025
SIZP7S 7.94 5/16-24 11.1 8.74 11.4 0.3 22.23 34.93 19.05 46.04 4.75 10.72 12.70 11.10 10 6.9 8.4 0.036
SIZP9S 9.53 3/8-24 12.7 10.31 13.1 0.6 25.40 41.28 23.80 53.98 6.35 13.89 17.45 14.27 9 9.4 10.0 0.061
SIZP11S 11.11 7/16-20 14.27 11.10 14.9 0.6 28.58 46.02 26.97 60.31 6.35 15.49 19.05 15.88 11 11.0 13.0 0.081
SIZP12S 12.70 1/2-20 15.88 12.70 17.7 0.6 33.32 53.98 30.15 70.64 6.35 18.67 22.23 19.05 9 15.0 19.0 0.133
SIZP15S 15.88 5/8-18 19.05 14.27 21.3 0.6 38.10 63.50 38.10 82.55 7.92 21.84 25.40 22.23 11 20.0 21.0 0.190
SIZP19S 19.05 3/4-16 22.23 17.45 24.8 0.6 44.45 73.03 44.45 95.25 7.92 25.02 28.58 25.40 10 29.0 29.0 0.285
SIZP25S 25.40 5/4-12 34.93 25.40 32.2 0.6 69.85 104.78 53.98 139.70 11.10 37.72 44.45 38.10 14 60.0 101.0 1.000
