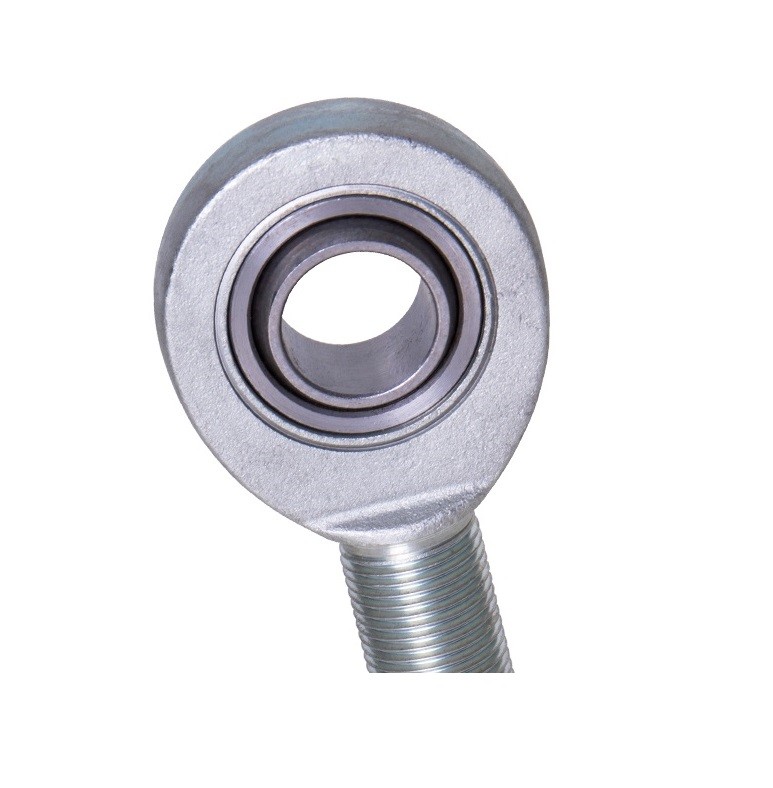

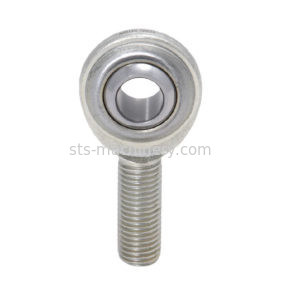

SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SAZJ
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)
Product Parameters

Technical specification

SAZJ
Specification:
- Rod body with right or left-hand male thread.
- Rod body pressed around inner ring.
- Surface of rod body zinc plated.
- In inch dimension series.
SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)



SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)
SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)

Bearing No. Dimensions (mm) Load Ratings
(KN)
Mass
d d3
3A
B C1 l1
min
d2 h l2 d1
min
R1s α
C C0 kg
SAZJ4 4.826 10-32 7.92 5.94 19.05 15.88 31.75 39.70 7.8 0.3 10.0 3.6 3.8 0.014
SAZJ6 6.350 1/4-28 9.53 6.35 25.40 19.05 39.67 49.20 8.4 0.3 13.5 5.4 6.6 0.018
SAZJ7 7.938 5/16-24 11.10 7.92 31.75 22.23 47.63 58.72 11.4 0.3 11.0 8.5 12.0 0.032
SAZJ9 9.525 3/8-24 12.70 9.12 31.75 25.40 49.23 61.93 13.1 0.6 11.0 11.0 16.0 0.050
SAZJ11 11.113 7/16-20 14.27 10.31 34.93 28.58 53.98 68.28 14.9 0.6 10.5 14.0 21.0 0.068
SAZJ12 12.700 1/2-20 15.88 11.50 38.10 33.32 61.93 78.59 17.7 0.6 10.0 18.0 28.0 0.110
SAZJ15 15.875 5/8-18 19.05 12.29 41.28 38.10 66.68 85.73 21.3 0.6 13.0 23.0 29.0 0.160
SAZJ19 19.050 3/4-16 22.23 15.06 44.45 44.45 73.03 95.25 24.8 0.6 12.0 34.0 44.0 0.26
Packaging & Shipping

SAZJ Series Rod Ends/Heim Joint/ Rose Joint/ Bearings (SAZJ4 SAZJ6 SAZJ7 SAZJ9 SAZJ11 SAZJ12 SAZJ15 SAZJ19)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
