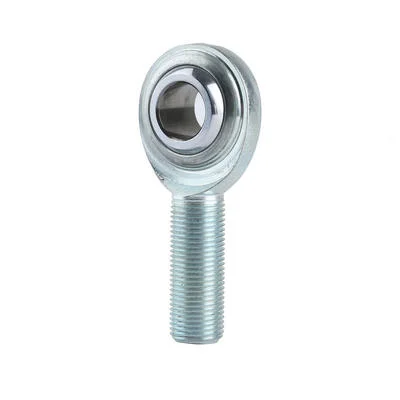

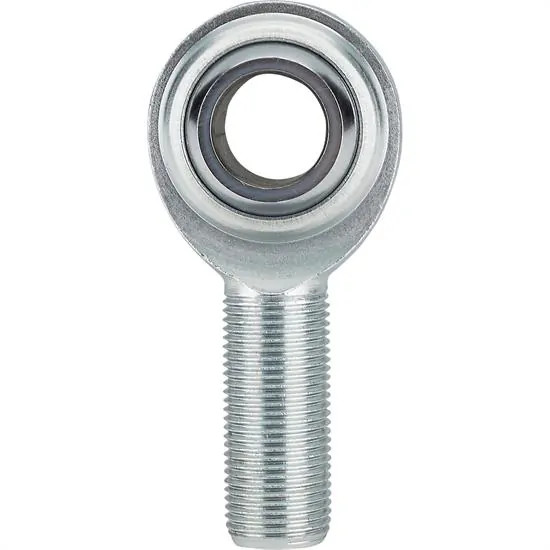

CM Series Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: CM
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
CM Series  Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)CM Series  Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)
Product Parameters

Technical specification

CM
Specification:

- Rod body with right or left-hand male thread.
- Rod body pressed around inner ring.
- Surface of rod body zinc plated.
- In inch dimension series.
CM Series  Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)



CM Series  Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)
CM Series  Rod Ends/Heim Joint/ Rose Joint/ Bearings ( CM3 CM4 CM5 CM6 CM7 CM8 CM10 CM12)

Bearing No. Dimensions (mm) Load Ratings Mass
d d3
3A
B C1 d2 h1 L3
min
dK α
KN kg
CM3 4.826 10-32 7.92 5.94 15.88 31.75 19.05 11.10 10.0 5.355 0.014
CM4 6.350 1/4-28 9.53 6.35 19.05 39.67 25.40 12.70 13.5 9.839 0.018
CM5 7.938 5/16-24 11.10 7.92 22.23 47.63 31.75 15.88 11.0 15.910 0.032
CM6 9.525 3/8-24 12.70 9.12 25.40 49.23 31.75 18.26 11.0 22.542 0.050
CM7 11.113 7/16-20 14.27 10.31 28.58 53.98 34.93 20.62 10.5 28.223 0.068
CM8 12.700 1/2-20 15.88 11.50 33.32 61.93 38.10 23.80 10.0 37.087 0.109
CM10 15.875 5/8-18 19.05 12.29 38.10 66.68 41.28 28.58 13.0 43.203 0.163
CM12 19.050 3/4-16 22.23 15.06 44.45 73.03 44.45 33.32 12.0 63.193 0.259
