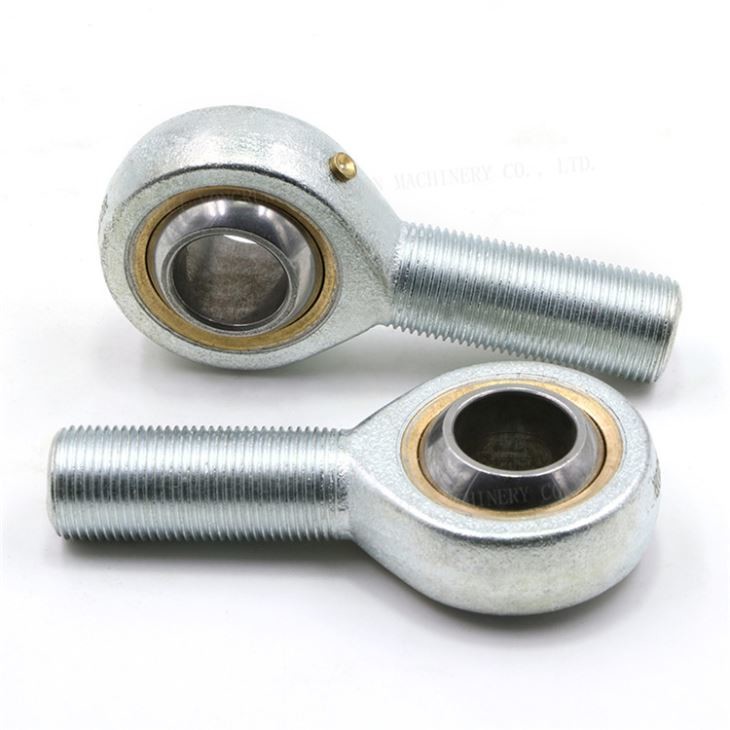

POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: POSB
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 POSB12 POSB16)POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 POSB12 POSB16)
Product Parameters

Technical specification

POSB

As series POS, but in inch dimensions rod end.

Specification:
- Rod ends with L-or right-handed external thread.
- Outer sphere inlaid with bronze lining.
- The surface of rod body zinc, lubricating oil hole or oil cup.
POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 POSB12 POSB16)



POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 POSB12 POSB16)
POSB Series Inch Male Thread Rod Ends/Heim Joint /Rose Joint Bearings(POSB3 POSB4 POSB5 POSB6 POSB7 POSB8 POSB10 POSB12 POSB16)

Bearing
No.
Dimensions(inch/mm) Load
ratings (N)
≈a° Mass
(kg)
d d2 B C1 d3 L2 L1 h d1 C Co
POSB3 .1900
4.826
.625
15.88
.312
7.92
.250
6.35
.1900
-32UNF
1.536
39.70
.750
19.05
1.25
31.75
.306
7.77
780 1120 13 0.014
POSB4 .2500
6.350
.750
19.05
.375
9.53
.281
7.14
.2500
-28UNF
1.937
49.20
1.000
25.40
1.562
39.67
.355
9.02
1030 2040 13 0.023
POSB5 .3125
7.938
.875
22.23
.437
11.10
.344
8.74
.3125
-24UNF
2.312
58.72
1.250
31.75
1.875
47.63
.447
11.35
1530 3270 13 0.036
POSB6 .3750
9.525
1.0000
25.40
.500
12.70
.406
10.31
.3750
-24UNF
2.438
61.93
1.250
31.75
1.938
49.23
.517
13.13
2080 4980 13 0.054
POSB7 .4375
11.11
1.125
28.58
.562
14.27
.437
11.10
.4375
-20UNF
2.688
68.28
1.375
34.93
2.125
53.98
.586
14.88
2520 6020 13 0.077
POSB8 .5000
12.700
1.312
33.32
.625
15.88
.500
12.70
.5000
-20UNF
3.094
78.59
1.500
38.1
2.438
61.93
.698
17.73
3300 8370 13 0.127
POSB10 .6250
15.875
1.500
38.10
.750
19.05
.562
14.27
.6250
-18UNF
3.375
85.73
1.625
41.28
2.625
66.68
.839
21.31
4500 9050 13 0.186
POSB12 .7500
19.050
1.750
44.46
.875
22.23
.687
17.45
.7500
-16UNF
3.75
95.25
1.750
44.45
2.875
73.03
.978
24.84
6410 12700 13 0.295
POSB16 1.0000
25.400
2.750
69.85
1.375
34.93
1.000
25.40
1.2500
-12UNF
5.50
139.7
2.125
53.98
4.125
104.8
1.269
32.23
13300 19500 13 1.129
