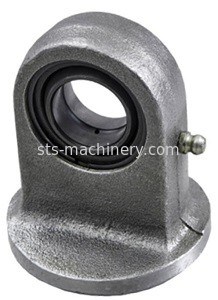

TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: TS...NF
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description


Hydraulic Rod Ends are designed for especially high forces and are used for hydraulic cylinders.


Applications:

Mining & quarrying, Heavy construction, Motorsport, Offshore oil & gas, Marine.

TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)

Product Parameters

Technical specification:

Specification:

-Rod ends housing with right or left-hand female thread.
-It is made up of a radial spherical plain bearing GE... ES

or GE... ES 2RS and rod end housing.
-Rod end housing with a lubricating hole or grease nipple.
TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)
TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)
TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)

Bearing No. Dimensions(mm) Load ratings (KN)
d d1 d2 B C1 L7 L L1 D a Cr Cor
TS20NF 20 24.1 50 16 19 38 63 13 60 9 30 67
TS25NF 25 29.3 55 20 23 45 72.5 14 73 7 48 39.5
TS30NF 30 34.2 65 22 28 51 83.5 15 95 6 62 118
TS35NF 35 39.7 83 25 30 61 102.5 15 105 6 80 196
TS40NF 40 45 100 28 35 69 119 16 115 7 100 305
TS50NF 50 56 123 35 40 88 149.5 19 145 6 156 441
TS60NF 60 66.8 140 44 50 100 170 21 170 6 245 570



Packaging & Shipping



TS...NF Series Hydraulic Rod Ends Bearings For Hydraulic Cylinders (TS20NF TS25NF TS30NF TS35NF TS40NF TS50NF TS60NF)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
