JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: JM
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

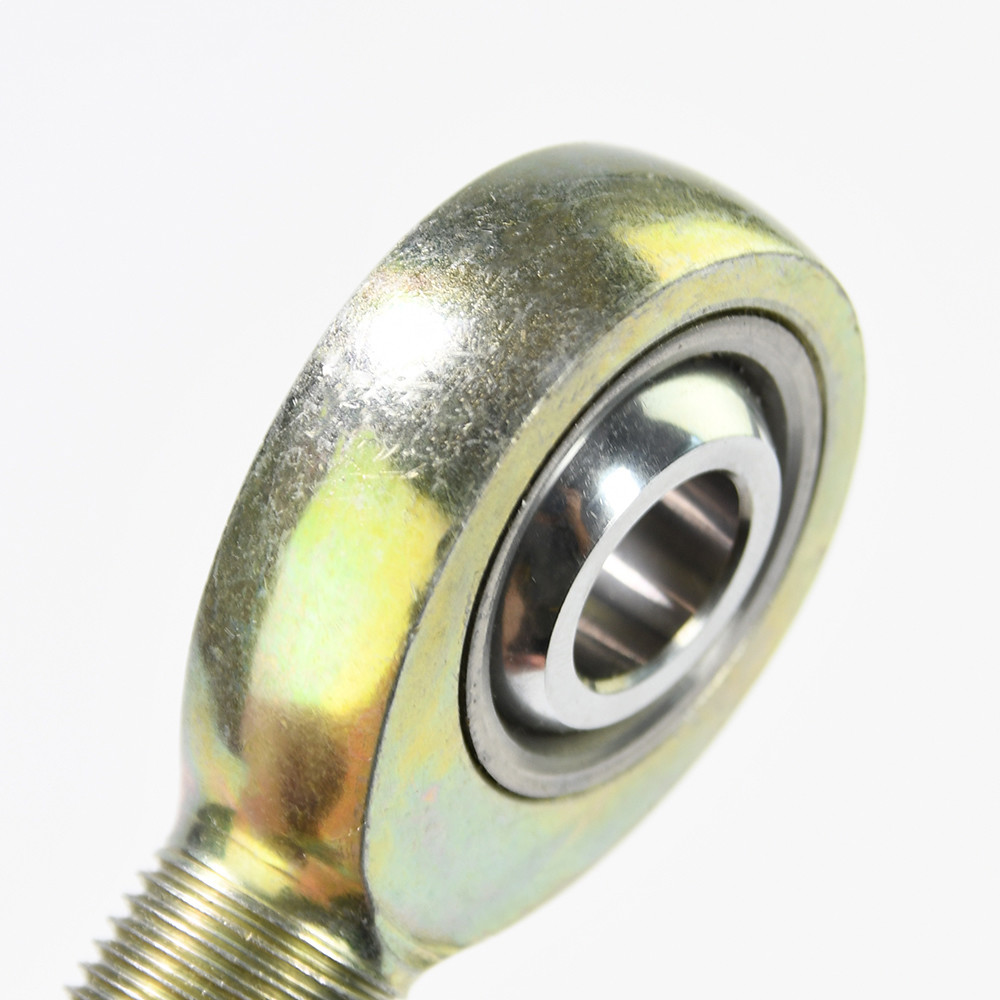

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 JM16-1 JM16-2)JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 JM16-1 JM16-2)
Product Parameters

Technical specification

JM....
Specification:
- Rod body with right or left-hand male thread.
- Outer race lined with bronze liner.
- Surface of rod body zinc plated.
- In inch dimension series.

JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 JM16-1 JM16-2)



JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 JM16-1 JM16-2)
JM Series Male Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings(JM2 JM3 JM4 JM5 JM6 JM7 JM8 JM10 JM12 JM14 JM14-1 JM16 JM16-1 JM16-2)

Bearing No. Dimensions (mm) Load Ratings Mass
d d3
3A
B C1 d2 h1 L3
min
dK α
KN kg
JM2 3.175 6-32 6.35 4.75 12.70 23.80 14.27 7.92 8.0 2.236 0.006
JM3 4.826 10-32 7.92 6.35 15.88 31.75 19.05 11.10 6.5 5.197 0.013
JM4 6.350 1/4-28 9.53 7.14 19.05 39.67 25.40 12.70 8.0 9.600 0.020
JM5 7.938 5/16-24 11.10 8.74 22.23 47.63 31.75 15.88 7.0 12.385 0.033
JM6 9.525 3/8-24 12.70 10.31 25.40 49.23 31.75 18.26 6.0 17.416 0.051
JM7 11.113 7/16-20 14.27 11.10 28.58 53.98 34.93 20.62 7.0 18.759 0.073
JM8 12.700 1/2-20 15.88 12.70 33.32 61.93 38.10 23.80 6.0 29.624 0.113
JM10 15.875 5/8-18 19.05 14.27 38.10 66.68 41.28 28.58 8.0 32.752 0.173
JM12 19.050 3/4-16 22.23 17.45 44.45 73.03 44.45 33.32 7.0 51.237 0.273
JM14 22.225 7/8-14 22.23 19.43 50.80 85.73 50.80 34.93 3.5 82.185 0.411
JM14-1 22.225 7/8-14 22.23 17.45 50.80 85.73 47.63 33.32 6.0 101.601 0.411
JM16 25.400 1 1/4-12 34.93 25.40 69.85 104.78 53.98 47.63 8.5 193.670 1.091
JM16-1 25.400 1-14 34.93 25.40 69.85 104.78 53.98 47.63 8.5 193.670 0.965
JM16-2 25.400 1-12 34.93 25.40 69.85 104.78 53.98 47.63 8.5 193.670 0.965
