JF Series Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: JF
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy

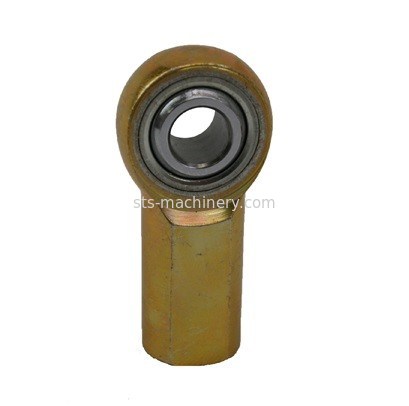

JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)
Product Parameters

Technical specification

JF....
Specification:
- Rod body with right or left-hand female thread.
- Outer race lined with bronze liner.
- Surface of rod body zinc plated.
- In inch dimension series.
JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)



JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)
JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)
JF Series  Female Thread Rod Ends/Heim Joint/ Rose Joint/ Bearings( JF2 JF3 JF4 JF5 JF6 JF7 JF8 JF10 JF12 JF14 JF14-1 JF16 JF16-1 JF16-2)
Bearing No. Dimensions (mm) Load Ratings weight
d d3
2B
B C1 d5 d2 h1 L3
min
dK W α
KN kg
JF2 3.175 6-32 6.35 4.75 7.92 12.70 20.62 11.10 7.92 6.35 8.0 5.344 0.009
JF3 4.826 10-32 7.92 6.35 10.31 15.88 26.97 14.27 11.10 7.92 6.5 6.805 0.017
JF4 6.350 1/4-28 9.53 7.14 11.91 19.05 33.32 19.05 12.70 9.53 8.0 11.297 0.027
JF5 7.938 5/16-24 11.10 8.74 12.70 22.23 34.93 19.05 15.88 11.10 7.0 13.934 0.042
JF6 9.525 3/8-24 12.70 10.31 17.45 25.40 41.28 23.80 18.26 14.27 6.0 17.416 0.069
JF7 11.113 7/16-20 14.27 11.10 19.05 28.58 46.02 26.97 20.62 15.88 7.0 18.759 0.090
JF8 12.700 1/2-20 15.88 12.70 22.23 33.32 53.98 30.15 23.80 19.05 6.0 29.624 0.149
JF10 15.875 5/8-18 19.05 14.27 25.40 38.10 63.50 38.10 28.58 22.23 8.0 32.752 0.216
JF12 19.050 3/4-16 22.23 17.45 28.58 44.45 73.03 44.45 33.32 25.40 7.0 51.237 0.328
JF14 22.225 7/8-14 22.23 19.43 33.02 50.80 85.73 47.63 34.93 28.58 3.5 82.185 0.467
JF14-1 22.225 7/8-14 22.23 17.45 33.32 50.80 88.90 46.02 33.32 30.15 6.0 101.601 0.467
JF16 25.400 1 1/4-12 34.93 25.40 41.28 69.85 104.78 53.98 47.63 38.10 8.5 193.670 0.964
JF16-1 25.400 1-14 34.93 25.40 41.28 69.85 104.78 53.98 47.63 38.10 8.5 193.670 1.093
JF16-2 25.400 1-12 34.93 25.40 41.28 69.85 104.78 53.98 47.63 38.10 8.5 193.670 1.093
