SA...TK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(SA5T/K SA6T/K SA8T/K SA10T/K SA12T/K )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SA...TK
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union
Materials: Chrome Steel Or Stainless Steel Service: OEM ODM
Trademark: Buyer′s Brand /Neutral

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods.The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
  •

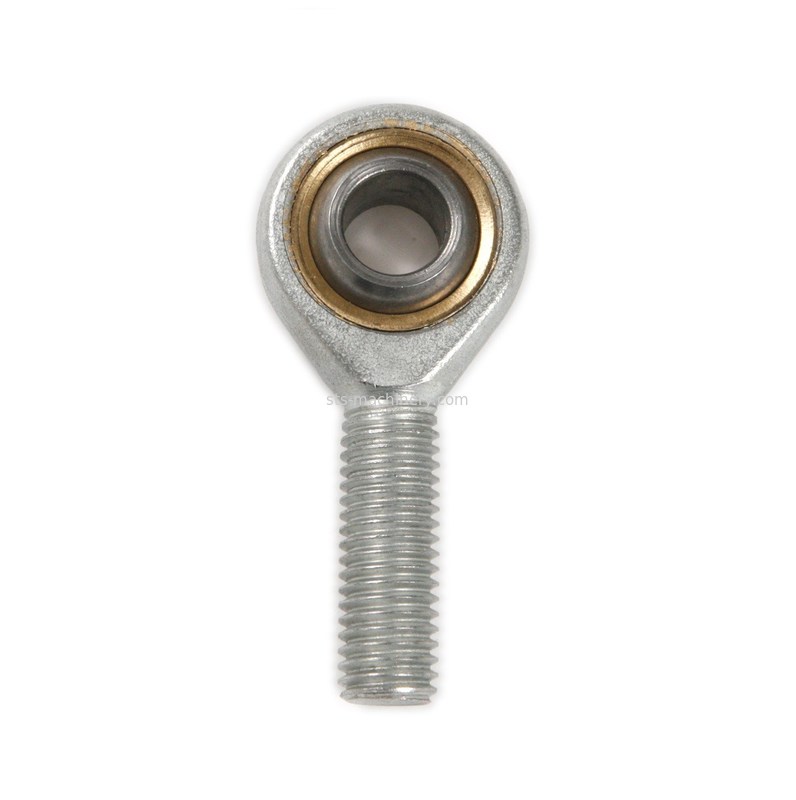

  • SA...TK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(SA5T/K SA6T/K SA8T/K SA10T/K SA12T/K ) 0

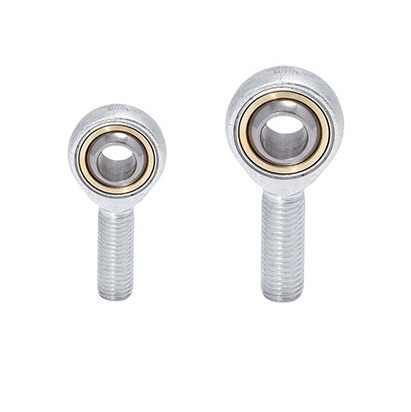

  • SA...TK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(SA5T/K SA6T/K SA8T/K SA10T/K SA12T/K ) 1
  • -Right & left-hand male thread.
    -Body
    • C45,zinc plated, yellow/clear or white-blue passivated.
    -Ball
    • GCr15,equivalent 52100 steel, RC 56 min., hard chromate plated.
    -Outer race Lined with bronze liner and PTFE.
    -For left-hand thread, please add suffix "L",e.g.SAL10T/K.

SA...TK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(SA5T/K SA6T/K SA8T/K SA10T/K SA12T/K ) 2



Bearing No. Dimensions (mm) Load Ratings (KN) Mass
d d3
6g
B C1 l1
min
d2 l7
min
h l2 dk R1s α
C C0 kg
SA5T/K 5 M5x0.8 8 6.00 19 18   33 42.0 11.11 0.3 13 5.7 6.00 0.013
SA6T/K 6 M6x1.0 9 6.75 21 20   36 46.0 12.70 0.3 13 7.2 7.65 0.020
SA8T/K 8 M8x1.25 12 9.00 25 24   42 54.0 15.88 0.3 14 11.6 12.90 0.038
SA10T/K 10 M10x1.5 14 10.50 28 28   28 62.0 19.05 0.3 13 14.5 18.00 0.055
SA12T/K 12 M12x1.75 16 12.00 32 32   54 70.0 22.23 0.3 13 17.0 24.00 0.085
SA12-1T/K 12 M12x1.25 16 12.00 32 32   54 70.0 22.23 0.3 13 17.0 24.00 0.085
SA14T/K 14 M14x2.0 19 13.50 36 36 18 60 78.0 25.40 0.3 16 24.0 31.00 0.140
SA16T/K 16 M16x2.0 21 15.00 37 42 21 66 87.0 28.58 0.3 15 28.5 39.00 0.210
SA16-1T/K 16 M16x1.5 21 15.00 37 42 21 66 87.0 28.58 0.3 15 28.5 39.00 0.280
SA18T/K 18 M18x1.5 23 16.50 41 44 22 72 94.0 31.75 0.3 15 42.5 47.50 0.280
SA20T/K 20 M20x1.5 25 18.00 45 50 25 78 103.0 34.93 0.3 14 42.5 57.00 0.380
SA22T/K 22 M22x1.5 28 20.00 48 54 27 84 111.0 38.10 0.3 15 57.0 68.00 0.480
SA25T/K 25 M24x2.0 31 22.00 55 60 30 94 124.0 42.85 0.3 15 68.0 85.00 0.640
SA28T/K 28 M27x2.0 35 24.00 62 66 33 103 136.0 47.60 0.3 15 86.0 107.00 0.800
SA30T/K 30 M30x2.0 37 25.00 66 70 35 110 145.0 50.80 0.3 17 88.0 114.00 1.100
SA35T/K 35 M36x2.0 43 28.00. 85 81 41 140 180.5 57.10 0.3 16 - - 1.640
SA40T/K 40 M42x2.0 49 33.00 90 91 46 150 195.5 66.60 0.3 17 - - 2.300
SA50T/K 50 M48x2.0 60 45.00 105 117 59 185 243.5 82.50 0.3 12 - - 4.800



Packaging & Shipping



SA...TK Series Maintenance-Free Rod Ends/Heim Joint/ Rose Joint/ Bearings(SA5T/K SA6T/K SA8T/K SA10T/K SA12T/K ) 3



Our Advantages



1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
