PHS Series Female Thread Rod Ends/Heim Joint /Rose Joint Bearings( PHS14-1 PHS16 PHS16-1 PHS18 PHS20 PHS22 PHS25 PHS28 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: PHS
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union
Materials: Chrome Steel Or Stainless Steel Service: OEM ODM
Trademark: Buyer′s Brand /Neutral

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods.The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
  •

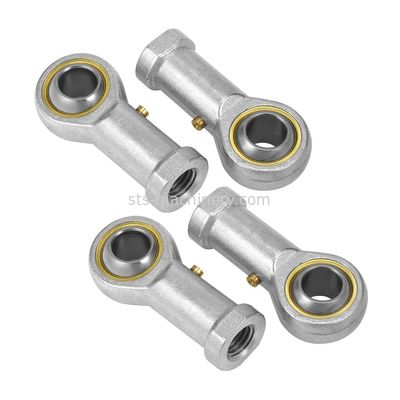

  • PHS Series Female Thread Rod Ends/Heim Joint /Rose Joint Bearings( PHS14-1 PHS16 PHS16-1 PHS18 PHS20 PHS22 PHS25 PHS28 ) 0
  • PHS Series Female Thread Rod Ends/Heim Joint /Rose Joint Bearings( PHS14-1 PHS16 PHS16-1 PHS18 PHS20 PHS22 PHS25 PHS28 ) 1
  •             Our Bearing No. : PHS               SKF :SIKAC 5 M               INA:GAKR..-PB
  • Bearing No. Dimensions(mm) Load Ratings
    (KN)
    Mass
    d d3
    6H
    B C1 L3
    min
    W d2 d1 h1 L4 L5 d4 d5 dk α
    C C0 kg
    PHS4 4 M4x0.7 7 5.25 8 8 14 6.50 24 31 4 8.0 9.5 9.525 13 3.00 5.0 0.009
    PHS5 5 M5x0.8 8 6.00 10 9 16 7.70 27 35 4 8.5 11 11.110 13 3.25 5.7 0.016
    PHS6 6 M6x1.0 9 6.75 12 11 18 8.96 30 39 5 10.0 13 12.700 13 4.30 7.2 0.022
    PHS8 8 M8x1.25 12 9.00 16 14 22 10.40 36 47 5 12.5 16 15.880 14 7.20 11.6 0.047
    PHS10 10 M10x1.5 14 10.50 20 17 26 12.90 43 56 6.5 15.0 19 19.050 13 10.00 14.5 0.077
    PHS10-1 10 M10x1.25 14 10.50 20 17 26 12.90 43 56 6.5 15.0 19 19.050 13 10.00 14.5 0.077
    PHS12 12 M12x1.75 16 12.00 22 19 30 15.40 50 65 6.5 17.5 22 22.230 13 13.40 17.0 0.100
    PHS12-1 12 M12x1.25 16 12.00 22 19 30 15.40 50 65 6.5 17.5 22 22.230 13 13.40 17.0 0.100
    PHS14 14 M14x2.0 19 13.50 25 22 34 16.90 57 74 8 20.0 25 25.400 16 17.00 24.0 0.160
    PHS14-1 14 M14x1.5 19 13.50 25 22 34 16.90 57 74 8 20.0 25 25.400 16 17.00 24.0 0.160
    PHS16 16 M16x2.0 21 15.00 28 22 40 19.40 64 84 8 22.0 27 28.580 15 21.60 28.5 0.220
    PHS16-1 16 M16x1.5 21 15.00 28 22 40 19.40 64 84 8 22.0 27 28.580 15 21.60 28.5 0.220
    PHS18 18 M18x1.5 23 16.50 32 27 44 21.90 71 93 10 25.0 31 31.750 15 26.00 42.5 0.320
    PHS20 20 M20x1.5 25 18.00 33 30 50 24.40 77 102 10 27.5 34 34.930 14 31.50 42.5 0.420
    PHS22 22 M22x1.5 28 20.00 37 32 54 25.80 84 111 12 30.0 38 38.100 15 38.00 57.0 0.540
    PHS25 25 M24x2.0 31 22.00 42 36 60 29.60 94 124 12 33.5 42 42.850 15 47.50 68.0 0.730
    PHS28 28 M27x2.0 35 24.00 48 41 66 32.30 103 136 14 37.0 46 47.600 15 58.00 75.0 0.980
    PHS30 30 M30x2.0 37 25.00 51 41 70 34.80 110 145 15 40.0 50 50.800 17 64.00 88.0 1.100
    PHS30-1 30 M27x2.0 37 25.00 51 41 70 34.80 110 145 15 40.0 50 50.800 17 64.00 88.0 1.100
