| Place of Origin: | China |
|---|---|
| Certification: | ISO |
| Minimum Order Quantity: | 1 |
| Price: | 1-20 |
| Packaging Details: | General Export Packing |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, PayPal |
A self-aligning ball bearing has two rows of balls with common spherical raceways in the outer ring.

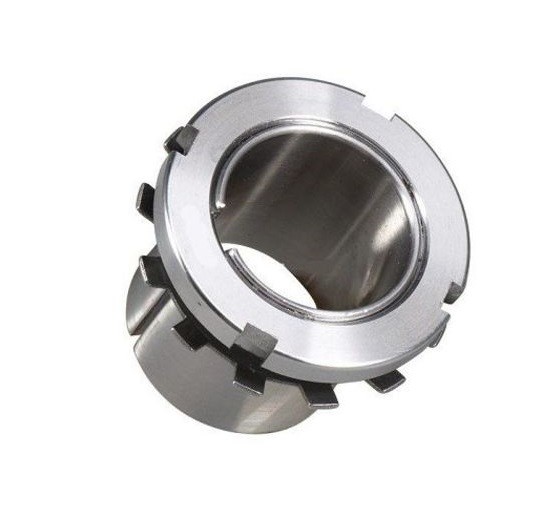

These bearings are made with seal or without seal. They are also available with tapered bore and adapter sleeve.
It has the ability to conciliate the angle error, and also the design of sealed and non-lubricated, so it's suitable for working conditions without maintenance.
Applications and Industry:
Industrial fans
Agriculture
Material handling
Food and beverage
Pulp and paper
Textile machines
Plastic machinery
Medical equipment
Various industrial machinery.
Technical specification
Suffix 'K'---- Tapered bore
Prefix 'S'--- Stainless steel
We can also provide stainless steel self-aligning ball bearings.
| Bearing No. | Boundary Dimensions ( mm ) | Mass (kg) | ||
| Model # | d | D | B | |
| 1307 | 35 | 80 | 21 | 0.51 |
| 1307 K | 35 | 80 | 21 | 0.51 |
| 1308 | 40 | 90 | 23 | 0.72 |
| 1308 K | 40 | 90 | 23 | 0.72 |
| 1309 | 45 | 100 | 25 | 0.96 |
| 1309 K | 45 | 100 | 25 | 0.96 |
| 1310 | 50 | 110 | 27 | 1.20 |
| 1310 K | 50 | 110 | 27 | 1.20 |
| 1311 | 55 | 120 | 29 | 1.60 |
| 1311 K | 55 | 120 | 29 | 1.60 |
| 1312 | 60 | 130 | 31 | 1.95 |
| 1312 K | 60 | 130 | 31 | 1.95 |
| 1313 | 65 | 140 | 33 | 2.42 |
| 1313 K | 65 | 140 | 33 | 2.42 |
| 1314 | 70 | 150 | 35 | 3.00 |
| 1315 | 75 | 160 | 37 | 3.55 |
| 1315 K | 75 | 160 | 37 | 3.55 |
| 1316 | 80 | 170 | 39 | 4.17 |
| 1316 K | 80 | 170 | 39 | 4.17 |
| 1317 | 85 | 180 | 41 | 5.00 |
| 1318 | 90 | 190 | 43 | 5.80 |
| 1318 K | 90 | 190 | 43 | 5.80 |
| 1319 | 95 | 200 | 45 | 6.70 |
| 1320 | 100 | 215 | 47 | 8.30 |
| 1320 K | 100 | 215 | 47 | 8.30 |
| 1322 K | 110 | 240 | 50 | 12.00 |
| Item | Dimension(mm) | Bearing No. | Mass(kg) | ||||
| d | d1 | B1 | d2 | Spherical Ball Bearing | Spherical Roller Bearing | ||
| H302 | 15 | 12 | 22 | 25 | 1302K 2202K | ||
| H303 | 17 | 14 | 24 | 28 | 1303K 2203K | ||
| H304 | 20 | 17 | 28 | 32 | 1304K 2204K | 21304K | 0.04 |
| H305 | 25 | 20 | 29 | 38 | 1305K 2205K | 21305K | 0.071 |
| H306 | 30 | 25 | 31 | 45 | 1306K 2206K | 21306K | 0.095 |
| H307 | 35 | 30 | 35 | 52 | 1307K 2207K | 21307K | 0.14 |
| H308 | 40 | 35 | 36 | 58 | 1308K 2208K | 21308K 22208K | 0.17 |
| H309 | 45 | 40 | 39 | 65 | 1309K 2209K | 21309K 22209K | 0.23 |
| H310 | 50 | 45 | 42 | 70 | 1310K 2210K | 21310K 22210K | 0.27 |
| H311 | 55 | 50 | 45 | 75 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 47 | 80 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 50 | 85 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 52 | 92 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 55 | 98 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 59 | 105 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 63 | 110 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 65 | 120 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 68 | 125 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 71 | 130 | 1320K 2220K | 21320K 22220K | 1.6 |
| H322 | 110 | 100 | 77 | 145 | 1322K 2222K | 21322K 22222K | 2.05 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
