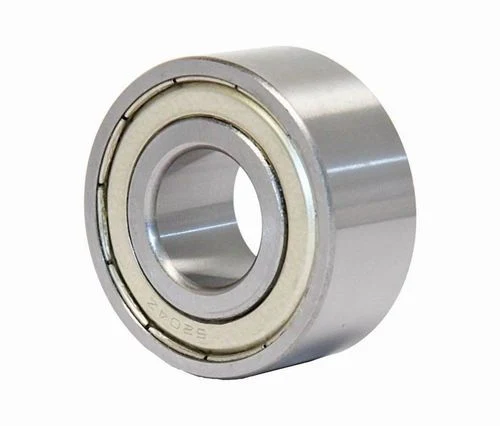

Double Row Angular Contact Ball Bearings 5205 5205ZZ 5205 2RS

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

We offer comprehensive ranges of angular contact ball bearings, which are available in:
- Single row and double row
- Open and sealed types
- Contact angle of 15, 30 or 40 degree
- Chrome steel, ceramic or hybrid materials

- Polyamide, steel and brass cage assemblies

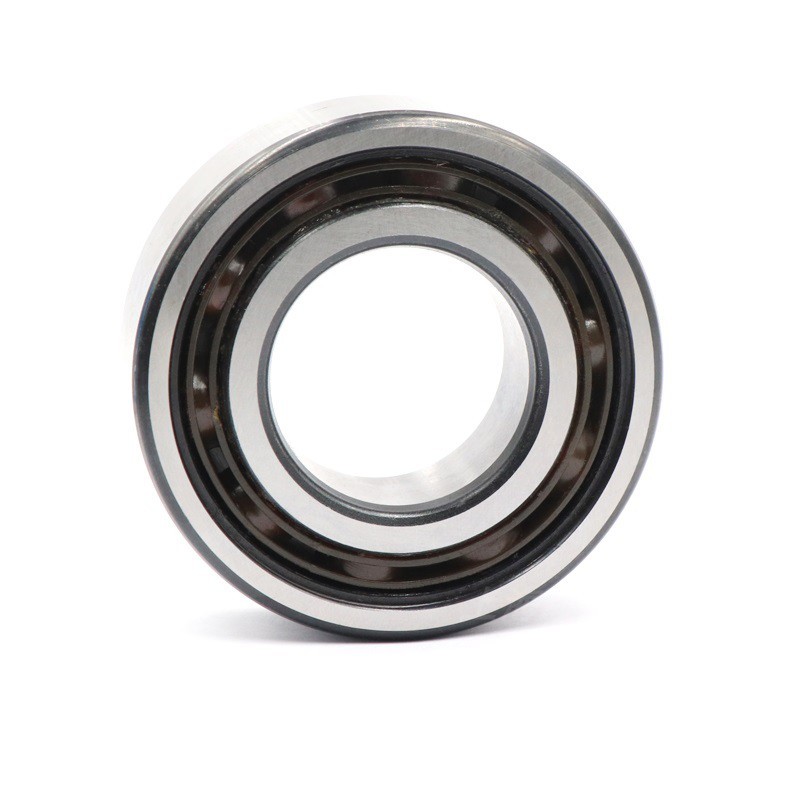

Double Row Angular Contact Ball Bearings (5205 5205ZZ 5205 2RS 5206 5206ZZ 5206 2RS 5207 5207ZZ 5207 2RS 5208 5208ZZ 5208 2RS 5209 5209ZZ 5209 2RS 5210)
Double Row Angular Contact Ball Bearings (5205 5205ZZ 5205 2RS 5206 5206ZZ 5206 2RS 5207 5207ZZ 5207 2RS 5208 5208ZZ 5208 2RS 5209 5209ZZ 5209 2RS 5210)
Double Row Angular Contact Ball Bearings (5205 5205ZZ 5205 2RS 5206 5206ZZ 5206 2RS 5207 5207ZZ 5207 2RS 5208 5208ZZ 5208 2RS 5209 5209ZZ 5209 2RS 5210)



Product Parameters

Double Row Angular Contact ball bearings have two rows of balls arranged back-to-back. The lines of action of the load at the contact between balls and raceways (load lines) diverge at the bearing axis and form an angle of 30° to the radial plane.

Double Row Angular Contact Ball Bearings (5205 5205ZZ 5205 2RS 5206 5206ZZ 5206 2RS 5207 5207ZZ 5207 2RS 5208 5208ZZ 5208 2RS 5209 5209ZZ 5209 2RS 5210)
Double Row Angular Contact Ball Bearings (5205 5205ZZ 5205 2RS 5206 5206ZZ 5206 2RS 5207 5207ZZ 5207 2RS 5208 5208ZZ 5208 2RS 5209 5209ZZ 5209 2RS 5210)



Bearing No. Bearing Type Bore Dia (d) Outer Dia (D) Width (B) Dynamic Load Rating (Cr) (kN) Static Load Rating (Cor) (kN)
5200 Open 10 mm 30mm 14.287mm 7.15 3.9
5200 ZZ Shielded 10 mm 30mm 14.287mm 7.15 3.9
5200 2RS Sealed 10 mm 30mm 14.287mm 7.15 3.9
5201 Open 12 mm 32mm 15.875mm 10.6 5.85
5201 ZZ Shielded 12 mm 32mm 15.875mm 10.6 5.85
5201 2RS Sealed 12 mm 32mm 15.875mm 10.6 5.85
5202 Open 15 mm 35mm 15.875mm 11.7 6.95
5202 ZZ Shielded 15 mm 35mm 15.875mm 11.7 6.95
5202 2RS Sealed 15 mm 35mm 15.875mm 11.7 6.95
5203 Open 17 mm 40mm 17.462mm 14.8 9
5203 ZZ Shielded 17 mm 40mm 17.462mm 14.8 9
5203 2RS Sealed 17 mm 40mm 17.462mm 14.8 9
5204 Open 20 mm 47mm 20.638mm 19.5 12.2
5204 ZZ Shielded 20 mm 47mm 20.638mm 19.5 12.2
5204 2RS Sealed 20 mm 47mm 20.638mm 19.5 12.2
5205 Open 25 mm 52mm 20.638mm 21.2 14.6
5205 ZZ Shielded 25 mm 52mm 20.638mm 21.2 14.6
5205 2RS Sealed 25 mm 52mm 20.638mm 21.2 14.6
5206 Open 30 mm 62mm 23.812mm 29.6 21.2
5206 ZZ Shielded 30 mm 62mm 23.812mm 29.6 21.2
5206 2RS Sealed 30 mm 62mm 23.812mm 29.6 21.2
5207 Open 35 mm 72mm 26.990mm 37.7 27.5
5207 ZZ Shielded 35 mm 72mm 26.990mm 37.7 27.5
5207 2RS Sealed 35 mm 72mm 26.990mm 37.7 27.5
5208 Open 40 mm 80mm 30.163mm 44.9 34
5208 ZZ Shielded 40 mm 80mm 30.163mm 44.9 34
5208 2RS Sealed 40 mm 80mm 30.163mm 44.9 34
5209 Open 45 mm 85mm 30.163mm 48.8 39
5209 ZZ Shielded 45 mm 85mm 30.163mm 48.8 39
5209 2RS Sealed 45 mm 85mm 30.163mm 48.8 39
5210 Open 50 mm 90mm 30.163mm 48.8 39
5210 ZZ Shielded 50 mm 90mm 30.163mm 48.8 39
5210 2RS Sealed 50 mm 90mm 30.163mm 48.8 39
5211 Open 55 mm 100mm 33.338mm 57.2 47.5
5211 ZZ Shielded 55 mm 100mm 33.338mm 57.2 47.5
5211 2RS Sealed 55 mm 100mm 33.338mm 57.2 47.5
5212 Open 60 mm 110mm 36.513mm 70.2 58.5
5212 ZZ Shielded 60 mm 110mm 36.513mm 70.2 58.5
5212 2RS Sealed 60 mm 110mm 36.513mm 70.2 58.5
5213 Open 65 mm 120mm 38.100mm 80.6 73.5
5213 ZZ Shielded 65 mm 120mm 38.100mm 80.6 73.5
5213 2RS Sealed 65 mm 120mm 38.100mm 80.6 73.5
5214 Open 70 mm 125mm 39.688mm 88.4 80
5214 ZZ Shielded 70 mm 125mm 39.688mm 88.4 80
5214 2RS Sealed 70 mm 125mm 39.688mm 88.4 80
5215 Open 75 mm 130mm 41.275mm 95.6 88
5215 ZZ Shielded 75 mm 130mm 41.275mm 95.6 88
5215 2RS Sealed 75 mm 130mm 41.275mm 95.6 88
5216 Open 80 mm 140mm 44.450mm 106 95
5216 ZZ Shielded 80 mm 140mm 44.450mm 106 95
5216 2RS Sealed 80 mm 140mm 44.450mm 106 95
5217 Open 85 mm 150mm 49.213mm 124 110
5217 ZZ Shielded 85 mm 150mm 49.213mm 124 110
5217 2RS Sealed 85 mm 150mm 49.213mm 124 110
5218 Open 90 mm 160mm 52.388mm 130 120
5218 ZZ Shielded 90 mm 160mm 52.388mm 130 120
5218 2RS Sealed 90 mm 160mm 52.388mm 130 120
5219 Open 95 mm 170mm 55.563mm 165 153
5219 ZZ Shielded 95 mm 170mm 55.563mm 165 153
5219 2RS Sealed 95 mm 170mm 55.563mm 165 153
5220 Open 100 mm 180mm 60.325mm 186 173
5220 ZZ Shielded 100 mm 180mm 60.325mm 186 173
5220 2RS Sealed 100 mm 180mm 60.325mm 186 173
