Needle Roller Bearing Cage Assemblies Thrust Bearing

Basic Information
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

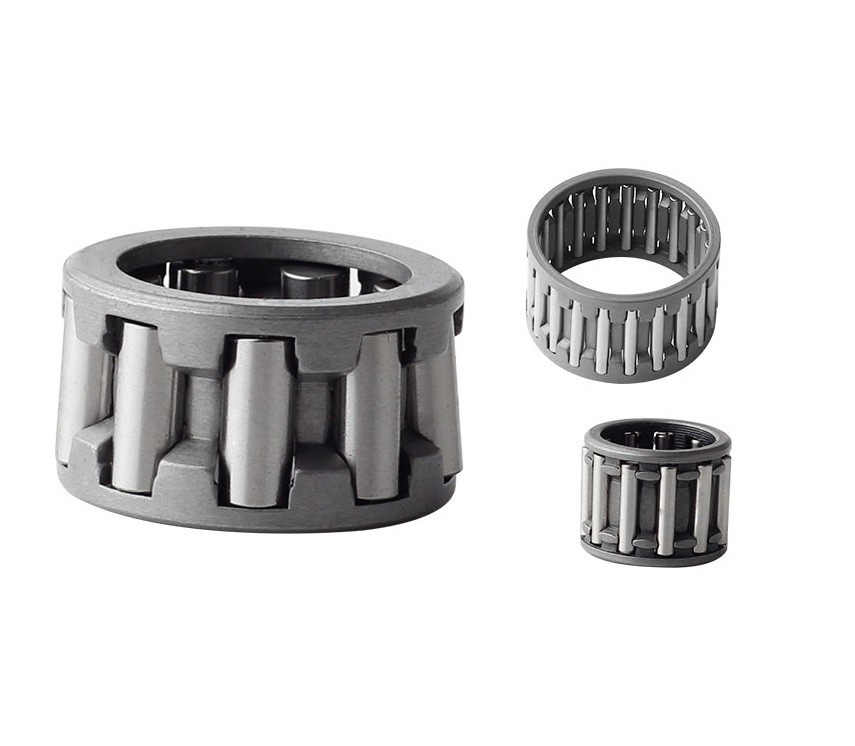

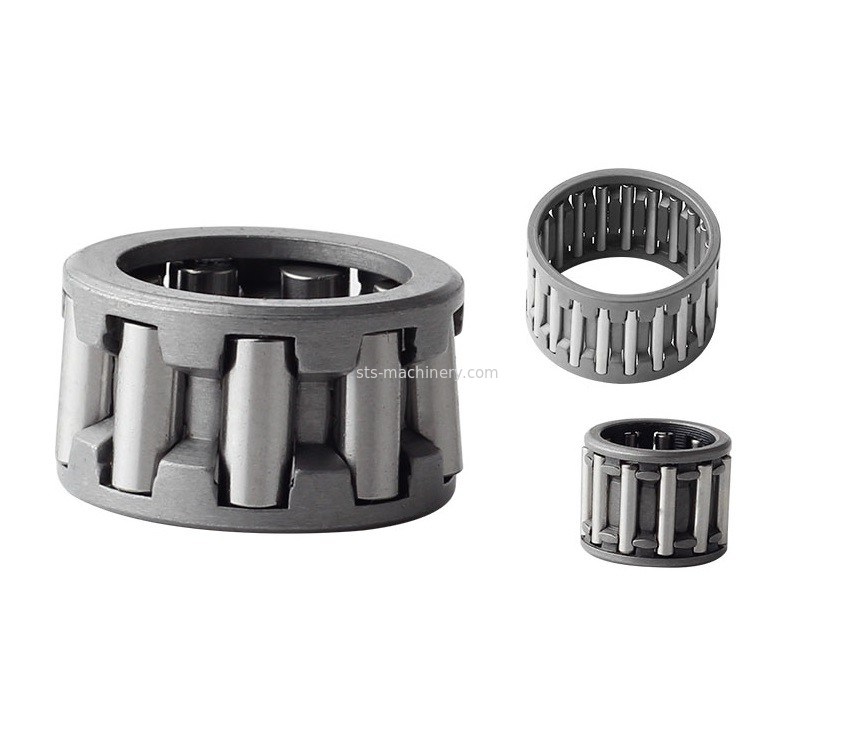

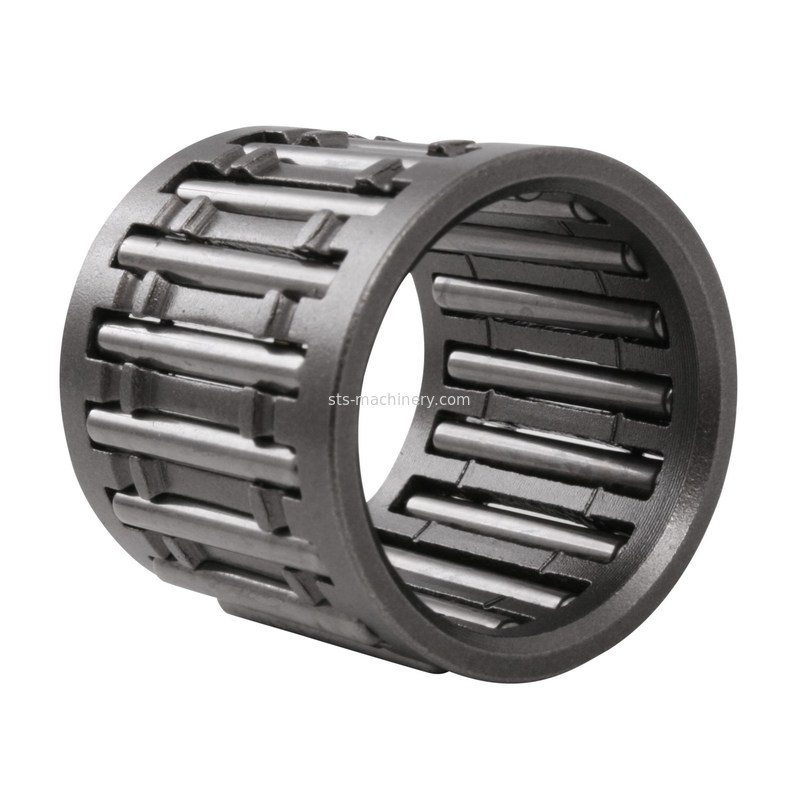

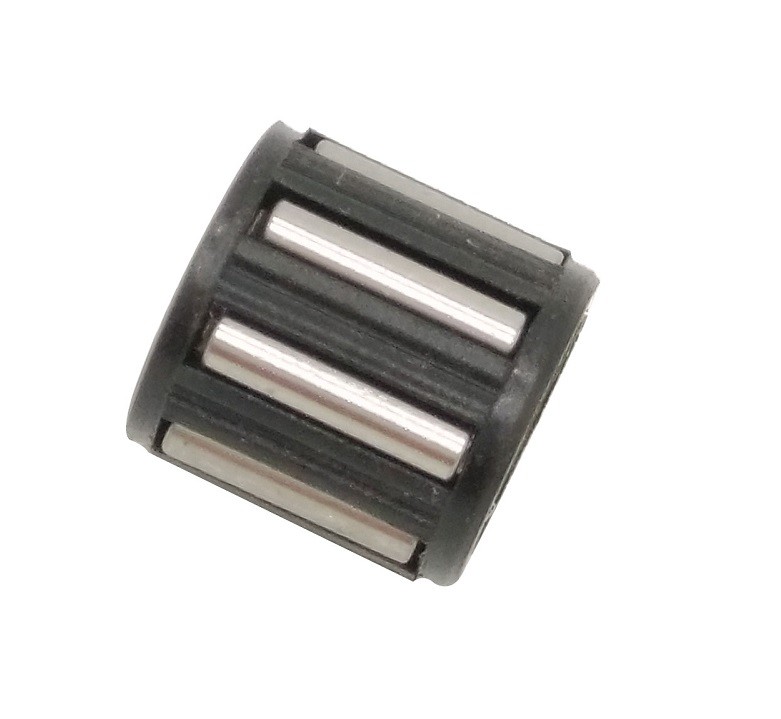

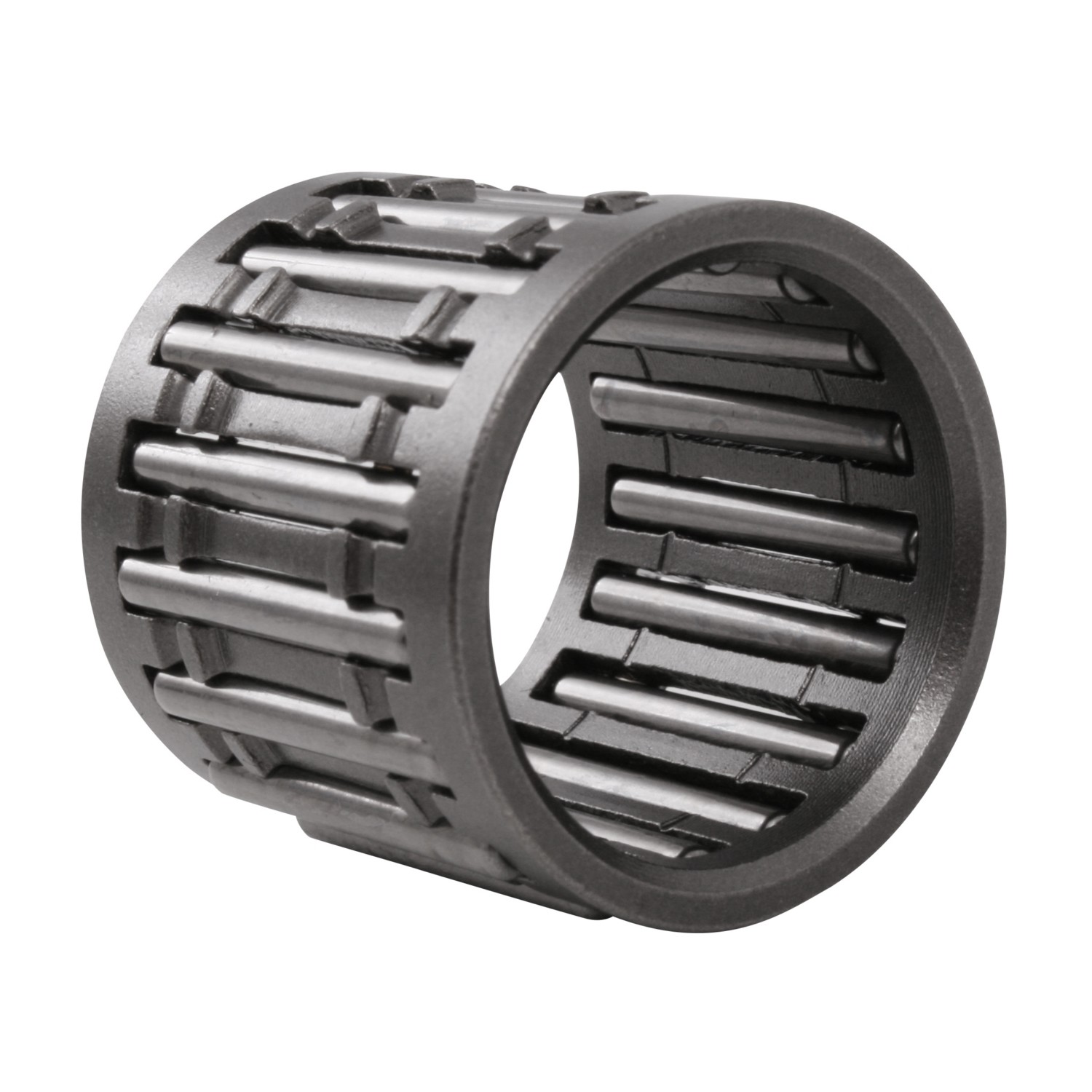

Needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.

Needle Roller Bearing Cage Assemblies Thrust Bearing
Needle Roller Bearing Cage Assemblies Thrust Bearing
Needle Roller Bearing Cage Assemblies Thrust Bearing



Needle Roller Bearing Cage Assemblies Thrust Bearing
Needle Roller Bearing Cage Assemblies Thrust Bearing
Needle Roller Bearing Cage Assemblies Thrust Bearing



Product Parameters

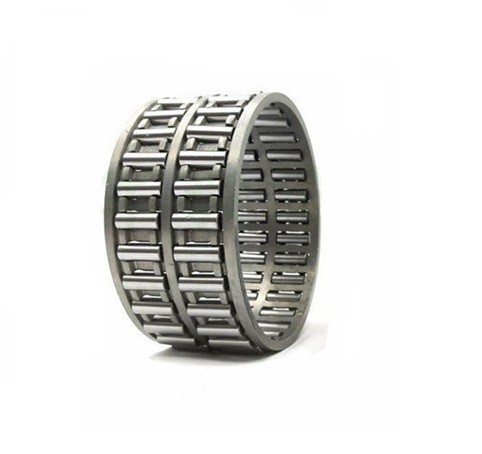

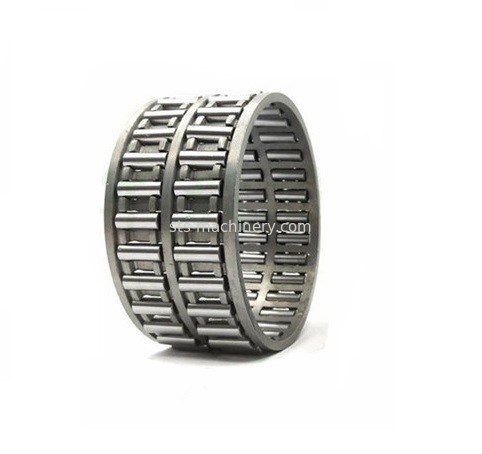

Needle roller and cage assemblies are single or double row units comprising cages and needle rollers.

We can offer K,KZK,KBK,KT..EG,KTV..EG,WJC and customized series.



Needle Roller Bearing Cage Assemblies Thrust Bearing
Needle Roller Bearing Cage Assemblies Thrust Bearing
Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Limited Speed Mass
Fw Ew Bc C Co rpm kg
K 3X5X7 TN 3 5 7 1.232 1.032 40000 0.0003
K 3X5X9 TN 3 5 9 1.368 1.184 40000 0.0004
K 3X6X7 TN 3 6 7 1.144 0.776 37600 0.0004
K 4X7X7 TN 4 7 7 1.392 1.016 34400 0.0005
K 4X7X10 TN 4 7 10 1.864 1.472 34400 0.0007
K 5X8X8 TN 5 8 8 1.880 1.536 31200 0.0007
K 5X8X10 TN 5 8 10 2.400 2.120 31200 0.0009
K 6X9X8 TN 6 9 8 2.080 1.824 29600 0.0008
K 6X9X10 TN 6 9 10 2.680 5.520 29600 0.0011
K 6X10X13 TN 6 10 13 3.040 2.480 28000 0.0019
K 7X9X7 TN 7 9 7 1.384 1.416 28000 0.0006
K 7X10X8 7 10 8 2.280 2.120 27200 0.0017
K 8X11X8 8 11 8 2.480 2.400 25600 0.0018
K 8X11X10 8 11 10 3.160 3.280 25600 0.0020
K 8X11X13 8 11 13 4.080 4.640 25600 0.0032
K 8X12X10 8 12 10 4.000 3.760 25600 0.0035
K 9X12X10 9 12 10 3.600 4.000 24800 0.0029
K 9X12X13 9 12 13 4.720 5.680 24800 0.0038
K 10X13X10 10 13 10 3.800 4.400 23200 0.0032
K 10X13X13 10 13 13 4.960 6.240 23200 0.0041
K 10X13X16 10 13 16 5.680 7.440 23200 0.0051
K 10X14X10 10 14 10 4.640 4.800 23200 0.0041
K 10X16X12 10 16 12 6.480 5.760 22400 0.0081
K 12X15X10 12 15 10 3.920 4.880 21600 0.0035
K 12X15X13 12 15 13 5.120 6.800 21600 0.0045
K 12X16X13 12 16 13 6.400 7.520 21600 0.0063
K 12X17X13 12 17 13 7.680 8.320 20800 0.0081
K 12X18X12 12 18 12 8.000 7.920 20800 0.0093
K 14X18X10 14 18 10 5.680 6.800 20000 0.0040
K 14X18X13 14 18 13 6.560 8.080 20000 0.0065
K 14X18X15 14 18 15 7.600 9.840 20000 0.0083
K 14X18X17 14 18 17 8.640 11.520 20000 0.0080
K 14X20X12 14 20 12 8.240 8.480 19200 0.0085
K 15X18X17 15 18 17 6.400 9.680 20000 0.0072
K 15X19X10 15 19 10 6.000 7.360 19200 0.0050
K 15X19X13 15 19 13 6.800 8.720 19200 0.0070
K 15X19X17 15 19 17 9.040 12.480 19200 0.0095
K 15X20X13 15 20 13 7.920 9.200 19200 0.0070
K 15X21X15 15 21 15 11.440 13.120 19200 0.0110
K 15X21X21 15 21 21 15.520 19.440 19200 0.0170
K 16X20X10 16 20 10 6.240 7.920 19200 0.0055
K 16X20X13 16 20 13 7.120 9.440 19200 0.0075
K 16X20X17 16 20 17 9.360 13.440 19200 0.0100
K 16X22X12 16 22 12 9.200 10.000 18400 0.0100
K 16X22X16 16 22 16 11.840 14.000 18400 0.0120
K 16X22X20 16 22 20 16.640 18.240 18400 0.0170
K 16X24X20 16 24 20 17.120 18.800 17600 0.0220
K 17X21X10 17 21 10 6.480 8.480 18400 0.0055
K 17X21X13 17 21 13 8.320 11.680 18400 0.0065
K 17X21X17 17 21 17 9.760 14.320 18400 0.0095
K 18X22X10 18 22 10 6.720 9.040 17600 0.0060
K 18X22X13 18 22 13 7.360 10.160 17600 0.0080
K 18X22X17 18 22 17 9.680 14.400 17600 0.0110
K 18X24X12 18 24 12 10.240 11.920 17600 0.0120
K 18X24X13 18 24 13 10.480 12.240 17600 0.0130
K 18X25X22 18 25 22 18.480 23.200 17600 0.0230
K 19X23X13 19 23 13 7.600 10.800 17600 0.0080
K 19X23X17 19 23 17 10.000 15.360 17600 0.0110
K 20X24X10 20 24 10 7.120 10.080 16800 0.0065
K 20X24X13 20 24 13 7.840 11.440 16800 0.0090
K 20X24X17 20 24 17 10.320 16.320 16800 0.0120
K 20X26X12 20 26 12 10.720 12.960 16800 0.0110
K 20X26X13 20 26 13 11.520 14.320 16800 0.0120
K 20X26X17 20 26 17 15.360 20.800 16800 0.0160
K 20X26X20 20 26 20 16.880 23.200 16800 0.0190
K 20X28X16 20 28 16 15.840 17.920 16000 0.0200
K 20X28X20 20 28 20 19.120 22.800 16000 0.0270
K 20X28X25 20 28 25 24.400 31.200 16000 0.0320
K 20X30X30 20 30 30 28.400 33.200 16000 0.0490
K 21X25X13 21 25 13 8.080 12.080 16800 0.0090
K 22X26X10 22 26 10 7.280 10.720 16000 0.0075
K 22X26X13 22 26 13 8.320 12.720 16000 0.0095
K 22X26X17 22 26 17 10.960 18.160 16000 0.0120
K 22X28X17 22 28 17 15.520 21.600 16000 0.0180
K 22X29X16 22 29 16 16.000 20.400 15200 0.0160
K 22X30X15 22 30 15 16.080 18.720 15200 0.0260
K 22X32X24 22 32 24 27.200 32.000 14400 0.0430
K 23X35X16 23 35 16 19.600 19.120 13600 0.0450
K 24X28X10 24 28 10 7.680 11.840 15200 0.0085
K 24X28X13 24 28 13 8.800 14.080 15200 0.0100
K 24X28X17 24 28 17 11.600 20.000 15200 0.0130
K 24X30X17 24 30 17 15.600 22.000 14400 0.0190
K 24X30X31ZW 24 30 31 22.000 34.800 14400 0.0320
K 25X29X10 25 29 10 7.920 12.320 14400 0.0085
K 25X29X13 25 29 13 9.040 14.720 14400 0.0110
K 25X29X17 25 29 17 11.920 20.800 14400 0.0140
K 25X30X17 25 30 17 14.960 24.000 14000 0.0160
K 25X30X20 25 30 20 17.360 29.200 14400 0.0180
K 25X30X26ZW 25 30 26 17.120 28.400 14400 0.0190
K 25X31X17 25 31 17 15.680 22.800 14400 0.0190
K 25X31X21 25 31 21 19.760 30.400 14400 0.0200
K 25X32X16 25 32 16 16.640 22.000 13600 0.0210
K 25X33X20 25 33 20 22.800 30.400 13600 0.0330
K 25X33X24 25 33 27 27.200 37.600 13600 0.0390
K 25X35X30 25 35 30 37.600 49.600 12800 0.0650
K 26X30X13 26 30 13 9.280 15.360 14400 0.0110
K 26X30X17 26 30 17 12.160 22.000 14400 0.0250
K 26X30X22ZW 26 30 22 12.560 22.800 14400 0.0120
K 28X33X13 28 33 13 12.240 19.360 12800 0.0130
K 28X33X17 28 33 17 15.760 26.800 12800 0.0170
K 28X34X17 28 34 17 17.440 26.800 12800 0.0240
K 25X35X16 25 35 16 17.200 23.600 12800 0.0240
K 25X35X18 25 35 18 19.200 27.200 12800 0.0270
K 28X40X25 28 40 25 36.400 44.000 11200 0.0700
K 30X34X13 30 34 13 9.840 17.360 12000 0.0140
K 30X35X13 30 35 13 12.480 20.400 12000 0.0140
K 30X35X17 30 35 17 15.680 27.200 12000 0.0190
K 30X35X27 30 35 27 24.400 47.200 12000 0.0300
K 30X37X16 30 37 16 18.480 26.800 12000 0.0270
K 30X37X18 30 37 18 20.800 30.800 12000 0.0300
K 30X40X18 30 40 18 25.600 32.000 11200 0.0480
K 30X40X30 30 40 30 39.200 55.200 12000 0.0730
K 32X37X13 32 37 13 12.400 20.400 11200 0.0180
K 32X37X17 32 37 17 15.920 28.400 11200 0.0190
K 32X37X27 32 37 27 24.000 48.000 11200 0.0300
K 32X38X20 32 38 20 21.200 36.000 11200 0.0300
K 32X39X16 32 39 16 19.040 28.400 11200 0.0370
K 32X39X18 32 39 18 21.200 32.800 11200 0.0310
K 32X40X25 32 40 25 30.000 46.400 11200 0.0490
K 32X40X42ZW 32 40 42 40.000 67.200 11200 0.0970
K 32X46X32 32 46 32 52.800 67.200 10400 0.1190
K 35X40X13 35 40 13 12.960 22.400 10400 0.0190
K 35X40X17 35 40 17 16.640 30.800 10400 0.0210
K 35X40X25 35 40 25 23.600 48.000 10400 0.0310
K 35X40X27 35 40 27 20.000 38.800 10400 0.0410
K 35X42X16 35 42 16 19.520 30.000 10400 0.0340
K 35X42X18 35 42 18 22.000 34.400 10400 0.0340
K 35X42X20 35 42 20 21.000 39.200 10400 0.0370
K 35X42X30 35 42 30 31.200 54.400 10400 0.0670
K 35X45X20 35 45 20 29.600 40.000 9600 0.0560
K 35X45X30 35 45 30 42.400 63.200 9600 0.0800
K 37X42X17 37 42 17 17.920 34.400 9600 0.0220
K 38X43X17 38 43 17 16.400 30.800 9600 0.0290
K 38X43X27 38 43 27 25.200 54.400 9600 0.0430
K 38X46X20 38 46 20 28.400 45.600 9600 0.0470
K 38X46X32 38 46 32 44.000 79.200 9600 0.0760
K 39X44X26ZW 39 44 26 22.000 44.800 9600 0.0450
K 40X45X13 40 45 13 14.080 26.000 9600 0.0220
K 40X45X17 40 45 17 17.120 33.200 9600 0.0310
K 40X45X27 40 45 27 26.400 58.400 9600 0.0460
K 40X47X18 40 47 18 23.600 40.000 8800 0.0390
K 40X47X20 40 47 20 26.000 45.600 8800 0.0420
K 40X48X20 40 48 20 28.800 47.200 8800 0.0490
K 42X47X13 42 47 13 14.240 26.800 8800 0.0180
K 42X47X17 42 47 17 17.360 34.400 8800 0.0320
K 42X47X30ZW 42 47 30 26.800 60.800 8800 0.0540
K 42X50X20 42 50 20 28.000 45.600 8800 0.0530
K 43X48X17 43 48 17 17.280 34.400 8800 0.0300
K 43X48X27 43 48 27 26.800 60.000 8800 0.0500
K 45X50X17 45 50 17 18.000 36.800 8000 0.0340
K 45X50X27 45 50 27 27.600 64.000 8000 0.0510
K 45X52X18 45 52 18 25.200 45.600 8000 0.0420
K 45X53X20 45 53 20 31.200 53.600 8000 0.0550
K 45X53X21 45 53 21 30.800 53.600 8000 0.0600
K 45X53X28 45 53 28 41.600 78.400 8000 0.0810
K 45X59X18 45 59 18 35.200 43.200 7600 0.1050
K 45X59X32 45 59 32 58.400 82.400 7600 0.1480
K 47X52X17 47 52 17 18.640 39.200 8000 0.0350
K 47X52X27 47 52 27 28.000 66.400 8000 0.0510
K 50X55X13.5 50 55 13.5 14.560 29.200 7600 0.0300
K 50X55X17 50 55 17 17.680 37.600 7600 0.0350
K 50X55X20 50 55 20 21.200 48.000 7600 0.0430
K 50X55X30 50 55 30 31.200 77.600 7600 0.0650
K 50X57X18 50 57 18 26.800 50.400 7200 0.0470
K 50X58X20 50 58 20 28.400 49.600 7200 0.0750
K 50X58X25 50 58 25 35.200 64.800 7200 0.0900
K 52X57X12 52 57 12 14.400 29.200 7200 0.0240
K 55X60X20 55 60 20 22.800 52.800 6800 0.0400
K 55X60X27 55 60 27 30.400 77.600 6800 0.0600
K 55X60X30 55 60 30 32.800 86.400 6800 0.0710
K 55X62X18 55 62 18 28.400 56.000 6800 0.0520
K 55X63X20 55 63 20 32.000 59.200 6800 0.0670
K 55X63X25 55 63 25 40.800 80.800 6800 0.0800
K 55X63X32 55 63 32 49.600 104.000 6800 0.1020
K 58X65X18 58 65 18 28.000 56.000 6400 0.0520
K 58X65X36ZW 58 65 36 85.600 10.720 6400 0.1270
K 60X65X20 60 65 20 23.600 57.600 6400 0.0520
K 60X65X30 60 65 30 34.000 92.800 6400 0.0770
K 60X66X33ZW 60 66 33 36.800 89.600 6400 0.1040
K 60X66X40ZW 60 66 40 46.400 120.800 6400 0.1160
K 60X68X20 60 62 20 24.800 68.000 6000 0.0710
K 60X68X23 60 62 23 39.600 80.800 6000 0.0940
K 60X68X25 60 62 25 42.400 88.800 6000 0.0890
K 60X68X30ZW 60 62 30 35.600 70.400 6000 0.1290
K 60X75X42 60 75 42 94.400 159.200 6000 0.2400
K 62X70X40ZW 62 70 40 52.800 116.800 6000 0.1740
K 64X70X16 64 70 16 22.400 48.000 6000 0.0530
K 65X70X20 65 70 20 24.400 61.600 6000 0.0560
K 65X70X30 65 70 30 32.500 99.200 6000 0.0830
K 65X73X23 65 73 23 36.800 75.200 5600 0.1080
K 65X73X30 65 73 30 45.600 98.400 5600 0.1410
K 68X74X20 68 74 20 28.400 67.200 5600 0.0710
K 68X74X30 68 74 30 37.200 94.400 5600 0.1000
K 68X74X35ZW 68 74 35 38.800 100.000 5600 0.1200
K 70X76X20 70 76 20 28.800 68.800 5200 0.0710
K 70X76X30 70 76 30 41.600 111.200 5200 0.1100
K 70X78X30 70 78 30 48.000 108.000 5200 0.1480
K 72X80X20 72 80 20 33.200 68.000 5200 0.0980
K 73X79X20 73 79 20 29.600 72.000 5200 0.0750
K 75X81X20 75 81 20 30.000 75.200 5200 0.0790
K 75X81X30 75 81 30 41.600 114.400 5200 0.1140
K 75X83X23 75 83 23 40.000 87.200 4800 0.1240
K 75X83X30 75 83 30 49.600 114.400 4800 0.1470
K 75X83X35ZW 75 83 35 50.400 117.600 4800 0.1820
K 75X83X40ZW 75 83 40 58.400 141.600 4800 0.2110
K 80X86X20 80 86 20 30.800 78.400 4800 0.0600
K 80X88X30 80 88 30 56.800 140.800 4800 0.1380
K 80X88X40ZW 80 88 40 60.800 153.600 4800 0.2270
K 80X88X46ZW 80 88 46 70.400 184.800 4800 0.2600
K 85X92X20 85 92 20 35.600 86.400 4400 0.1020
K 90X97X20 90 97 20 36.000 90.400 4000 0.1090
K 90X98X27 90 98 27 48.800 120.000 4000 0.1500
K 90X98X30 90 98 30 54.400 137.600 4000 0.1720
K 95X103X30 95 103 30 55.200 144.000 3920 0.1650
K 95X103X40ZW 95 103 40 66.400 182.400 3920 0.2660
K 100X107X21 100 107 21 38.400 101.600 3760 0.1200
K 100X108X27 100 108 27 45.600 114.400 3760 0.1850
K 100X108X30 100 108 30 56.800 150.400 3760 0.1800
K 105X112X21 105 112 21 38.000 101.600 3600 0.1290
K 110X117X24 110 117 24 44.800 126.400 3440 0.1720
K 110X118X30 110 118 30 62.400 175.200 3440 0.2170
K 115X123X27 115 123 27 50.400 136.000 3280 0.2000
K 120X127X24 120 127 24 47.200 139.200 3200 0.1650
K 125X133X35 125 133 35 68.800 208.000 3040 0.2750
K 130X137X24 130 137 24 48.800 148.800 2960 0.1700
K 135X143X35 135 143 35 72.800 232.000 2800 0.3000
K 145X153X26 145 153 26 59.200 204.000 2640 0.2620
K 150X160X46 150 160 46 117.600 376.000 2560 0.5700
K 155X163X26 155 163 26 60.000 188.800 2480 0.2650
K 160X170X46 160 170 46 121.600 408.000 2400 0.5500
K 165X173X26 165 173 26 64.800 212.000 2320 0.3200
K 175X183X32 175 183 32 79.200 280.000 2160 0.4000
K 185X195X37 185 195 37 102.400 340.000 2080 0.6070
K 195X205X37 195 205 37 106.400 360.000 2000 0.6200
K 210X220X42 210 220 42 123.200 448.000 1840 0.7400
K 220X230X42 220 230 42 126.400 472.000 1760 0.7900
K 240X250X42 240 250 42 131.200 504.000 1600 0.8500
K 265X280X50 265 280 50 204.000 688.000 1440 1.8100
Packaging & Shipping

Needle Roller Bearing Cage Assemblies Thrust Bearing

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.

Contact Details

WhatsApp : +8618321958125
