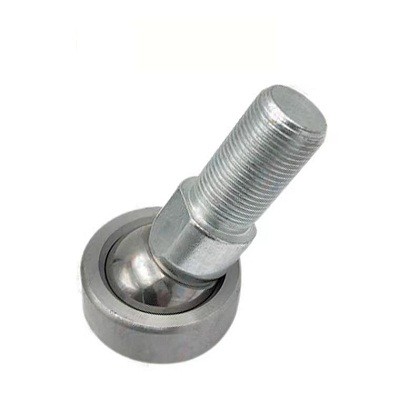

SQD Series Zinc Alloy Ball Joint Rod Ends Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: SQD
Minimum Order Quantity: 1
Price: 1-10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Ball joints with metric and inch threads are commonly used on control linkages in automotive, marine, and construction and industrial equipment applications.

There are DIN,SAE and ISO standard ball joints, you can consult us in regarding these dimensional and technical data.

SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
Product Parameters

Technical specification

Housing,high strength zinc alloy.

Alternative,steel housing

Ball,GCr15,equivalent to SAE52100.

Stud,Alloy steel 40Cr,black oxided coated or Zinc plated

SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)



SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)
Bearing No. d d1
6g
d2 L1 L2 L3 L S1 C D R1s a
Load ratings
KN
Mass
kg
min min
SQD5 5 M5x0.8 9 8 8.0 19.0 27.5 7 6.00 16 0.3 25 2.0 0.014
SQD6 6 M6x1.0 10 11 8.8 23.5 33.5 8 6.75 18 0.3 25 3.2 0.021
SQD8 8 M8x1.25 12 12 11.6 28.6 41.0 10 9.00 22 0.3 25 5.7 0.042
SQD10 10 M10x1.25 14 15 14.2 34.2 49.0 11 10.50 26 0.3 25 9.2 0.067
SQD10-1 10 M10x1.5 14 21 14.2 40.2 55.0 11 10.50 26 0.3 25 9.2 0.067
SQD12 12 M12x1.25 17 17 15.1 38.1 55.1 15 12.00 30 0.5 25 14.0 0.108
SQD12-1 12 M12x1.75 17 24 15.1 45.1 62.1 15 12.00 30 0.5 25 14.0 0.108
SQD14 14 M14x1.5 19 22 16.8 51.3 70.7 17 13.50 34 0.5 20 19.0 0.167
SQD14-1 14 M14x2.0 19 28 16.8 57.3 76.7 17 13.50 34 0.5 20 19.0 0.167
SQD16 16 M16x1.5 22 23 18.0 54.5 76.3 19 15.00 38 0.5 20 26.0 0.238
SQD16-1 16 M16x2.0 22 29 18.0 60.5 82.3 19 15.00 38 0.5 20 26.0 0.238
Packaging & Shipping

SQD Series Zinc Alloy Ball Joint Rod Ends  Bearings(SQD5 SQD6 SQD8 SQD10 SQD10-1 SQD12 SQD12-1 SQD14 SQD14-1 SQD16 SQD16-1)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
