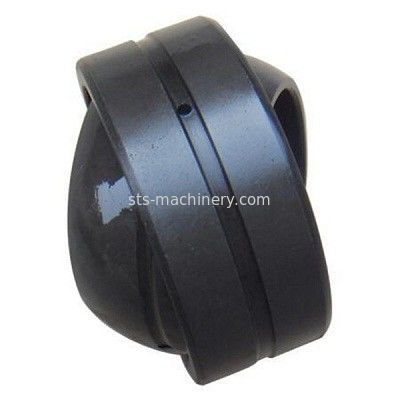

GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: GE...LO
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.

We can supply high quality and almost all types of spherical plain bearing,

  1. Radial Spherical Plain Bearings
  2. Angular Contact Spherical Plain Bearings
  3. Thrust Spherical Plain Bearings
  4. Non-standard Spherical Plain Bearings
The main series including: GE...ES, GE…ES-2RS, GEZ…ES, GEZ…ES-2RS, GEG…ES, GEG…ES-2RS, GE…LO, GE…HO-2RS, GE…UK, GE…FW, GE…UK-2RS, GE…FW-2RS, GAC, GX…T.

Applications:

Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)
GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)
Product Parameters

Technical specification

Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
ANSI Standard* DIN 620* ISO 492*
ABEC 1 P0 Class Normal
ABEC 3 P6 Class 6
ABEC 5 P5 Class 5
ABEC 7 P4 Class 4
ABEC 9 P2 Class 2
Specifications:
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil hole, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.
GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)

GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d D B C dk r1
min
r2
min
α C C0 kg
GE 12 LO 12 22 12 7 18 0.3 0.3 4 10 53 0.022
GE 15 LO 15 26 15 9 22 0.3 0.3 5 16 84 0.031
GE 16 LO 16 28 16 9 23 0.3 0.3 4 17 85 0.035
GE 17 LO 17 30 17 10 25 0.3 0.3 7 21 106 0.044
GE 20 LO 20 35 20 12 29 0.3 0.3 4 30 146 0.071
GE 25 LO 25 42 25 16 35.5 0.6 0.6 4 48 240 0.131
GE 30 LO 30 47 30 18 40.7 0.6 0.6 4 62 310 0.168
GE 32 LO 32 52 32 18 44 0.6 1.0 4 65 328 0.182
GE 35 LO 35 55 35 20 47 0.6 1.0 4 79 399 0.253
GE 40 LO 40 62 40 22 53 0.6 1.0 4 99 495 0.338
GE 45 LO 45 68 45 25 60 0.6 1.0 4 127 637 0.481
GE 50 LO 50 75 50 28 66 0.6 1.0 4 156 780 0.558
GE 60 LO 60 90 60 36 80 1.0 1.0 4 245 1220 1.150
GE 63 LO 63 95 63 36 83 1.0 1.0 4 253 1260 1.250
GE 70 LO 70 105 70 40 92 1.0 1.0 4 313 1560 1.710
GE 80 LO 80 120 80 45 105 1.0 1.0 4 400 2000 2.390
GE 90 LO 90 130 90 50 115 1.0 1.0 4 488 2440 3.210
GE 100 LO 100 150 100 55 130 1.0 1.0 4 607 3030 4.790
GE 110 LO 110 160 110 55 140 1.0 1.0 4 654 3270 5.780
GE 125 LO 125 180 125 70 160 1.0 1.0 4 950 4750 8.490
GE 160 LO 160 230 160 80 200 1.0 1.0 4 1360 6800 16.500
Packaging & Shipping



GE...LO Series Radial Spherical Plain Bearings (GE12LO GE15LO GE16LO GE17LO GE20LO GE25LO GE 30LO GE32LO GE35LO GE40LO GE45LO GE50LO)

Our Advantages

1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.


Please contact us immediately if you have any questions.
