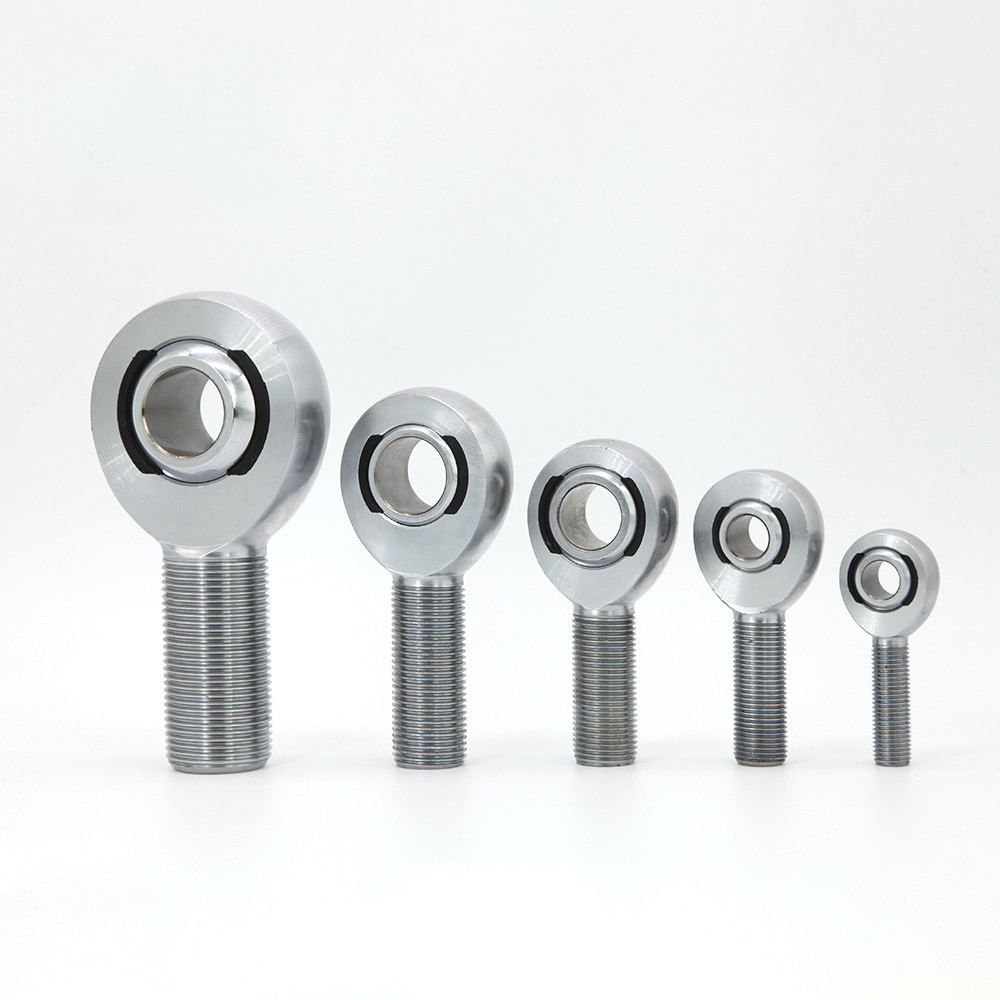

XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 )

Basic Information
Place of Origin: China
Certification: ISO
Model Number: XM
Minimum Order Quantity: 1
Price: 1-20
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union

Product Description

A rod end bearing is a common type of mechanical joint used on the ends of control rods. The steering columns in most cars, trucks and other vehicles.
Also known as a heim joint in the United States or a rose joint in the United Kingdom.

Rod end bearings are used on the ends of cylinders, linkages, rods, and shafts to take up angular misalignment between connected parts. In the automotive industry, rod end bearings are used in steering knuckles and transmission linkages.


Applications:
  • agriculture
  • construction
  • forklift trucks
  • material handling
  • metals
  • mining
  • railways
  • trucks
  • wind energy
XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 XM10-12 XM12 XM12-14 XM14)XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 XM10-12 XM12 XM12-14 XM14)
Product Parameters

Technical specification

BALL
52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
RACE
Nylon/PTFE, Self-Lubricating, Self-Sealing
BODY
Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance



XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 ) 2

XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 XM10-12 XM12 XM12-14 XM14)
XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 XM10-12 XM12 XM12-14 XM14)
XM Chromoly Steel Series Male Rod Ends/Heim Joint/ Rose Joint/ Bearings( XM3 XM4 XM5 XM6 XM7 XM8 XM8-10 XM8-12 XM10 XM10-12 XM12 XM12-14 XM14)

Right

Hand

Left Hand



B

+ .0015

- .0005



W

± .005



T

± .005



A

± .015



D

± .010



Ball

Dia.

Ref.



C

+ .062

- .031



Thread

UNF-3A



Misalign.

Angle



Ult. Radial

Static

Load Lbs.



Mass

Lbs.



XMR3 XML3 0.1900 0.312 0.250 1.250 0.625 0.437 0.750 10-32 13 2,851

0.03



XMR4 XML4 0.2500 0.375 0.281 1.562 0.75 0.5 1 1/4-28 16 5,260 0.04
XMR4-5 XML4-5 0.25 0.375 0.281 1.875 0.875 0.5 1.25 5/16-24 13 8,452 0.07
XMR4-5 XML4-5 0.25 0.375 0.281 1.875 0.875 0.500 1.25 5/16-24 13 8,452 0.07
XMR5 XML5 0.3125 0.437 0.344 1.875 0.875 0.625 1.25 5/16-24 14 7,639 0.07
XMR5-6 XML5-6 0.3125 0.437 0.344 1.938 1 0.625 1.25 3/8-24 12 10,382 0.11
XMR6 XML6 0.375 0.5 0.406 1.938 1 0.719 1.25 3/8-24 12 9,544 0.11
XMR6-7 XML6-7 0.375 0.5 0.406 2.125 1.125 0.719 1.375 7/16-20 10 14,006 0.15
XMR7 XML7 0.4375 0.562 0.437 2.125 1.125 0.812 1.375 7/16-20 14 10,285 0.15
XMR7-8 XML7-8 0.4375 0.562 0.437 2.438 1.312 0.812 1.5 1/2-20 12 18,761 0.24
XMR8 XML8 0.5 0.625 0.5 2.438 1.312 0.937 1.5 1/2-20 12 16,238 0.24
XMR8-10 XML8-10 0.5 0.625 0.5 2.625 1.5 0.937 1.625 5/8-18 10 23,542 0.36
XMR8-12 XML8-12 0.5 0.75 0.562 2.875 1.75 0.937 1.75 3/4-16 16 32,457 0.42
XMR10 XML10 0.625 0.75 0.562 2.625 1.5 1.125 1.625 5/8-18 16 17,955 0.36
XMR10-12 XML10-12 0.625 0.75 0.562 2.875 1.75 1.125 1.75 3/4-16 13 31,680 0.57
XMR12 XML12 0.75 0.875 0.687 2.875 1.75 1.312 1.75 3/4-16 14 28,081 0.57
XMR12-14 XML12-14 0.75 0.875 0.687 3.375 2 1.312 1.875 7/8-14 12 43,486 0.88
XMR14 XML14 0.875 0.875 0.765 3.375 2 1.375 2 7/8-14 7 45,051 0.88
