HYDRAULIC ROD ENDS ( 80KI1149 100KI1149 125KI1149 160KI1149 200KI1149)

Basic Information
Place of Origin: China
Certification: ISO
Model Number: KI1149
Minimum Order Quantity: 1
Price: 10
Packaging Details: General Export Packing
Delivery Time: In stock
Payment Terms: T/T, Western Union, PayPal
Materials: Body Is Made Of Carbon Steel, Insert Bearing Is Made Of High Chrome Bearing Steel. Sliding Contact Surfaces: Steel Vs. Steel
Heat Treatment: Body Surface Is Phosphorized Features Of Structure: The Unit Consists Of A Body And A Spherical Plain Bearing GE..ES. With Bolts For Fastening Thread. With Oil Nipple.
Properties: Good Wearability, Corrosion Resistance, Self-alignment, Heavy Load Capacity.

Product Description

Hydraulic Rod Ends are designed for especially high forces and are used for hydraulic cylinders.


Applications:

Mining & quarrying, Heavy construction, Motorsport, Offshore oil & gas, Marine.

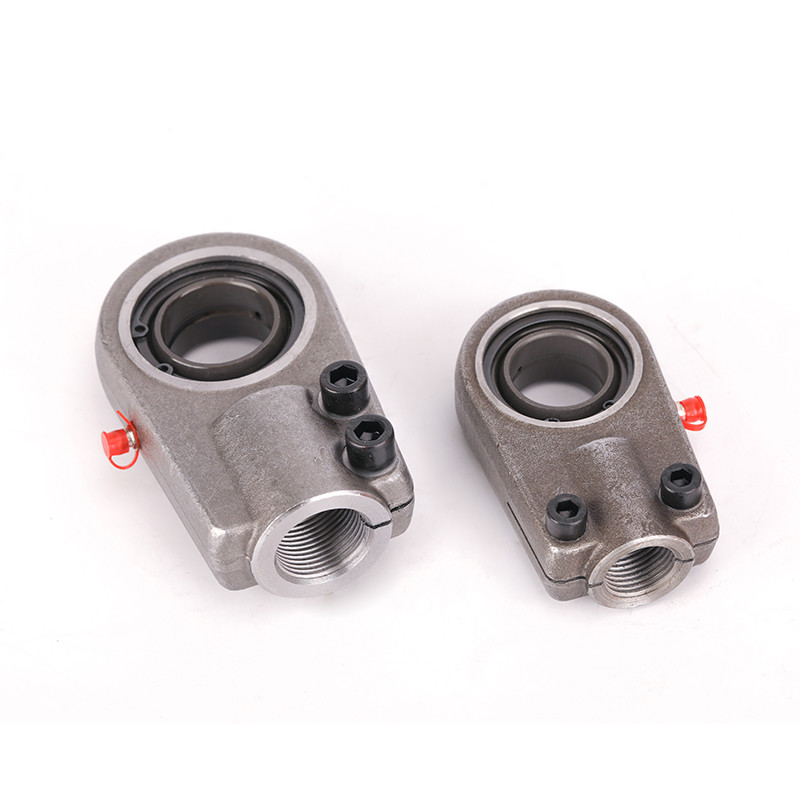

HYDRAULIC ROD ENDS ( 80KI1149 100KI1149 125KI1149 160KI1149 200KI1149) 0



GIHO-K...DO / K11149
Specification:
-Rod ends housing with right or left-hand female thread.
-It is made up of a radial spherical  plain bearing
GE... ES or GE... ES 2RS and rod end housing.
-With locking slot and nut.
-Rod end housing with a lubricating hole or grease nipple.

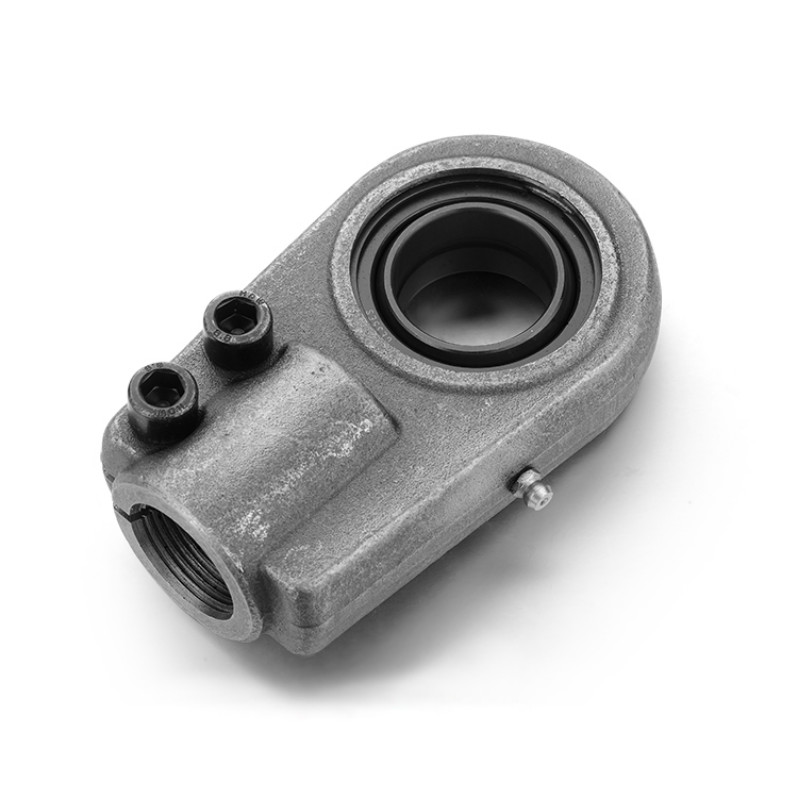

HYDRAULIC ROD ENDS ( 80KI1149 100KI1149 125KI1149 160KI1149 200KI1149) 1HYDRAULIC ROD ENDS ( 80KI1149 100KI1149 125KI1149 160KI1149 200KI1149) 2

Bearing No. Dimensions (mm) Load ratings (KN) Mass
d d3
6H
d4 L3
min
B C1 d2 L7
min
h1 L4 d5 d1 C2 a C C0 kg
GIHO-K 12 DO 12 M10x1.25 17 15 10 8 35 16 42 59.5 40 15.0 13 11 10.8 17.0 0.12
GIHO-K 16 DO 16 M12x1.25 21 17 14 11 45 20 48 70.5 45 20.7 13 10 21.1 28.5 0.22
GIHO-K 20 DO 20 M14x1.5 25 19 16 13 55 25 58 85.5 55 24.2 17 9 30.0 42.5 0.43
GIHO-K 25 DO 25 M16x1.5 30 23 20 17 65 30 68 100.5 62 29.3 17 7 48.0 67.0 0.67
GIHO-K 30 DO 30 M20x1.5 36 29 22 19 80 35 85 125.0 77 34.2 19 6 62.0 108.0 1.25
GIHO-K 40 DO 40 M27x2.0 45 37 28 23 100 45 105 155.0 90 45.0 23 7 100.0 156.0 2.16
GIHO-K 50 DO 50 M33x2.0 55 46 35 30 120 58 130 190.0 105 55.9 30 6 156.0 245.0 3.90
GIHO-K 60 DO 60 M42x2.0 68 57 44 38 160 68 150 230.0 134 66.8 38 6 245.0 380.0 7.15
GIHO-K 80 DO 80 M48x2.0 90 64 55 47 205 82 185 287.5 156 89.4 47 6 400.0 585.0 15.00
GIHO-K 10 0DO 100 M64x3.0 110 86 70 55 240 116 240 360.0 190 109.5 55 7 610.0 865.0 27.30
